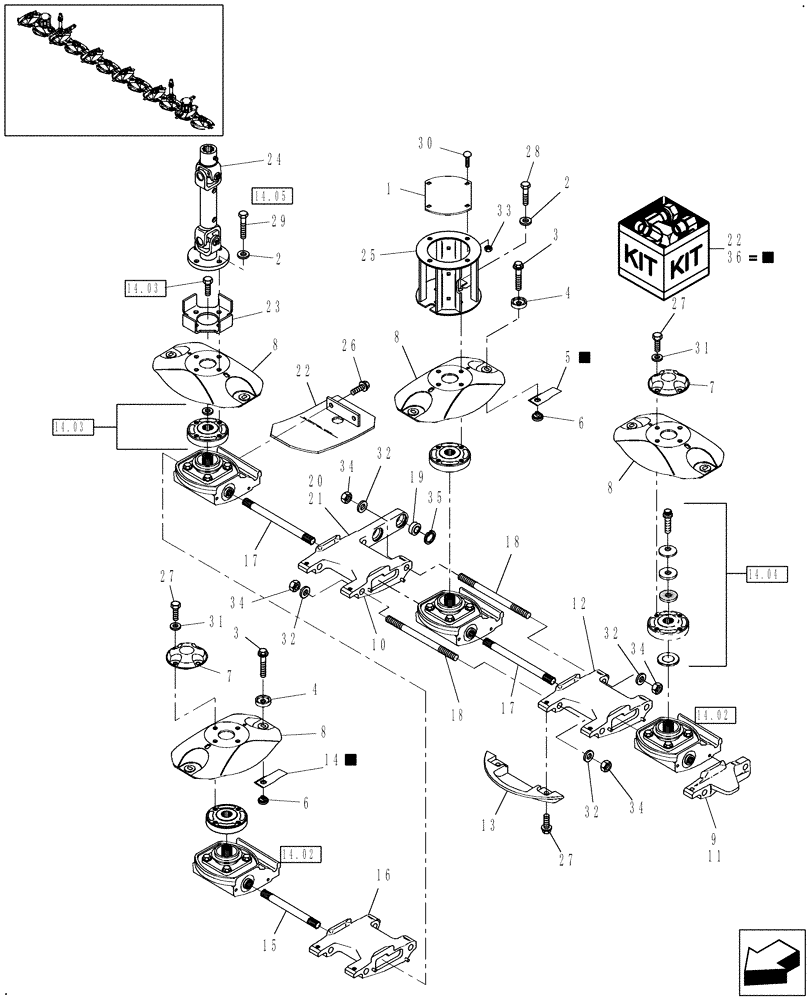

Запчасти Case IH DC162F (14.01) - CUTTERBAR (14) - CROP CUTTING

1

86631895

COVER

2шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

16шт.

3

86515925

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

24шт.

4

86510384

CAP

24шт.

5

86621872

BLADE

CW, 14° Twist

12шт.

Standard equipment.

1шт.

5

86532078

KNIFE

Straight

1шт.

5

87029587

BLADE

CW, 14° Twist, Over-serrated

1шт.

5

9847683

BLADE,Knife CW

CW, 7° Twist

1шт.

6

87725066

NUT

24шт.

7

87581143

CAP

See Fig. 14.03

8шт.

8

87646406

DISC

12шт.

8

87528245

KIT

CW Crop Lifter

1шт.

8

87528249

KIT

CCW Crop Lifter

1шт.

9

86629691

ARM

LH, Includes Ref. 10 (2)

1шт.

10

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

20шт.

11

86629690

ARM

RH, Includes Ref. 10 (2)

1шт.

12

87044109

SPACER

Includes Ref. 10 (4)

2шт.

13

87047845

STONEGUARD

12шт.

14

86621873

BLADE

CCW, 14° Twist

1шт.

Standard equipment.

1шт.

14

87029588

BLADE

CCW, 14° Twist, Over-serrated

1шт.

14

9847684

BLADE,Knife CCW

CCW, 7° Twist

1шт.

15

86519042

SHAFT

7шт.

16

87044107

SPACER

7шт.

17

86519039

SHAFT

4шт.

18

86501934

THREADED ROD

24шт.

19

365820

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

Spherical

4шт.

20

87057898

ARM ASSY.

LH, Includes Ref. 10 (4)

1шт.

21

87057901

ARM ASSY.

RH, Includes Ref. 10 (4)

1шт.

22

87047426

SKID/SHOE

12шт.

22

84141953

SKID/SHOE

HD HT, For Abrasive Soil Conditions

1шт.

22

87622885

SHOE

High Skid

1шт.

22

715289026

DIA KIT, HARVESTER

High Stubble, contains 8 of Ref. 22 (87622885) and instructions

1шт.

23

86629689

DISC

2шт.

24

86565923

SHAFT

2шт.

25

87040772

DRUM

2шт.

26

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

24шт.

27

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

56шт.

28

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

8шт.

29

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

8шт.

30

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

31

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

32шт.

32

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

48шт.

33

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

34

86518194

NUT,3/4"-10, G8

48шт.

35

271429

SNAP RING,1.625", Int, #162

4шт.

36

86624751

KNIFE SET

Includes (10) 14° CW Blades, Ref 6 & (10) 14° CCW Blades, Ref 24

1шт.

36

86624752

KNIFE SET

Includes (16) 14° CW Blades, Ref 6 & (16) 14° CCW Blades, Ref 24

1шт.

36

87037027

SET OF BLADES

Includes (16) 14° CW OS Blades, Ref 6 & (16) 14° CCW OS Blades, Ref 24

1шт.
