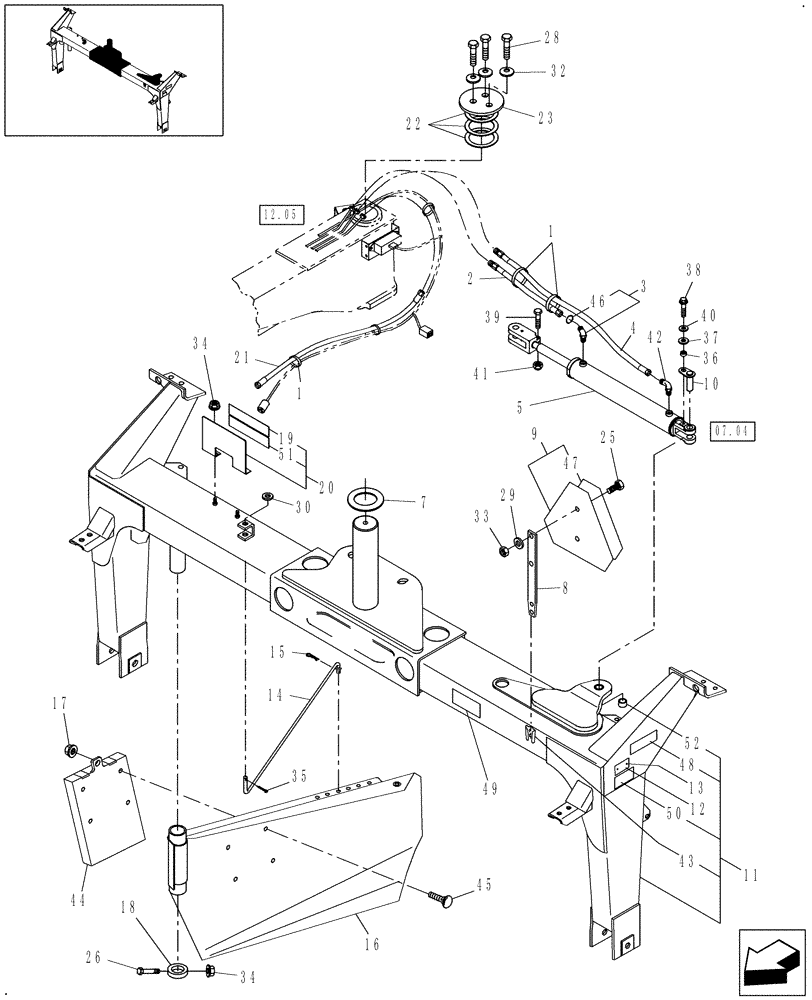

Запчасти Case IH DC162F (12.08) - TRAILFRAME, REAR (12) - MAIN FRAME

1

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

5шт.

2

86539890

HOSE

1шт.

3

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

1шт.

4

86539891

HOSE

1шт.

5

87515542

CYLINDER,Double Acting, 38.1mm Rod, 484.38mm Stroke

Swing, Monarch

1шт.

87515542R

REMAN-HYD CYLINDER

DC162F (10/08-)

1шт.

87515542C

CORE-HYD CYLINDER

Return Number

1шт.

7

86568174

WASHER

Nylon, M8

1шт.

8

86535159

ARM

SMV Spade Mount

1шт.

9

86547710

EMBLEM

KIT SMV Emblem

1шт.

10

86603686

PIN,25.4mm OD x 90mm L

2шт.

11

87055692

FRAME ASSY

1шт.

12

NS

NOT SERVICED

Serial Number Plate

1шт.

13

86598785

SELF-TAP SCREW

Rd Hd, Stainless Steel, #4 x 1/4"

2шт.

14

86506511

ADJUSTMENT ROD

2шт.

15

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hair

2шт.

16

86627020

SHIELD

LH (Not Shown)

1шт.

16

86627018

SHIELD

RH (Shown)

1шт.

17

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

18

86545693

COLLAR

2шт.

19

86547781

REFLECTOR,RED

Tape, Red, Retroreflective

1шт.

20

86574272

ANGLE

1шт.

21

86539892

HOSE,9.65 mm ID x 1003.3 mm

1шт.

22

86510725

WASHER

6шт.

23

86627704

PLATE

1шт.

25

84821

SCREW,Truss HD, #10 - 24 x 1/2"

2шт.

26

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

2шт.

28

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

3шт.

29

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2шт.

30

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

31

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

1шт.

32

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville

3шт.

33

87304

NUT,#10-24

2шт.

34

86521609

FLANGE NUT,Flg, 3/8"-16

4шт.

35

394818

COTTER PIN,M5 x 25

2шт.

36

103060

BUSHING,9.85mm ID x 15.95mm OD x 7.1mm Thk

Roller

2шт.

37

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

2шт.

38

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

39

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

40

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

41

88902

NUT,3/8"-16

1шт.

42

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

43

38027

BRACKET

SMV (Welded on)

1шт.

44

86613674

CASE

Manual

1шт.

45

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

4шт.

46

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

47

86547711

DECAL,SMV

SMV Emblem Caution

1шт.

48

86547782

REFLECTOR,YELLOW

Yellow Retro Reflective

2шт.

49

86624775

WARNING DECAL

Set Machine To Clear Obstructions, English

1шт.

50

86624774

DANGER DECAL

Header May Fall Rapidly - English

2шт.

50

86625174

DANGER DECAL

DANGER, French

2шт.

50

86625175

DANGER DECAL

DANGER, Spanish

2шт.

51

86547783

REFLECTOR,Tape, Red Orange

Tape, Red/Orange Fluorescent

1шт.

52

787219

SLEEVE

2шт.
