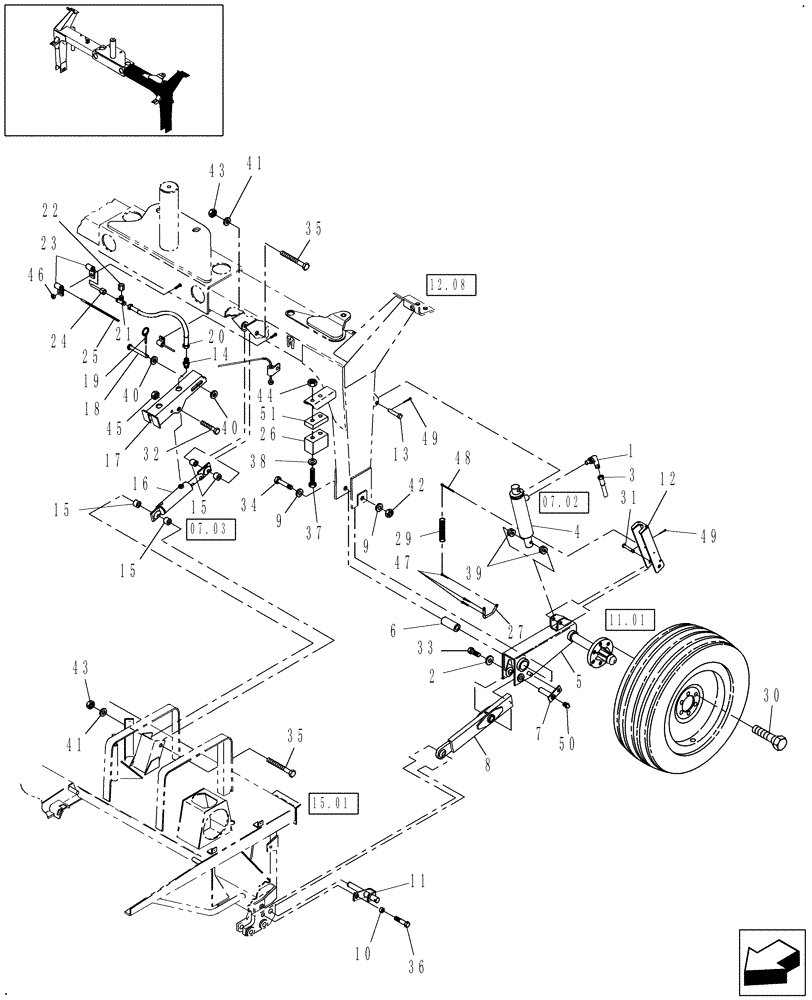

Запчасти Case IH DC162F (12.07) - TRAILFRAME, LH (12) - MAIN FRAME

1

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

2

86516694

WASHER

1шт.

3

86539889

HOSE

1шт.

4

87573687

HYDRAULIC CYLINDER,28.7mm Rod, 251.71mm Stroke

Slave, Monarch

1шт.

Cylinder head will protrude beyond end of barrel.

1шт.

4

87573687R

REMAN-HYD CYLINDER

DC162F (10/08-)

1шт.

87573687C

CORE-HYD CYLINDER

Return Number

1шт.

5

0C

ORDER COMPONENTS

Hub & Spindle

1шт.

6

86632243

SPACER

1шт.

7

86632239

PIN,31.75mm OD x 125.5mm L

1шт.

8

86632234

ARM ASSY.

1шт.

9

25769

WASHER,25.8mm ID x 49.21mm OD x 3.17mm Thk

2шт.

10

167381

SPACER

1шт.

11

86522799

PIN

1шт.

12

87061353

STOP

Cylinder

1шт.

13

86621467

PIN,15.77mm OD x 76.45mm L

1шт.

14

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

15

86599380

SPACER

4шт.

16

87394809

HYDRAULIC CYLINDER,31.75mm Rod, 103.63mm Stroke

Tilt, Monarch

1шт.

87394809R

REMAN-HYD CYLINDER

DC162F (10/08-)

1шт.

87394809C

CORE-HYD CYLINDER

Return Number

1шт.

Cylinder head will protrude beyond end of barrel.

1шт.

17

86627885

CHAMBER

1шт.

18

86510381

PIN

1шт.

19

270184

LINCH PIN,6.35mm OD

1/4" x 1-3/4"

1шт.

20

86539893

HOSE,9.65 mm ID x 571.5 mm

1шт.

21

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

22

262159

CAP,3/4" - 16 Fem JIC

1шт.

23

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

24

86539895

HYD TUBE,12.70 mm OD

1шт.

25

86539896

HYD TUBE,12.70 mm OD

1шт.

26

86519305

BUMPER

1шт.

27

87618910

LATCH

1шт.

28

Reference Not Used

1шт.

29

86539129

SPRING

1шт.

30

86628557

WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS

6шт.

31

87061043

PIN

1шт.

32

86507008

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

1шт.

33

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

1шт.

34

86534764

BOLT,Hex, 1" - 8 x 8", Gr 8

1шт.

35

86508734

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

2шт.

36

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

37

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

38

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

39

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

9шт.

40

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

41

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

42

9849633

NUT,1"-8, G5

1шт.

43

280375

NUT,3/4"-10, GC

2шт.

44

86521610

FLANGE NUT,Flg, 1/2"-13

1шт.

45

9823743

FLANGE NUT,Flg, 5/16"-18

1шт.

46

86521609

FLANGE NUT,Flg, 3/8"-16

3шт.

47

80756

COTTER PIN,1/8" x 3/4"

3шт.

48

87400

COTTER PIN,3/16" x 2"

1шт.

49

80753

COTTER PIN,1/4" x 1 1/2"

2шт.

50

87414

LUBE NIPPLE,1/4" - 28

1шт.

51

84154208

SPACER

Spacer

1шт.
