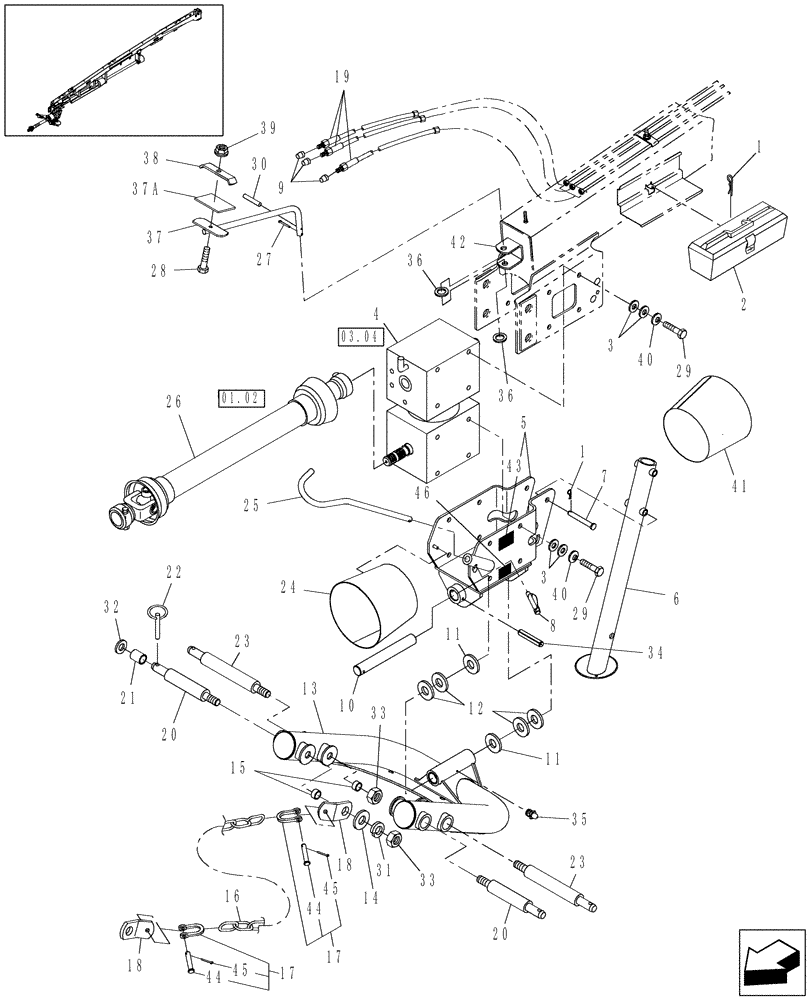

Запчасти Case IH DC162F (12.04) - 2 - POINT SWIVEL HITCH (12) - MAIN FRAME

1

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hair

3шт.

2

5095002

TOOL BOX

1шт.

3

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

Hardened, Special, M16

32шт.

4

86592258

GEARBOX

Swivel

1шт.

4

86592258R

REMAN-GEARBOX

Reman Gearbox

1шт.

4

86592258C

CORE-GEARBOX

Return Number

1шт.

5

86617330

TRUNNION

1шт.

Includes decals.

1шт.

6

86629921

SUPPORT

Used W/Metal Shields

1шт.

7

29851

PIN,15.87mm OD x 128.8mm L

Clevis, 5/8" x 4-9/16", Yoke

2шт.

8

647695

PIN,7.94mm OD

Snap

1шт.

9

116070

CAP

Oil Drain

3шт.

10

86519423

PIN

1шт.

11

233295

WASHER

2шт.

12

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

4/ARшт.

13

86629939

FRAME, HITCH

Hitch

1шт.

Includes decals.

1шт.

14

9801099

WASHER

Hardened

2шт.

15

612121

SPACER

4шт.

Required with Cat. 3 hitches.

1шт.

16

9826529

CHAIN,799mm L

2шт.

17

573120

SHACKLE

4шт.

18

86573217

CONNECTING LINK

4шт.

19

86549016

HOSE,9.65 mm ID x 1727.2 mm

3шт.

20

86578389

PIN

L = 12.46"

2шт.

21

81846686

BUSHING,28.7mm ID x 36.7mm OD x 44.7mm L

See Ref 47

2шт.

22

132757

LINCH PIN,11.11mm OD x 44.45mm L

See Ref 47

2шт.

23

86578390

PIN

L = 15.25"

2шт.

Required with Cat. 3 hitches only. Requires 81846686 Bushing, (2) 612121 Spacer and (2) 9849663 Screw.

1шт.

24

86549399

SHIELD

Includes: Washers & Rivets

1шт.

24

88055

WASHER,0.22" ID x 0.5" OD x 0.05" Thk

3шт.

24

86520136

RIVET,Aluminum, .196” Dia

3шт.

25

86629924

SUPPORT

1шт.

26

0C

ORDER COMPONENTS

Primary PTO

1шт.

27

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

28

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

29

86604182

LOCK BOLT,Spcl, Gr 5

Cap, HH, Special, G5, 5/8"-11 x 1-3/4"

16шт.

30

80777

GROOVED PIN,3/16" x 1 1/4", Type A

1шт.

31

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

2шт.

32

790435

WASHER

2шт.

33

9849633

NUT,1"-8, G5

2шт.

Required with Cat. 3 hitches only. Requires 81846686 Bushing, (2) 612121 Spacer and (2) 9849663 Screw.

1шт.

34

87948

LOCK PIN,7.94mm OD x 63.5mm L, Slotted

1шт.

35

87414

LUBE NIPPLE,1/4" - 28

1шт.

36

9706679

WASHER,0.8" ID x 1.25" OD x 0.14" Thk

2шт.

37

86595948

SUPPORT

1шт.

37a

853891

TAPE

Tape, Black Vinyl Foam - 3" x 144"

1шт.

38

86571694

CLAMP

1шт.

39

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

40

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

16шт.

41

86532561

SHIELD

Includes: Rivets & Washers

1шт.

42

86585606

CLEVIS

(Weld On)

1шт.

43

86536919

DECAL

ATTENTION, Store Jack in Middle of Tingue, English

1шт.

43

86536920

DECAL

ATTENTION, Store Jack in Middle of Tingue, French

1шт.

43

86536921

DECAL

ATTENTION, Store Jack in Middle of Tingue, Spanish

1шт.

44

64162

CLEVIS PIN,12.6mm OD x 54.76mm L

1/2" x 2"

4шт.

45

80755

COTTER PIN,1/8" OD x 1" L

4шт.

46

165109

DECAL

Lubrication

1шт.

47

87298929

KIT

Kit, Replaces Ref 21 & 22

1шт.
