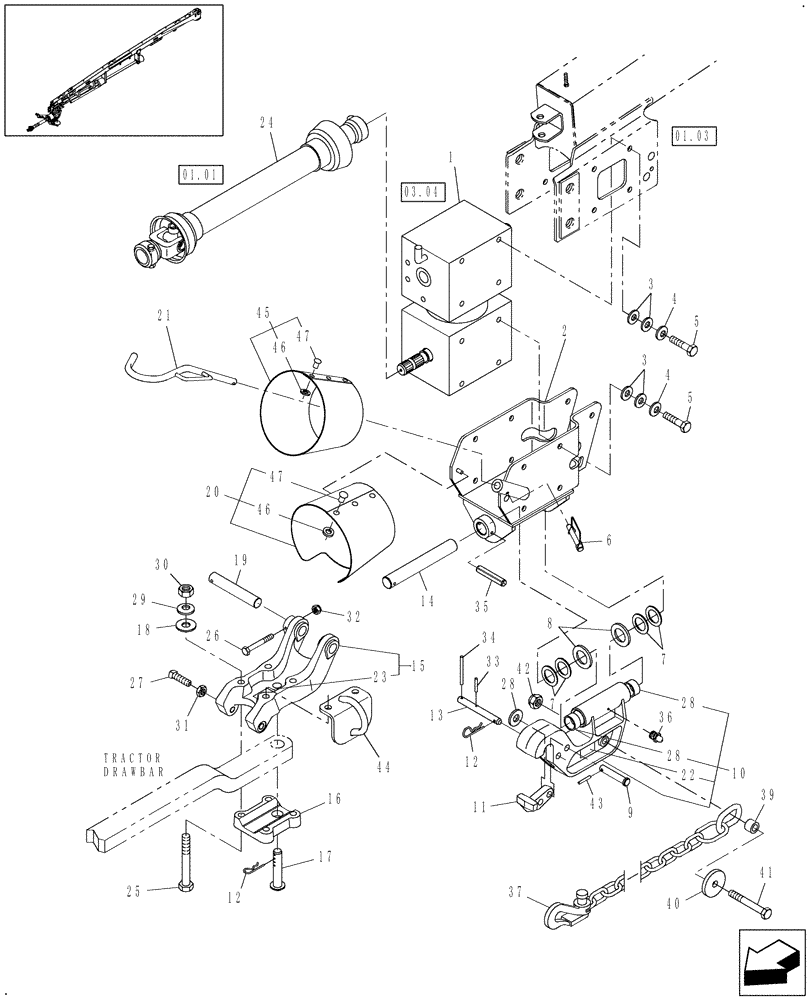

Запчасти Case IH DC162F (12.01) - DRAWBAR HITCH & SAFETY CHAIN (12) - MAIN FRAME

1

86592258

GEARBOX

Swivel

1шт.

1

86592258R

REMAN-GEARBOX

Reman Gearbox

1шт.

1

86592258C

CORE-GEARBOX

Return Number

1шт.

2

86617330

TRUNNION

1шт.

Includes decals.

1шт.

3

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

Hardened, Special, M16

32шт.

4

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

16шт.

5

86604182

LOCK BOLT,Spcl, Gr 5

Cap, HH, Special, G5, 5/8"-11 x 1-3/4"

16шт.

6

647695

PIN,7.94mm OD

Snap

1шт.

7

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

4/ARшт.

8

233295

WASHER

2шт.

9

86510381

PIN

1шт.

10

86617348

HITCH ASSY

1шт.

11

86603572

PAWL

1шт.

12

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hair

2шт.

13

86602275

PIN,19.05mm OD x 175mm L

1шт.

14

86519423

PIN

1шт.

15

86632109

SUPPORT ASSY.

2 Piece Design, With Ref. 44, Includes Decal Ref. 23

1шт.

16

86632111

CLAMP

1шт.

17

846927

PIN

1шт.

18

578092

WASHER,19.4mm ID x 47.6mm OD x 3.43mm Thk

3/4", Hardened

4шт.

19

86625653

PIN

1шт.

20

86602230

SHIELD

1шт.

21

87029373

SUPPORT ASSY.

1шт.

22

86604628

WARNING DECAL

Pawl, English

1шт.

22

86605150

DECAL

WARNING, Paw, French

1шт.

22

86605149

DECAL

WARNING, Pawl, Spanish

1шт.

23

86605697

DECAL

Torque

1шт.

24

0C

ORDER COMPONENTS

PTO, Drawbar Hitch

1шт.

25

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

4шт.

26

86625652

HEX SOC SCREW,3/8" - 16 x 2.50"

Cap, HH, G8, 3/8"-16 x 2-1/2"

1шт.

27

485-17540

SET SCREW,Sq Hd, 3/4"-10 x 2 1/2"

2шт.

28

137913

BUSHING

2шт.

29

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

4шт.

30

280954

NUT,3/4"-10, G5

4шт.

31

84972

JAM NUT,Jam, 3/4"-10, G2

2шт.

32

88902

NUT,3/8"-16

1шт.

33

80777

GROOVED PIN,3/16" x 1 1/4", Type A

1шт.

34

87955

LOCK PIN,6.35mm OD x 76.2mm L, Slotted

1шт.

35

87948

LOCK PIN,7.94mm OD x 63.5mm L, Slotted

1шт.

36

87414

LUBE NIPPLE,1/4" - 28

1шт.

37

850116

CHAIN

Safety Tow

1шт.

39

86607695

SPACER,17.48mm ID x 28.6mm OD x 20.6mm L

Plated

1шт.

40

636422

WASHER,16.66mm ID x 69.85mm OD

1шт.

41

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

42

85700693

NUT,5/8" - 11, Gr C

1шт.

43

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

1шт.

44

86632113

SUPPORT ASSY.

Loop, 2 Piece Design, W/Ref. 15

1шт.

45

86532561

SHIELD

1шт.

46

88055

WASHER,0.22" ID x 0.5" OD x 0.05" Thk

7шт.

47

86520136

RIVET,Aluminum, .196” Dia

7шт.
