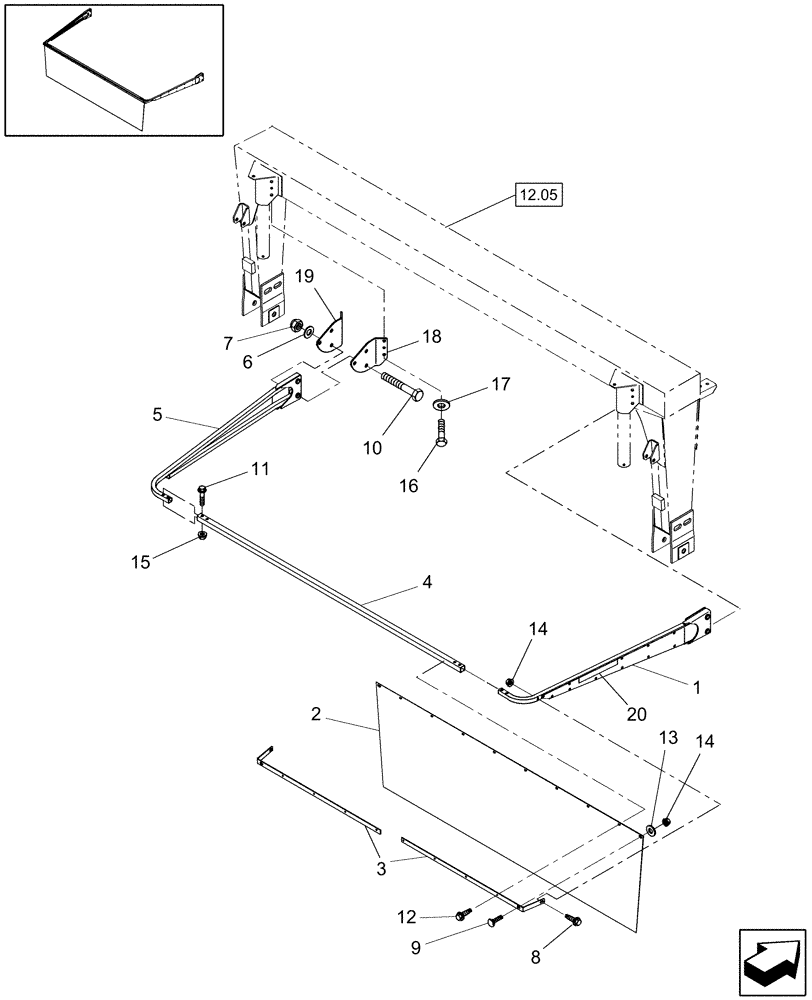

Запчасти Case IH DC162F (08.10) - REAR SKIRT (08) - SHEET METAL

1

86617800

SUPPORT

1шт.

2

87032660

RUBBER

1шт.

3

87346715

PROTECTION STRIP

2шт.

4

86619194

TUBE,2108 mm L

1шт.

5

86617799

SUPPORT

1шт.

6

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

7

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

8

280623

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/2", Gr 5

2шт.

9

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

10

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

4шт.

11

86533830

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

12

86636801

SELF-TAP SCREW

WH, S#3 Pt, #10 x 1"

9шт.

13

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

SAE, 5/16" ID x .065" Thk

2шт.

14

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

15

86521609

FLANGE NUT,Flg, 3/8"-16

4шт.

16

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

8шт.

17

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

8шт.

18

86617792

BRACKET

RH

2шт.

19

86617791

BRACKET

LH

2шт.

20

86547782

REFLECTOR,YELLOW

Tape, Yellow Retro Reflective

2шт.
