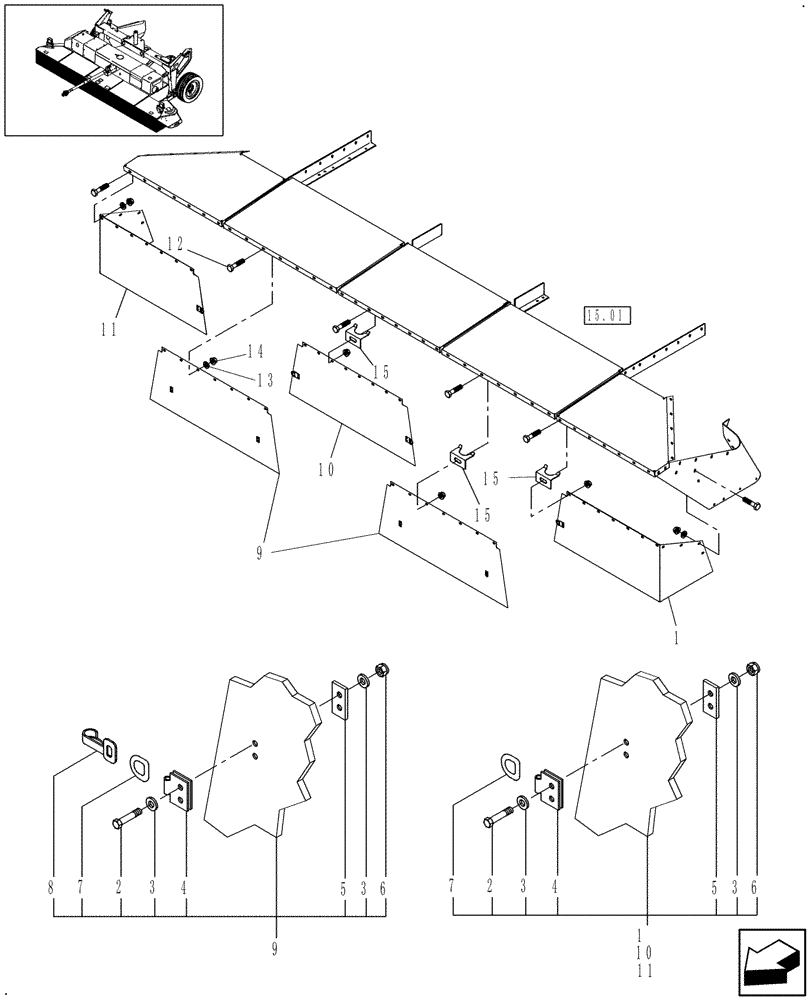

Запчасти Case IH DC162F (08.09) - SKIRT COMPONENTS (08) - SHEET METAL

1

86567130

PROTECTING COVER

Skirt, LH

1шт.

2

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

16шт.

3

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

32шт.

4

9604627

STRAP

8шт.

5

9604628

STRAP

Backup

8шт.

6

280129

NUT,1/4"-20

16шт.

7

9604626

RING

Dee, Welded

4шт.

8

9604631

SPRING CLIP

Snap

4шт.

9

86522272

PROTECTING COVER

Skirt, Hood

2шт.

10

86522269

RUBBER

Skirt, Center

1шт.

11

86567132

PROTECTING COVER

Skirt, RH

1шт.

12

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

44шт.

13

577826

WASHER

SAE, 5/16" ID x .065" Thk

35шт.

14

145458

SERRATED NUT,5/16"-18 GR 5 ZND

44шт.

15

86582727

CLIP

9шт.
