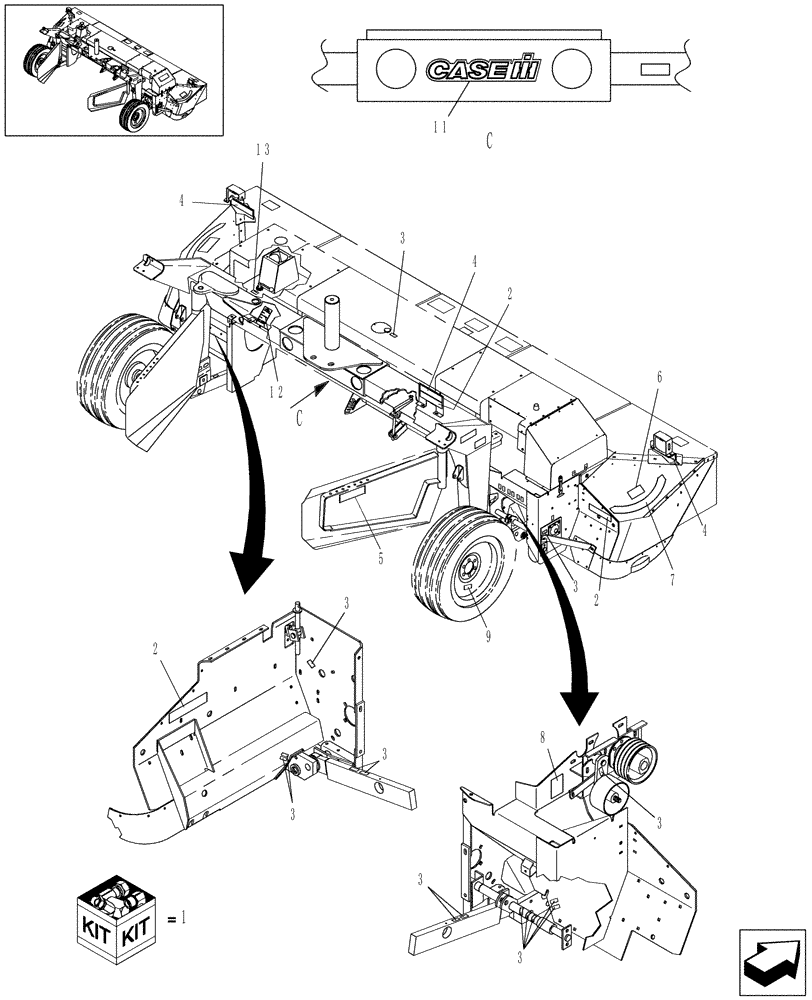

Запчасти Case IH DC162F (08.08) - DECALS, BASE REAR (08) - SHEET METAL

1

87630299

DECAL

Includes: Ref. 2 -13, (See Figures 08.05, 08.06 & 08.07) English

1шт.

2

86547783

REFLECTOR,Tape, Red Orange

Tape, Red/Orange Fluorescent

3шт.

3

165109

DECAL

Lube

13шт.

4

86547781

REFLECTOR,RED

Tape, Red, Retroreflective

3шт.

5

86547782

REFLECTOR,YELLOW

Yellow Retro Reflective

1шт.

6

86628571

WARNING DECAL

Stand Clear, English

1шт.

6

86629518

WARNING DECAL

WARNING, Stand Clear, French

1шт.

6

86629519

WARNING DECAL

WARNING, Stand Clear, English

1шт.

7

80772110

WARNING DECAL

Knife Tip Path, English

1шт.

7

791403

WARNING DECAL

WARNING, Knife Tip Path, French

1шт.

7

86528619

WARNING DECAL

WARNING, Knife Tip Path, Spanish

1шт.

8

86579362

DECAL

Spring

1шт.

9

183155

DECAL

Torque, English

2шт.

9

602232

DECAL

Torque, French

2шт.

9

9804237

DECAL

Torque, Spanish

2шт.

11

87622972

DECAL

CIH Logo

1шт.

12

86554041

DECAL

Operation, Crop Conditioning

1шт.

12

86565597

DECAL

French

1шт.

12

86565596

DECAL

Spanish

1шт.

13

86580849

DECAL

Conditioning

1шт.

13

86580850

DECAL

French

1шт.

13

86580851

DECAL

Spanish

1шт.
