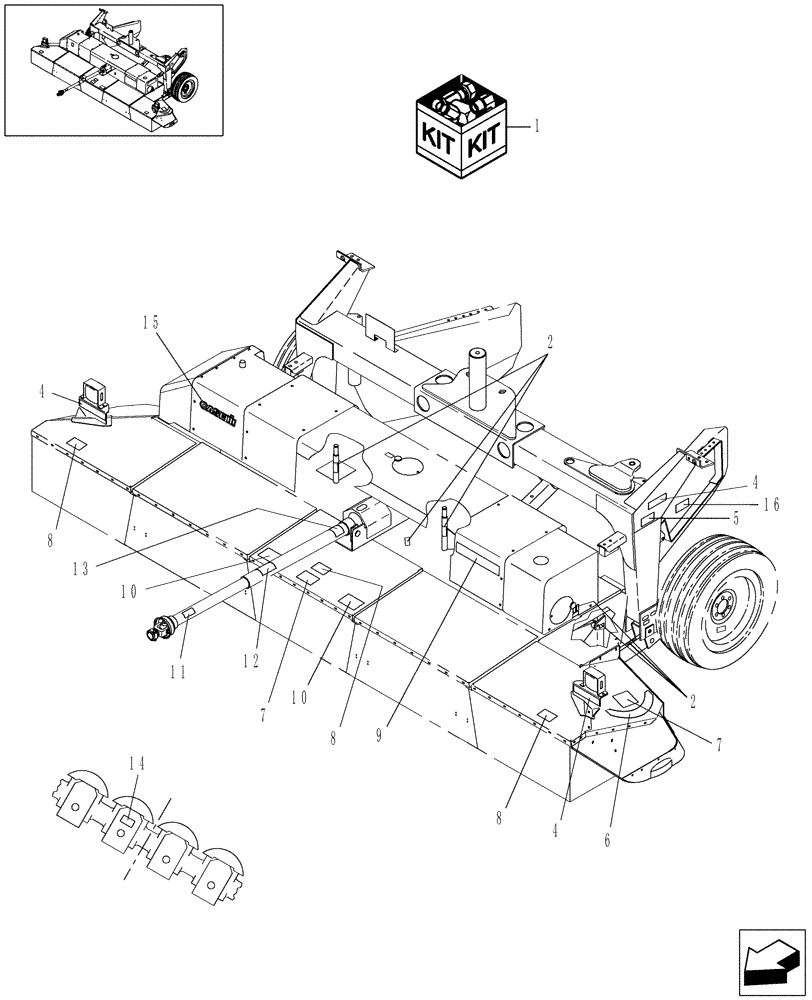

Запчасти Case IH DC162F (08.07) - DECALS, BASE FRONT (08) - SHEET METAL

1

87630299

DECAL

Includes: Ref. 2 - 16, (See Figures 08.05, 08.06 & 08.07, English)

1шт.

2

165109

DECAL

Lube

4шт.

4

86547782

REFLECTOR,YELLOW

Yellow Retro Reflective

4шт.

5

86624774

DANGER DECAL

Header May Fall Rapidly, English

2шт.

5

86625174

DANGER DECAL

DANGER, Header May Fall Rapidly, French

2шт.

5

86625175

DANGER DECAL

DANGER, Header May Fall Rapidly, Spanish

2шт.

6

80772110

WARNING DECAL

Knife Tip Path, English

1шт.

6

791403

WARNING DECAL

WARNING, Knife Tip Path, French

1шт.

6

86528619

WARNING DECAL

WARNING, Knife Tip Path, Spanish

1шт.

7

86628571

WARNING DECAL

Stand Clear, English

2шт.

7

86629518

WARNING DECAL

WARNING, Stand Clear, French

2шт.

7

86629519

WARNING DECAL

WARNING, Stand Clear, Spanish

2шт.

8

86611825

WARNING DECAL

WARNING, NO STEP, English

3шт.

8

86614084

WARNING DECAL

NO STEP, French

3шт.

8

86624655

WARNING DECAL

WARNING, NO STEP, Spanish

3шт.

10

86629146

WARNING DECAL

Close Shield Prior

2шт.

10

86629148

DECAL

WARNING, Close Shield Prior, French

2шт.

10

86629147

DECAL

WARNING, Close Shield Prior, Spanish

2шт.

11

849472

DANGER DECAL

Shield Missing, English

1шт.

11

849483

DANGER DECAL

Shield Missing, French

1шт.

11

9801256

DANGER DECAL

DANGER, Shield Missing, Spanish

1шт.

12

86593134

DECAL

Lube, Grease per Shown, English

1шт.

12

86593136

DECAL

Lube, Grease per Shown, French

1шт.

12

86593135

DECAL

Lube, Grease per Shown, Spanish

1шт.

13

849471

DANGER DECAL

Rotating Driveline, English

1шт.

13

849482

DANGER DECAL

Rotating Driveline, French

1шт.

13

9801260

DANGER DECAL

DANGER, Rotating Driveline, Spanish

1шт.

14

166127

DECAL

ATTENTION, No Lifting Here, English

1шт.

14

601662

DECAL

ATTENTION, No Lifting Here, French

1шт.

14

9804246

DECAL

ATTENTION, No Lifting Here, Spanish

1шт.

15

87622972

DECAL

CIH Logo

1шт.

16

86600540

DECAL

ATTENTION, This Case Contains Your Operator's Manuals, English

1шт.

16

86604288

DECAL

ATTENTION, This Case Contains Your Operator's Manuals, French

1шт.

16

86604289

DECAL

ATTENTION, This Case Contains Your Operator's Manuals, Spanish

1шт.
