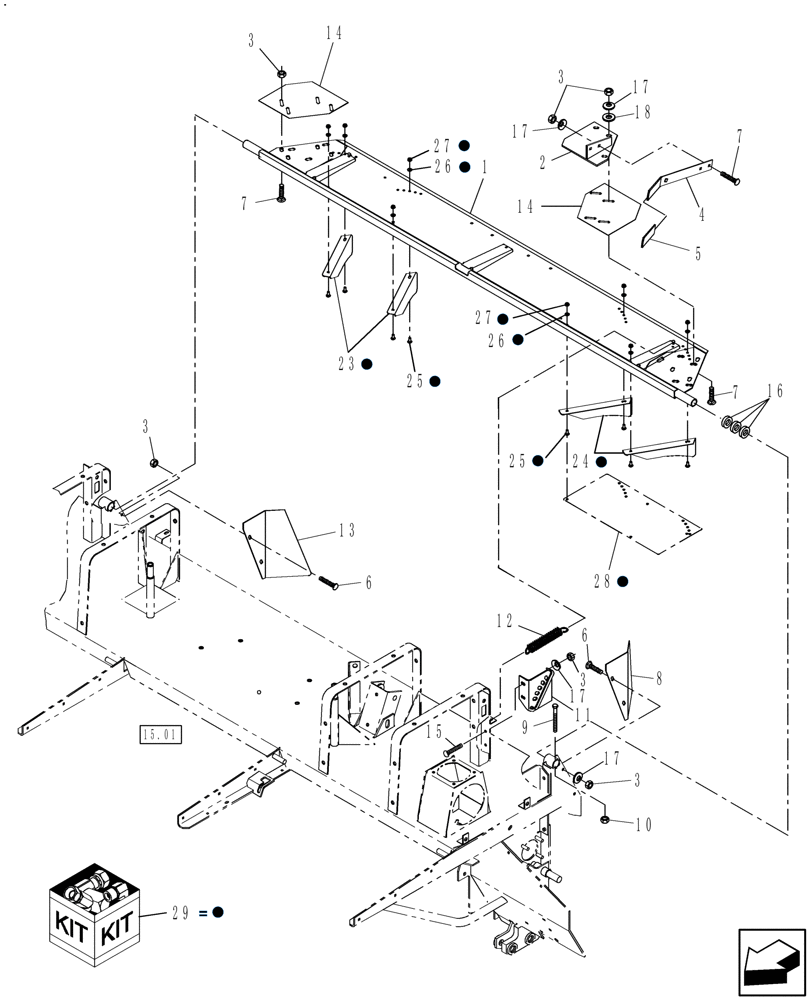

Запчасти Case IH DC162F (08.05) - SWATHGATE (08) - SHEET METAL

1

87731420

SWATHBOARD

1шт.

2

87731419

SUPPORT

1шт.

3

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

16шт.

4

87731418

HANDLE

1шт.

5

698486

HANDLE GRIP

1шт.

6

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

4шт.

7

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

10шт.

8

87731416

DEFLECTOR

LH

1шт.

9

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

10

9626558

FLANGE NUT,Flg, 1/4"-20

2шт.

11

87731415

SEGMENT

1шт.

12

510362

SPRING

2шт.

13

87731422

DEFLECTOR

RH

1шт.

14

87731421

DEFLECTOR

2шт.

15

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

16

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

3шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

18

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

8шт.

23

86606982

FIN

RH

2шт.

24

86606983

FIN

LH

2шт.

25

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

8шт.

26

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

27

86521605

FLANGE NUT,5/16"-18, Cl 5

8шт.

28

NSS

NOT SOLD SEPARAT

Template

1шт.

29

84267895

KIT

Swathgate Fins, Includes Instructions

1шт.
