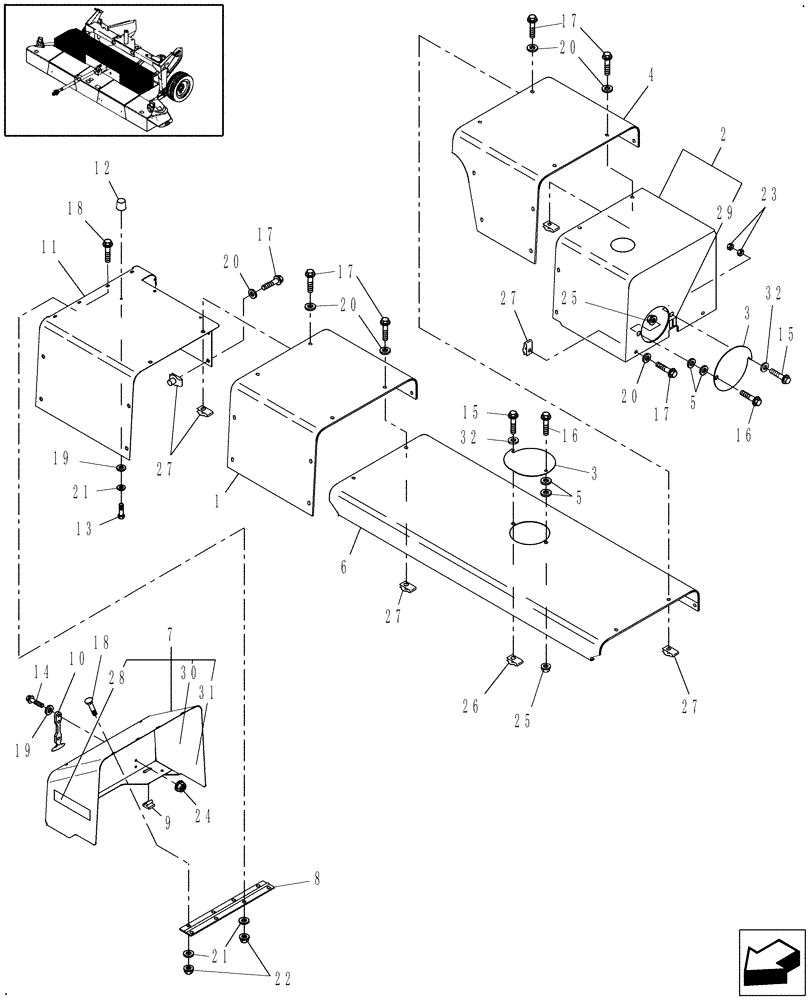

Запчасти Case IH DC162F (08.03) - SHIELDING, TOP COMPONENTS (08) - SHEET METAL

1

86627251

SHIELD

RH

1шт.

2

86629808

SHIELD

1шт.

3

86629815

DOOR

2шт.

4

86627250

SHIELD

LH

1шт.

5

215588

WASHER

Nylon, 3/8"

4шт.

6

86627225

SHIELD

Center Top

1шт.

7

86629814

COVER

1шт.

8

86586942

HINGE

1шт.

9

216328

BUMPER

Block

2шт.

10

86000448

LATCH

Rubber

1шт.

11

86629813

COVER

1шт.

12

224985

BUMPER

1шт.

13

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1шт.

14

86544366

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

15

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

16

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

17

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

29шт.

18

280638

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G5, Full Thd

8шт.

19

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

3шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

29шт.

21

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

9шт.

22

523282

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

24

9626558

FLANGE NUT,Flg, 1/4"-20

2шт.

25

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.

26

9626645

NUT

Speed, 5/16"-18

2шт.

27

86539811

SPRING NUT

Speed, 3/8"-16

29шт.

28

86547782

REFLECTOR,YELLOW

Yellow Retro Reflective

1шт.

29

165109

DECAL

Lube

2шт.

30

86547781

REFLECTOR,RED

Tape, Red Retroreflective

1шт.

31

86547783

REFLECTOR,Tape, Red Orange

Tape, Red/Orange Fluorescent

1шт.

32

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.
