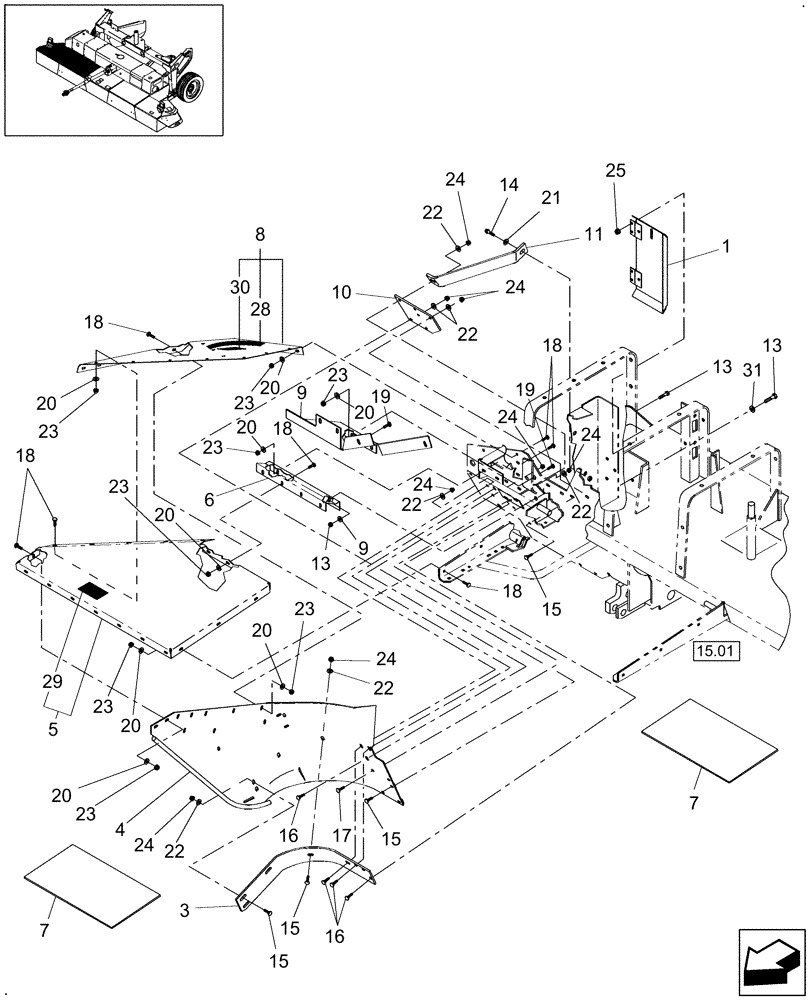

Запчасти Case IH DC162F (08.02) - SHIELDING, RIGHT COMPONENTS (08) - SHEET METAL

1

86632242

COVER

1шт.

3

87399537

SUPPORT

1шт.

5

86631729

SUPPORT

RH

1шт.

6

87387511

FILLER

1шт.

7

86582725

LINER

Stone Guard

2шт.

8

87048001

SHEET

RH Top

1шт.

9

86592834

DEFLECTOR

Baffle

1шт.

10

86631739

PLATE

1шт.

11

86631737

BRACE

1шт.

12

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

13

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

14

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

15

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

16

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

4шт.

17

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

1шт.

18

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

22шт.

19

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

8шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

25шт.

21

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

1шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

14шт.

23

86521605

FLANGE NUT,5/16"-18, Cl 5

25шт.

24

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

14шт.

25

9626558

FLANGE NUT,Flg, 1/4"-20

2шт.

26

9626558

FLANGE NUT,Flg, 1/4"-20

2шт.

27

9823743

FLANGE NUT,Flg, 5/16"-18

6шт.

28

80772110

WARNING DECAL

Knife-Tip Path, English

1шт.

28

791403

WARNING DECAL

WARNING, Knife-Tip Path, French

1шт.

28

86528619

WARNING DECAL

WARNING, Knife-Tip Path, Spanish

1шт.

29

86611825

WARNING DECAL

WARNING, No Step, English

1шт.

29

86614084

WARNING DECAL

No Step, French

1шт.

30

86628571

WARNING DECAL

Stand Clear, English

1шт.

30

86629518

WARNING DECAL

WARNING, Rotating, Cutters, French

1шт.

30

9804253

DECAL

WARNING, Rotating, Cutters, Spanish

1шт.
