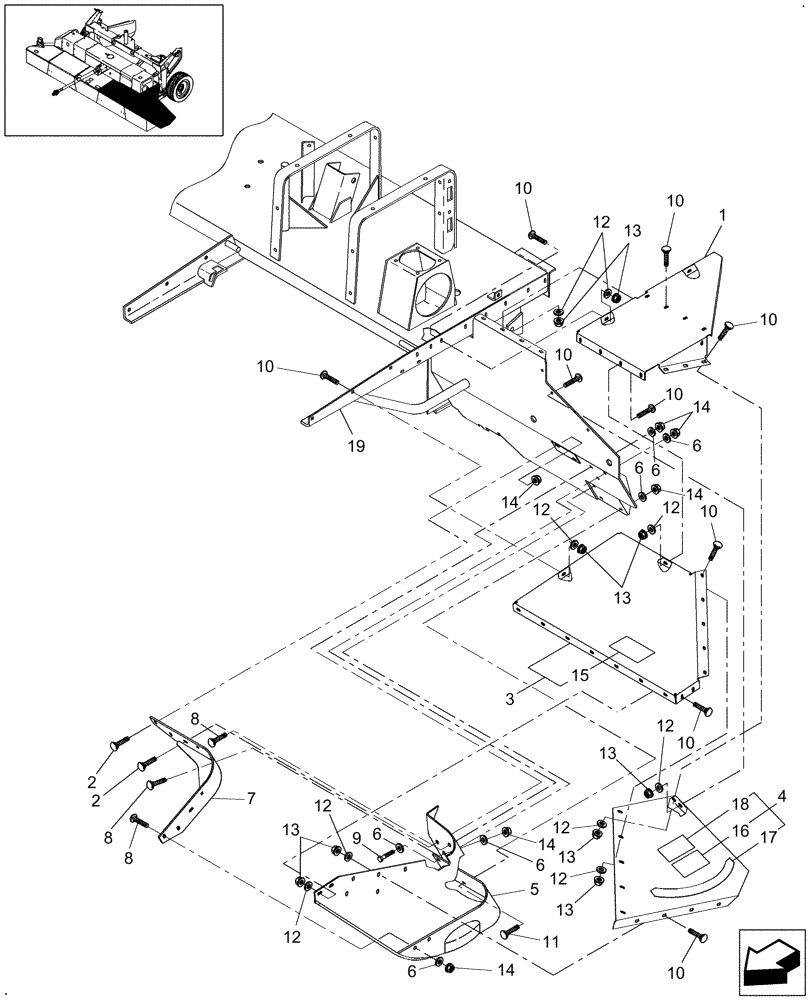

Запчасти Case IH DC162F (08.01) - SHIELDING, LEFT COMPONENTS (08) - SHEET METAL

1

87387508

SUPPORT

1шт.

2

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

3шт.

3

86631746

SUPPORT

LH

1шт.

4

87047999

SHEET

1шт.

5

87047995

SHEET

Left Side

1шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

11шт.

7

87399534

SUPPORT

1шт.

8

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

5шт.

9

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

10

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

29шт.

11

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

2шт.

12

80681

LOCK WASHER,5/16"

29шт.

13

86521605

FLANGE NUT,5/16"-18, Cl 5

29шт.

14

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

10шт.

15

86611825

WARNING DECAL

WARNING - NO STEP- English

1шт.

15

86614084

WARNING DECAL

Do Not Use as Step - French

1шт.

16

86628571

WARNING DECAL

Stand Clear, English

1шт.

16

86629518

WARNING DECAL

WARNING, Stand Clear - French

1шт.

16

9804253

DECAL

WARNING, Stand Clear - Spanish

1шт.

17

80772110

WARNING DECAL

Knife Tip Path - English

1шт.

17

791403

WARNING DECAL

WARNING, Knife Tip Path - French

1шт.

18

86622073

WARNING DECAL

1шт.

18

86622074

WARNING DECAL

WARNING, French

1шт.

18

9801258

DECAL

CAUTION, Before Operating this Machine - Spanish

1шт.

19

86522460

ANGLE

(Welding Required)

1шт.
