Запчасти Case IH DC162F (07.02) - HYDRAULIC CYLINDER, SLAVE, MONARCH (07) - HYDRAULICS

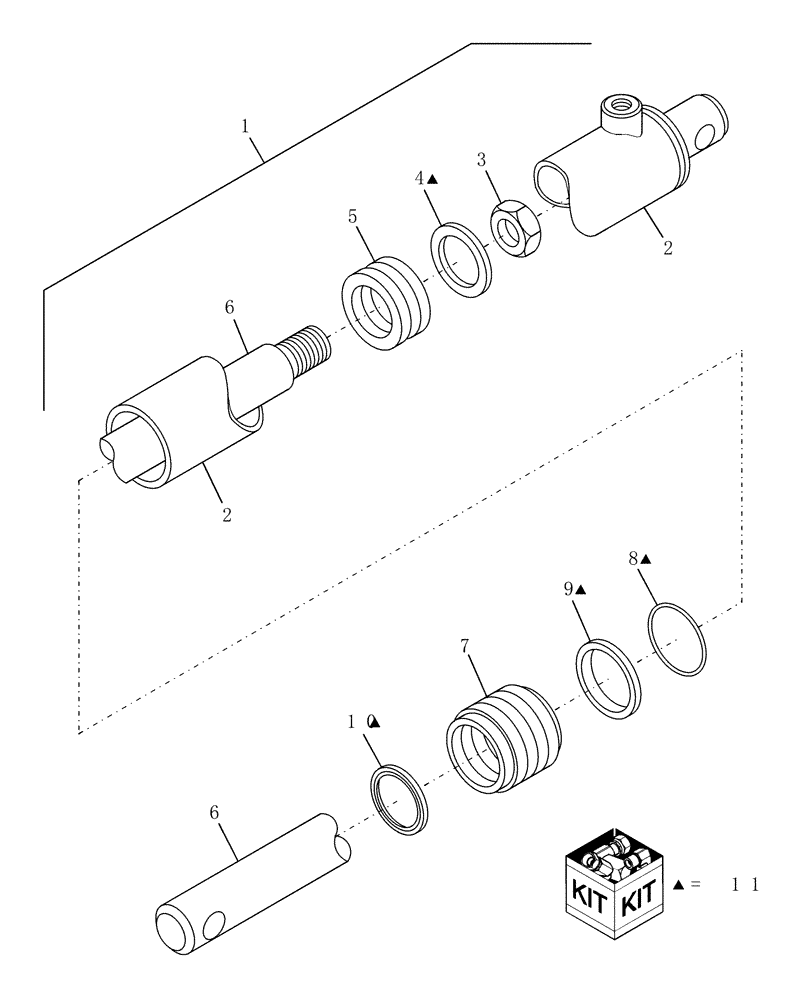

Схема запчастей Case IH DC162F - (07.02) - HYDRAULIC CYLINDER, SLAVE, MONARCH (07) - HYDRAULICS
7
2
5
6
3
1
10
8
2
6
4
9

Артикул

Название

Примечание

Количество

1

87573687

HYDRAULIC CYLINDER,28.7mm Rod, 251.71mm Stroke

Slave, Monarch

1шт.

1

87573687R

REMAN-HYD CYLINDER

DC162F (10/08-)

1шт.

87573687C

CORE-HYD CYLINDER

Return Number

1шт.

2

NS

NOT SERVICED

Barrel

1шт.

3

280724

LOCK NUT,3/4" - 16

1шт.

4

86553483

SEAL

3 Piece, Piston

1шт.

5

87026074

PISTON

1шт.

6

87574534

PISTON ROD

1шт.

7

87025433

HEAD

1шт.

8

235782

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

9

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Back-up, 1.772" ID x .043" Thk

1шт.

10

128406

SEAL,28.57mm ID x 41.45mm OD x 6.35mm Thk

Wiper

1шт.

11

87025444

SEAL KIT

Kit

1шт.

Also Contains Piston Wear Ring; Not Shown Or Serviced Separately

1шт.

Выбрано товаров: 14
