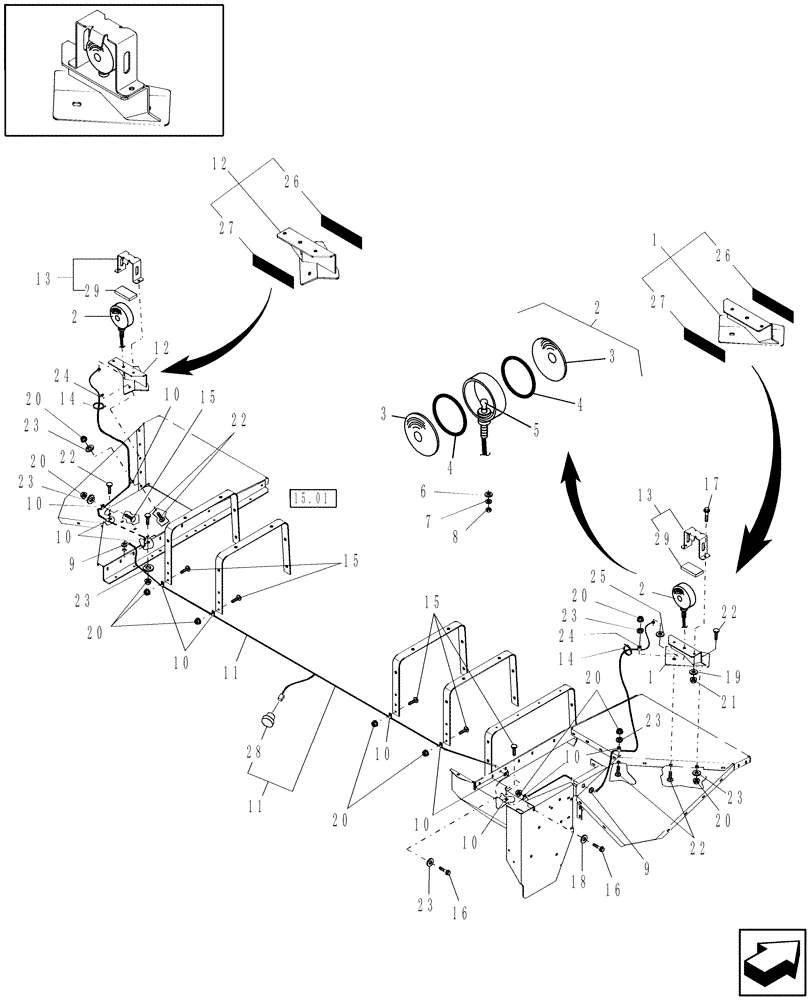

Запчасти Case IH DC162F (06.02) - LIGHTS, HEADER (06) - ELECTRICAL

1

86631948

SUPPORT

RH

1шт.

2

86621618

WARNING LIGHT

Amber, Includes: Ref. 2 - 7

2шт.

3

86622240

LENS

Amber

4шт.

4

86627435

O-RING,3.484" ID x 0.139" Width

2шт.

5

529068

BULB,#1156, 12V, 21W

2шт.

6

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

8

280963

NUT,Nut, 1/2-20 GR 5 ZND

2шт.

9

174266

GROMMET

2шт.

10

675162

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, P Type

13шт.

11

86531563

WIRE HARNESS

1шт.

12

86631949

SUPPORT

LH

1шт.

13

86623408

SUPPORT ASSY.

2шт.

14

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

15

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

8шт.

16

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

17

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

18

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

20

86521605

FLANGE NUT,5/16"-18, Cl 5

16шт.

21

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

22

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

6шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

13шт.

24

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

2шт.

25

86515458

WASHER,13mm ID x 22.22mm OD x 1.62mm Thk

M12.7

2шт.

26

86547782

REFLECTOR,YELLOW

Yellow Retro Reflective

1шт.

27

86547781

REFLECTOR,RED

Red retroreflective

1шт.

28

9861408

CAP

#3, receptacle

1шт.

29

86623410

PAD

2шт.
