Запчасти Case IH DC162F (06.02[01]) - LIGHTS, HEADER, SQUARE (06) - ELECTRICAL

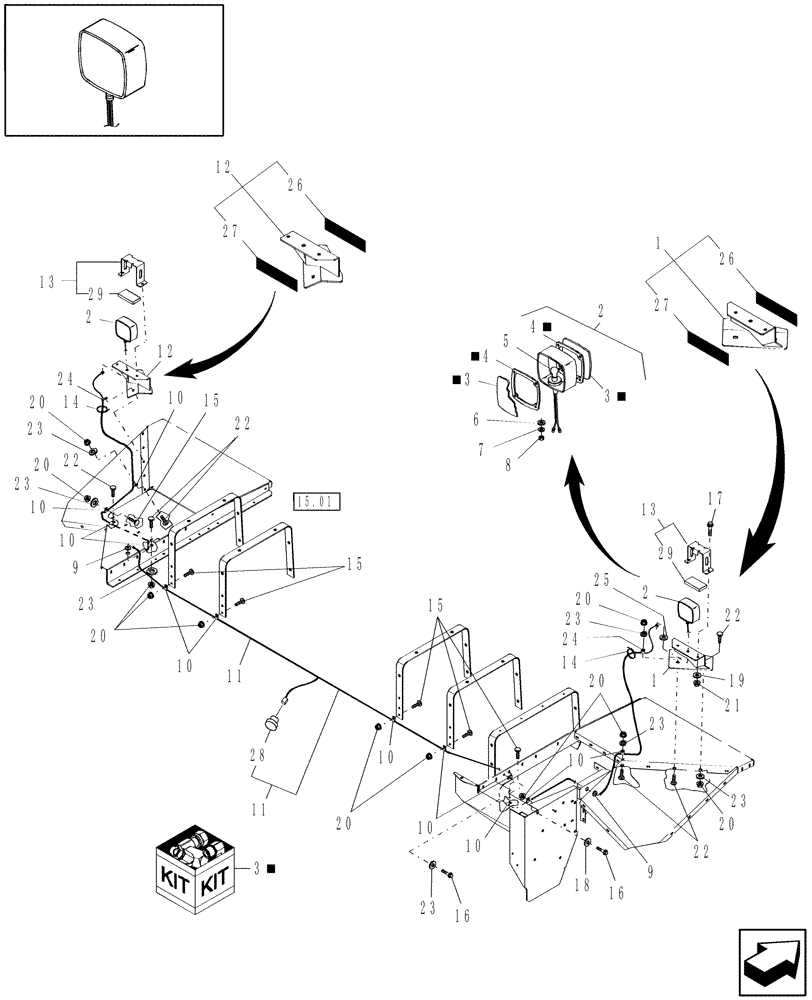

Схема запчастей Case IH DC162F - (06.02[01]) - LIGHTS, HEADER, SQUARE (06) - ELECTRICAL
21
3
3
27
20
12
23
1
26
20
10
1
7
17
8
28
10
16
25
3
15.01
11
22
5
23
29
4
10
24
23
10
27
14
23
2
12
2
20
15
9
23
10
11
20
6
19
20
22
22
20
22
10
24
16
26
10
23
20
10
18
2
9
29
14
13
4
15
23
13
15

Артикул

Название

Примечание

Количество

1

86631948

SUPPORT

RH

1шт.

2

608852

WARNING LIGHT

2шт.

3

F0NN15N581BA

LENS

Amber Lens

4шт.

4

853709

GASKET,1.65mm Thk

6шт.

5

529068

BULB,#1156, 12V, 21W

2шт.

6

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

8

280963

NUT,Nut, 1/2-20 GR 5 ZND

2шт.

9

174266

GROMMET

2шт.

10

675162

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, P Type

13шт.

11

86531563

WIRE HARNESS

Includes: Ref. 28

1шт.

12

86631949

SUPPORT

LH

1шт.

13

86623408

SUPPORT ASSY.

Includes: Ref. 29

2шт.

14

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

15

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

8шт.

16

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

17

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

18

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

20

86521605

FLANGE NUT,5/16"-18, Cl 5

16шт.

21

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

22

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

6шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

13шт.

24

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

2шт.

25

86515458

WASHER,13mm ID x 22.22mm OD x 1.62mm Thk

M12.7

2шт.

26

86547782

REFLECTOR,YELLOW

Yellow Retro Reflective

1шт.

27

86547781

REFLECTOR,RED

Tape, Red Retroreflective

1шт.

28

9861408

CAP

#3, Receptacle

1шт.

29

86598388

PAD

2шт.

Выбрано товаров: 29
