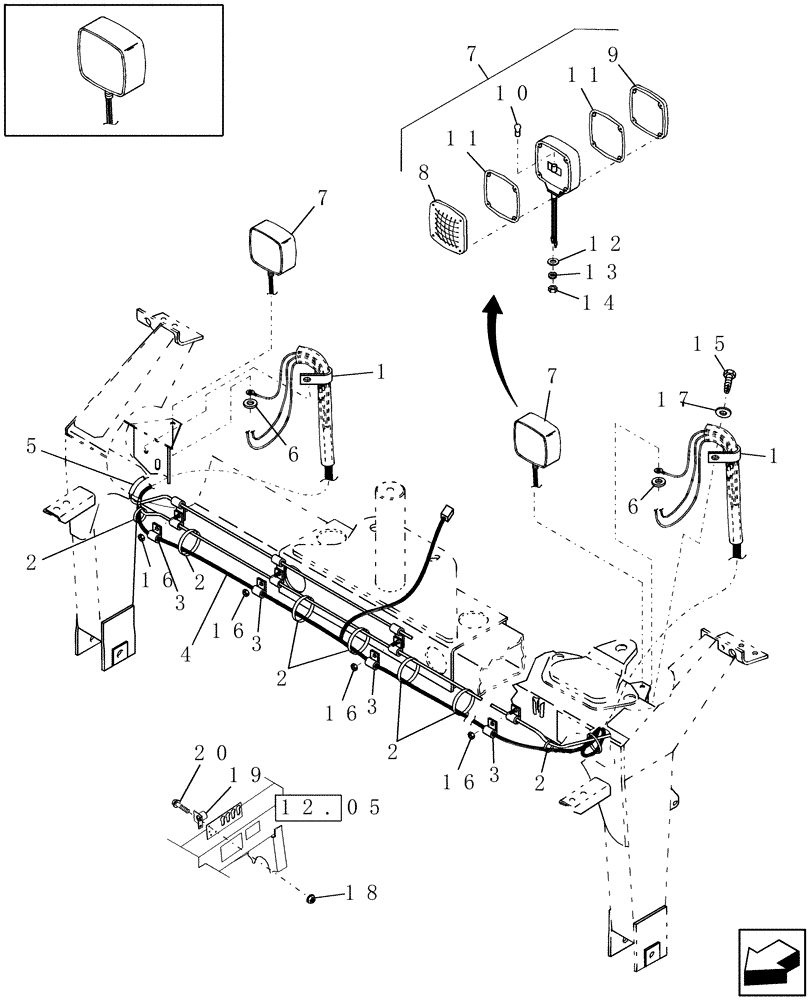

Запчасти Case IH DC162F (06.01) - LIGHTS, TRAILFRAME (06) - ELECTRICAL

1

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

2шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

10шт.

3

675162

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

4

86560343

WIRE HARNESS

1шт.

5

86604516

INSULATOR

Edging, 3' -, Serial Range: Cut-Fit

1шт.

6

86515458

WASHER,13mm ID x 22.22mm OD x 1.62mm Thk

M12.7

2шт.

7

86514198

TAIL LAMP

2шт.

8

86537132

KIT

Lens, Black - Includes: (1) Ref. 11

1шт.

9

853711

LENS

Red - Includes: (1) Ref. 11

1шт.

10

86537133

BULB,C6, #1157, 12.8V

1шт.

11

853709

GASKET,1.65mm Thk

2шт.

12

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

14

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

15

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

2шт.

16

86521609

FLANGE NUT,Flg, 3/8"-16

4шт.

17

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

18

9626558

FLANGE NUT,Flg, 1/4"-20

2шт.

19

9611467

HOLDER

Plug Holder

1шт.

20

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.
