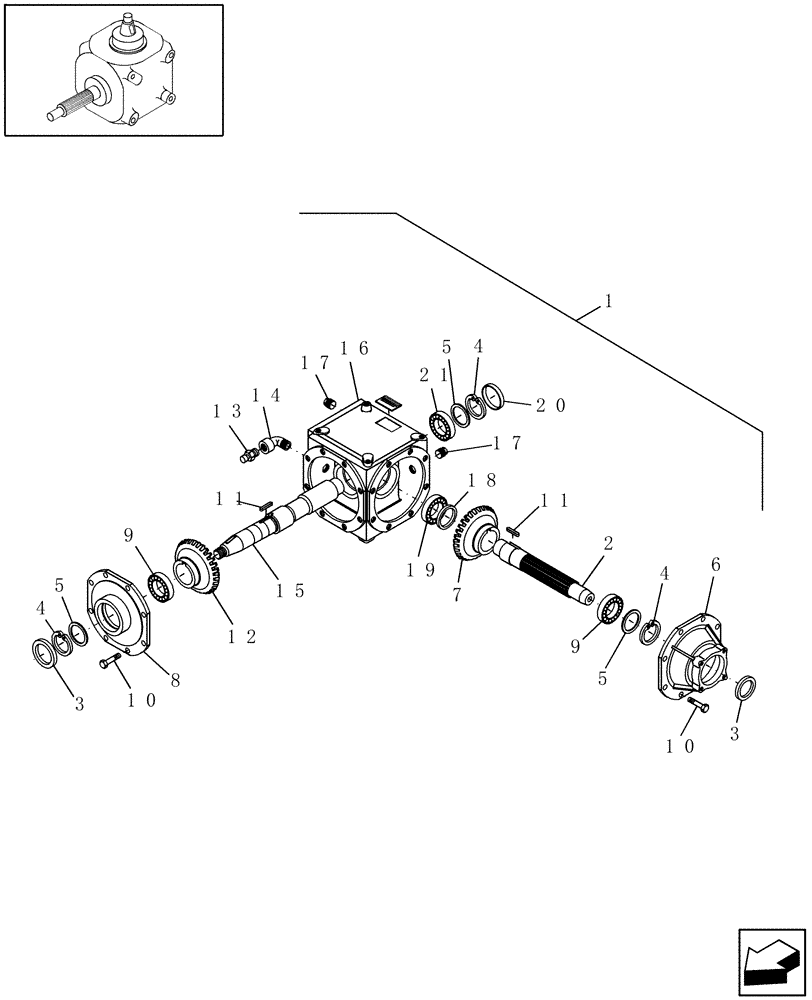

Запчасти Case IH DC162F (03.02) - GEARBOX COMPONENTS - PIVOT (03) - MAIN GEARBOX

1

86572192

GEARBOX

1шт.

1

86572192R

REMAN-GEARBOX

Reman Gearbox

1шт.

1

86572192C

CORE-GEARBOX

Return Number

1шт.

2

86572195

SHAFT

1шт.

3

86539169

SEAL,35mm ID x 72mm OD x 10mm Thk

2шт.

4

370018

SNAP RING,M72, Internal

3шт.

5

86539210

KIT

Shim - Includes: 3 Shims

3шт.

6

86572193

COVER

1шт.

7

86539173

BEVEL PINION

1шт.

8

86539172

COVER

1шт.

9

86557434

TAPERED BEARING,35mm ID x 72mm OD x 24.25mm W

2шт.

10

2975076

BOLT,M10 x 1.5 x 22mm, Cl 8.8

Cap, HH, CL 8.8, M10 x 1.5 x 22

16шт.

11

86539170

KEY

2шт.

12

86539171

BEVEL PINION

1шт.

13

86539157

BREATHER,3/8" Gas

1шт.

14

87031306

ELBOW,90 Degree, 3/8" Gas

90 °

1шт.

15

86539168

SHAFT

1шт.

16

86539186

HOUSING

1шт.

17

86557412

PLUG,3/8" - 19 NPT

2шт.

18

86539212

KIT

Shim - Includes: 3 Shims

1шт.

19

86572200

TAPERED BEARING

1шт.

20

86539183

CAP

1шт.

21

80037203

BEARING ASSY

1шт.
