(01.06) - SECONDARY PTO COMPONENTS

Запчасти Case IH DC162F (01.06) - SECONDARY PTO COMPONENTS (01) - PTO DRIVE SHAFT

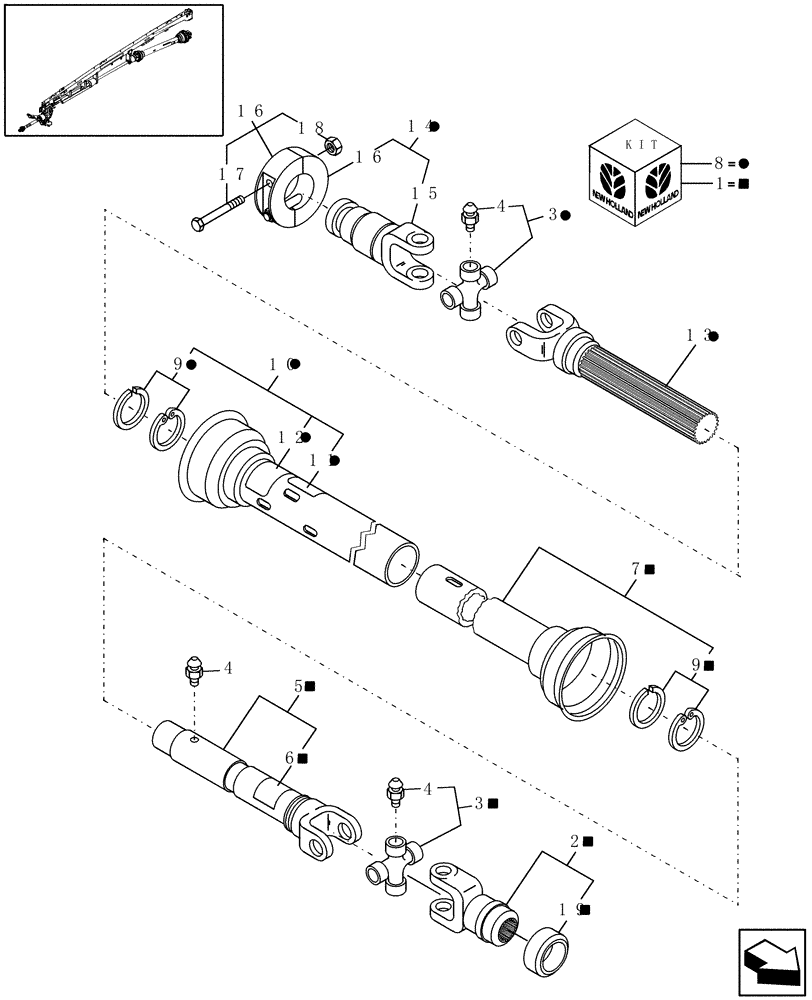

Схема запчастей Case IH DC162F - (01.06) - SECONDARY PTO COMPONENTS (01) - PTO DRIVE SHAFT
kit
19
1
1
8
8
4
11
4
14
1
1
1
1
3
5
15
6
4
8
8
3
13
12
1
1
8
8
9
8
1
16
18
9
16
8
2
17
7
10
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86598602

PTO

Front Half

1шт.

2

86598606

YOKE

Auto-Lok

1шт.

3

86520896

BEARING ASSY

2шт.

4

87414

LUBE NIPPLE,1/4" - 28

1шт.

5

86539640

YOKE,67.56" L

& Tube

1шт.

6

849472

DANGER DECAL

Shield Missing, English

1шт.

6

849483

DANGER DECAL

French

1шт.

6

9801256

DANGER DECAL

DANGER, Spanish

1шт.

7

86536187

GUARD

Inner

1шт.

8

86598603

PTO

Rear Half

1шт.

9

86505713

NYLON BEARING

(1) Nylon Bearing & (1) Retaining Ring

2шт.

10

86536188

GUARD

Outer

1шт.

11

86593134

DECAL

Lubrication, English

1шт.

11

86593136

DECAL

Lubrication, French

1шт.

11

86593135

DECAL

Lubrication, Spanish

1шт.

12

849471

DANGER DECAL

English

1шт.

12

849482

DANGER DECAL

French

1шт.

12

9801260

DANGER DECAL

DANGER, Spanish

1шт.

13

86539639

YOKE

& Shaft

1шт.

14

86598604

YOKE

& Clamp

1шт.

15

86601819

YOKE

& Hub

1шт.

16

86598607

HUB

Clamp

1шт.

17

9818286

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

2шт.

18

88871

NUT,1/2"-13, GC

2шт.

19

86534533

REPAIR KIT

Auto-Lok

1шт.

Includes: (4) Balls, (2) Pawls, (1) Collar, (1) Spring & (1) Retaining Ring

1шт.
