(01.05) - CLUTCH COMPONENTS - INTERMEDIATE PTO

Запчасти Case IH DC162F (01.05) - CLUTCH COMPONENTS - INTERMEDIATE PTO (01) - PTO DRIVE SHAFT

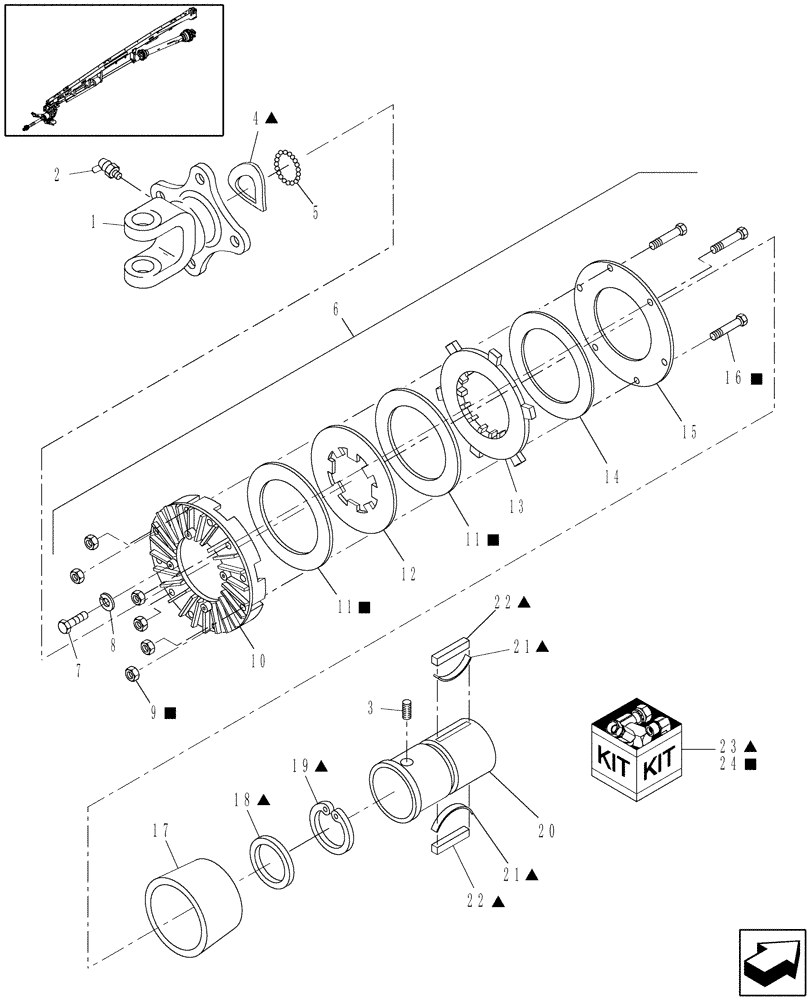

Схема запчастей Case IH DC162F - (01.05) - CLUTCH COMPONENTS - INTERMEDIATE PTO (01) - PTO DRIVE SHAFT
21
13
21
4
20
11
6
7
14
22
5
19
11
23
8
3
2
10
16
22
15
24
12
1
9
18
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86602308

YOKE

Includes Ref. 2

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

1шт.

3

86602307

SET SCREW,5/16" x 18mm

Set, HS, Self-Locking, Cup Pt, G8, 5/16"-18

1шт.

4

NSS

NOT SOLD SEPARAT

Wave Spring

1шт.

5

86585468

BALL

1/4"

31шт.

6

86601367

CLUTCH, PRESSURE PLA,177.8mm OD

Friction Pack, Includes Ref. 7 - 16,18,19,21 & 22

1шт.

7

280341

BOLT,Hex, 5/16" - 18 x 1", Gr 8, Full Thd

4шт.

8

80681

LOCK WASHER,5/16"

4шт.

9

9635082

NUT,5/16" - 18, Gr 5

6шт.

10

NSS

NOT SOLD SEPARAT

Housing

1шт.

11

NSS

NOT SOLD SEPARAT

Friction Disc

2шт.

12

86601371

CLUTCH PLATE

Separator

1шт.

13

NSS

NOT SOLD SEPARAT

Pressure Plate

1шт.

14

86551193

SPRING

1шт.

15

NSS

NOT SOLD SEPARAT

Compression Plate

1шт.

16

14948

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 8

6шт.

17

86601370

HUB

Outer

1шт.

18

NSS

NOT SOLD SEPARAT

Washer

1шт.

19

NSS

NOT SOLD SEPARAT

Retaining Ring

1шт.

20

86601490

HUB

Inner

1шт.

21

NSS

NOT SOLD SEPARAT

Leaf Spring

2шт.

22

NSS

NOT SOLD SEPARAT

Key

2шт.

23

86572966

REPAIR KIT

Overruning Clutch

1шт.

24

86601404

REPAIR KIT

Friction

1шт.
