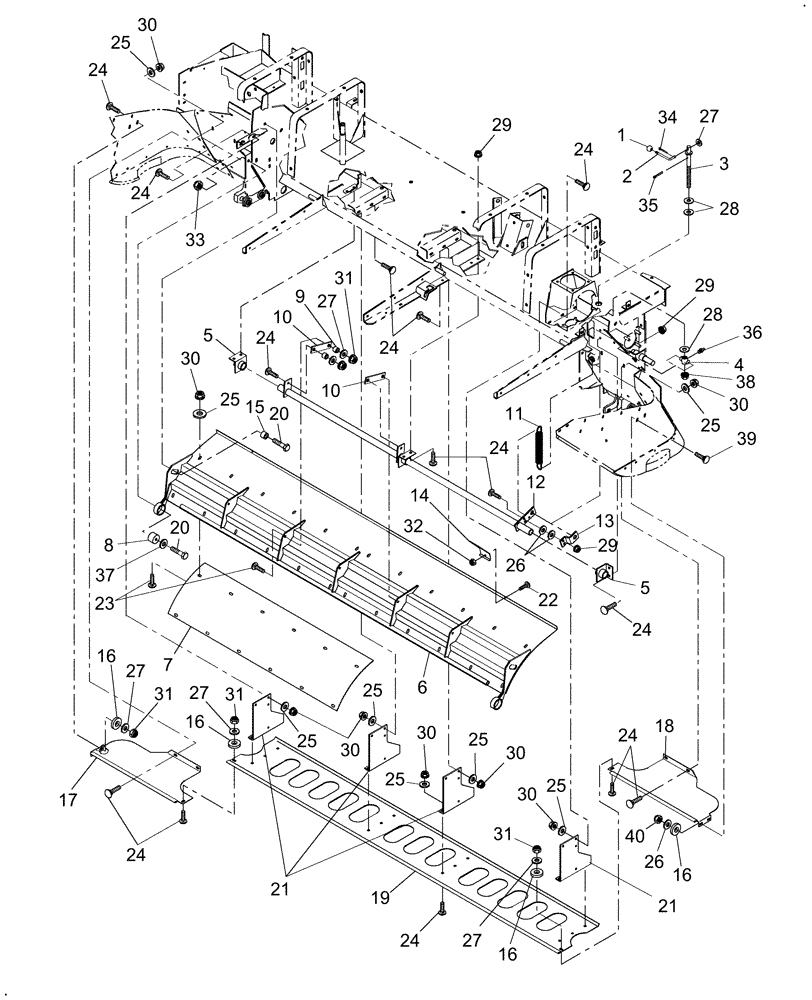

Запчасти Case IH DC132F (15.04) - HOOD, ROTOR (15) - CROP CONDITIONING

1

168982

KNOB

1шт.

2

86562033

ROD

1шт.

3

86543106

ROD

1шт.

4

9622890

NUT

Lift, 3/4"-10

1шт.

5

86551760

SLEEVE

2шт.

6

86592524

SHEET METAL

Rotor Hood

1шт.

7

86592527

METAL LINER

Smooth

2шт.

7

716537046

DIA KIT, HARVESTER

Textured Liner, Includes 5 items below

1шт.

Includes: LH & RH Textured Liners, Hardware & Instructions.

1шт.

7

86593376

METAL LINER

Textured, LH

1шт.

7

86593375

METAL LINER

Textured, RH

1шт.

7

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

24шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

24шт.

7

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

24шт.

8

86592518

SPACER

2шт.

9

516579

BUSHING,9.75mm ID x 15.82mm OD x 7.14mm L

4шт.

10

86551759

CONNECTING LINK

2шт.

11

143224

SPRING,Extension, 1" OD x 5-7/16" L

Extension

1шт.

12

86561490

PIPE

1шт.

13

86551761

ANGLE

1шт.

14

86626405

INDICATOR

1шт.

15

9849365

SPACER,13.49mm ID x 19.05mm OD x 18.24mm L

Split

2шт.

16

86607708

WASHER

Nylon, 3/8"

6шт.

17

87515051

SHIELD

RH

1шт.

18

87515050

SHIELD

LH

1шт.

19

87687145

SHIELD

Center

1шт.

20

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

21

86581562

SUPPORT

4шт.

22

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

1шт.

23

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

24шт.

24

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

37шт.

25

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

47шт.

26

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

8шт.

27

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

7шт.

28

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

3шт.

29

247780

SERRATED NUT,Flg, USR, 3/8"-16

8шт.

30

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

47шт.

31

9637692

NUT,3/8"-16, Gr B

6шт.

32

280129

NUT,1/4"-20

1шт.

33

88871

NUT,1/2"-13, GC

2шт.

34

80756

COTTER PIN,1/8" x 3/4"

1шт.

35

164086

COTTER PIN

Hardened, 3/16" x 1-1/2"

1шт.

36

87414

LUBE NIPPLE,1/4" - 28

1шт.

37

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

2шт.

38

280375

NUT,3/4"-10, GC

1шт.

39

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

4шт.

40

9823743

FLANGE NUT,Flg, 5/16"-18

4шт.
