(14.10) - DRIVE SHAFT, CUTTERBAR

Запчасти Case IH DC132F (14.10) - DRIVE SHAFT, CUTTERBAR (14) - CROP CUTTING

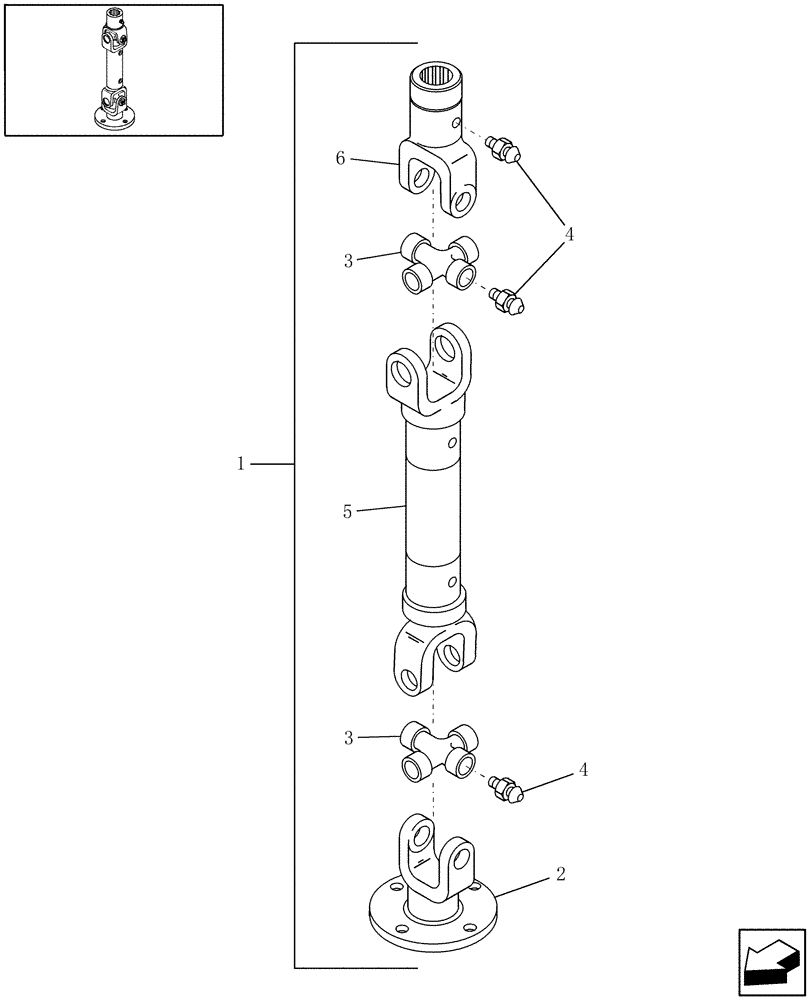

Схема запчастей Case IH DC132F - (14.10) - DRIVE SHAFT, CUTTERBAR (14) - CROP CUTTING
4
2
3
1
6
3
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86565923

SHAFT

Drive, Includes: Ref. 2 - 6

1шт.

2

86585339

YOKE

Plate

1шт.

3

86515563

BEARING ASSY,27.03mm Cap Dia, 63.75mm L

Cross & Bearing, Includes: Ref. 4

2шт.

4

87414

LUBE NIPPLE,1/4" - 28

3шт.

5

86585340

YOKE

& Tube

1шт.

6

86591069

YOKE

1-3/8" - 6 Spline

1шт.
