Запчасти Case IH DC132F (14.01) - CUTTERBAR (14) - CROP CUTTING

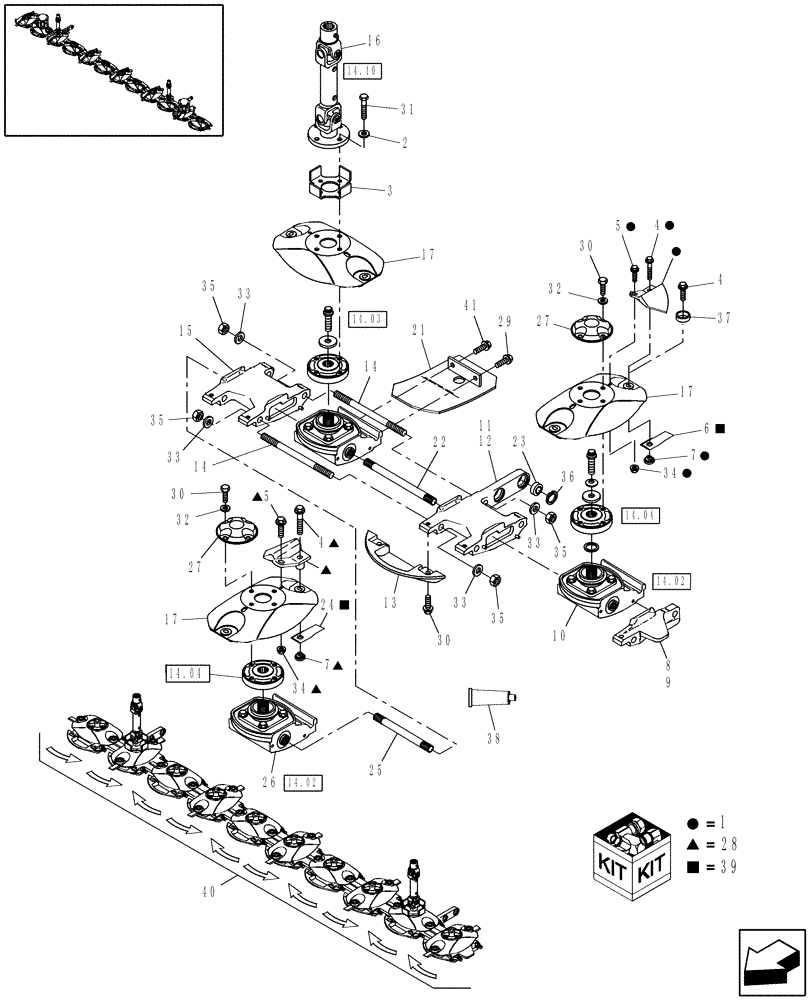

Схема запчастей Case IH DC132F - (14.01) - CUTTERBAR (14) - CROP CUTTING
41
21
4
4
5
14.10
14.02
14.02
14.04
14.04
22
35
23
7
16
4
32
24
27
30
30
35
31
17
15
10
32
1
33
26
36
25
33
13
14
17
11
3
28
5
34
27
33
38
33
14
17
35
8
29
37
35
14.03
40
2
9
34
30
6
39
7
12

Артикул

Название

Примечание

Количество

1

87528245

KIT

Lifter, CW

1шт.

Modules 1, 2, 4, 6, and 8.

1шт.

Includes: (2) Lifters & all Mounting Hardware.

1шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

(1/2")

8шт.

3

86629689

DISC

2шт.

4

86515925

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

20шт.

5

86515926

FLANGE BOLT,Hex, 1/2" - 13 x 1.75", Gr 8

20шт.

6

86621872

BLADE

CW, 14° Twist

10шт.

Standard equipment.

1шт.

6

9847683

BLADE,Knife CW

CW

1шт.

6

87029587

BLADE

CW, 14° Twist, Over-serrated

1шт.

6

86532078

KNIFE

Straight (Also Called "V-Shaped")

1шт.

For use where Standard Knives are prone to bending.

1шт.

7

87725066

NUT

1/2" Special

20шт.

8

86629691

ARM

LH, Includes: Groove pins

1шт.

8

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

3/8" x 3/4" Heat Treated

2шт.

9

86629690

ARM

End, RH, Includes Ref. 8

1шт.

10

0C

ORDER COMPONENTS

Module, Control, CW

5шт.

11

87057898

ARM ASSY.

LH, Includes: Groove Pins

1шт.

11

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

3/8" x 3/4" Heat Treated

4шт.

12

87057901

ARM ASSY.

RH, Includes: Groove Pins

1шт.

12

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

3/8" x 3/4" Heat Treated

4шт.

13

87047845

STONEGUARD

10шт.

14

86501934

THREADED ROD

12.2" L

20шт.

15

87044107

SPACER

Includes: Groove Pins

7шт.

15

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

3/8" x 3/4" Heat Treated

28шт.

16

86565923

SHAFT

Drive

2шт.

Shown For Ref. Only, Not Included With Cutterbar Assy. Ref. 40

1шт.

21

87047426

SKID/SHOE

10шт.

21

84141953

SKID/SHOE

HD HT, For Abrasive Soil Conditions

8шт.

21

87622885

SHOE

Hi Stubble

10шт.

21

715289026

DIA KIT, HARVESTER

Hi Stubble, Includes: (8) Hi Skid Shoes & Instructions

1шт.

22

86519039

SHAFT

268mm

2шт.

23

87659928

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

Spherical

4шт.

24

86621873

BLADE

CCW, 14° Twist

10шт.

Standard equipment.

1шт.

24

9847684

BLADE,Knife CCW

CCW

1шт.

24

87029588

BLADE

CCW, 14° Twist, Over-serrated

1шт.

24

86532078

KNIFE

Straight

1шт.

For use where Standard Knives are prone to bending.

1шт.

25

86519042

SHAFT

248mm

7шт.

26

0C

ORDER COMPONENTS

Module, Control, CCW

5шт.

27

87581143

CAP

See Fig. 14.03

8шт.

28

87528249

KIT

Lifter, CCW

10шт.

Includes: (2) Lifters & all Mounting Hardware.

1шт.

Modules 3,5,7,9 and 10.

1шт.

29

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

16шт.

30

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

52шт.

31

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

8шт.

32

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

32шт.

33

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

40шт.

34

86544265

FLANGE NUT,Flg, 1/2"-13, G8

20шт.

35

86518194

NUT,3/4"-10, G8

40шт.

36

271429

SNAP RING,1.625", Int, #162

4шт.

37

86510384

CAP

Bolt Protector

20шт.

38

9861804DS

GREASE

14oz. Tube

1шт.

Use on Shaft 86519042 & 86519039.

1шт.

39

86624751

KNIFE SET

Includes (10) 14° CW Blades, Ref 6 & (10) 14° CCW Blades, Ref 24

1шт.

39

86624752

KNIFE SET

Includes (16) 14° CW Blades, Ref 6 & (16) 14° CCW Blades, Ref 24

1шт.

39

87037027

SET OF BLADES

Includes (16) 14° CW OS Blades, Ref 6 & (16) 14° CCW OS Blades, Ref 24

1шт.

40

87697282

CUTTERBAR

1шт.

Does not include PTO Assembly or guards.

1шт.

41

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

Выбрано товаров: 63
