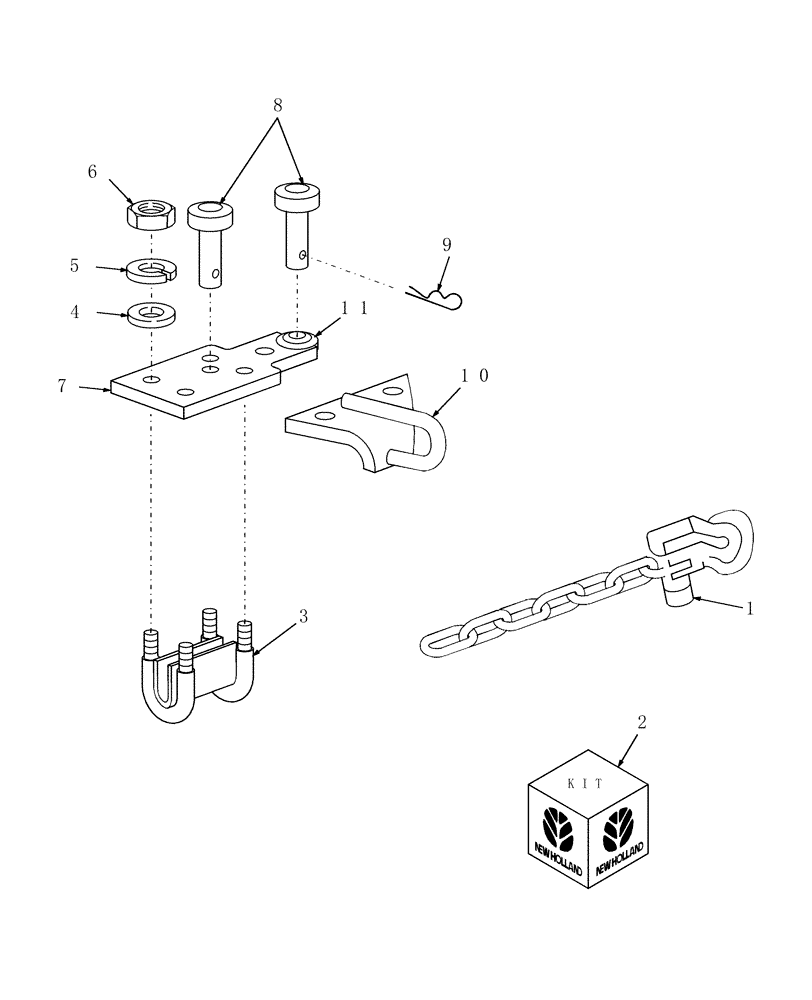

Запчасти Case IH DC132F (12.02) - HITCH EXTENSION & SAFETY CHAIN (12) - MAIN FRAME

1

850116

CHAIN

Safety Tow

1шт.

2

855228

KIT

Hardware, Safety Tow Chain

1шт.

3

86626518

CLAMP

1шт.

4

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

4шт.

5

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

4шт.

6

280954

NUT,3/4"-10, G5

4шт.

7

86626516

PLATE

Hitch, Includes: Ref. 11

1шт.

8

846927

PIN

2шт.

9

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hair

2шт.

10

86626520

ASSEMBLY

Chain Loop

1шт.

11

540137

BALL JOINT

(Weld On)

1шт.
