Запчасти Case IH DC132F (08.07) - DECALS, STANDARD & SWIVEL TONGUE MODELS (08) - SHEET METAL

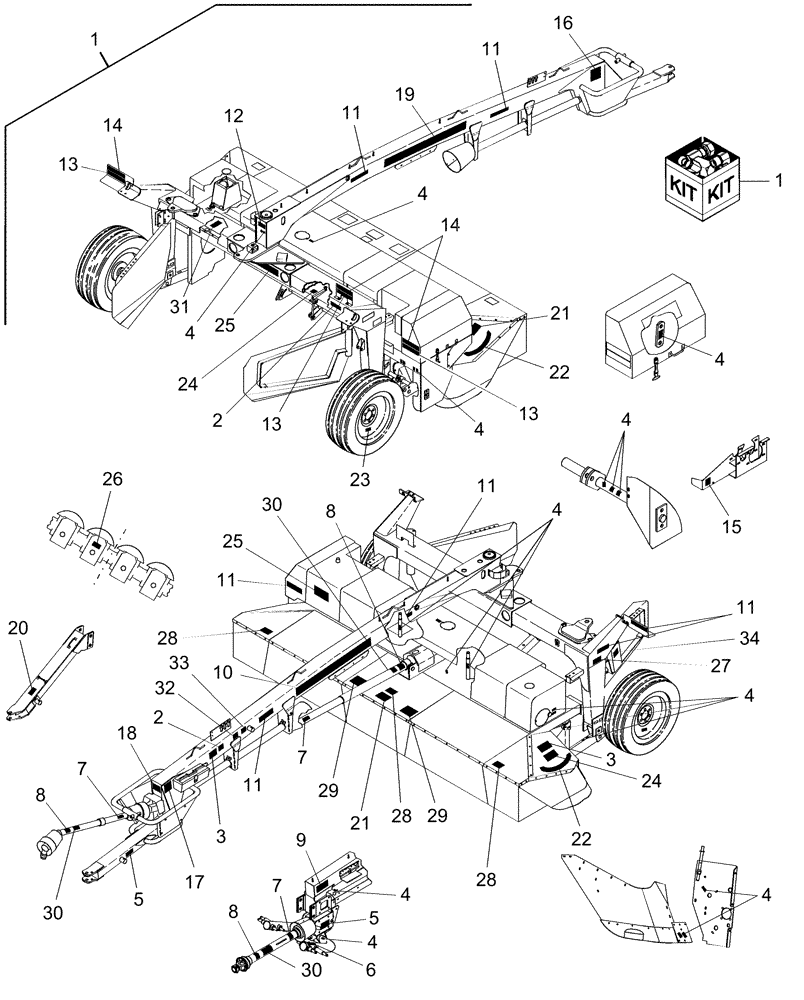

Схема запчастей Case IH DC132F - (08.07) - DECALS, STANDARD & SWIVEL TONGUE MODELS (08) - SHEET METAL
5
11
28
4
24
18
29
8
34
22
13
2
30
23
16
7
1
4
4
9
25
2
32
4
1
12
30
4
24
29
11
28
8
11
1
26
17
15
30
13
11
6
4
4
7
20
21
10
3
27
3
21
28
7
4
11
4
4
8
11
5
19
33
22
14
13
25
14
31

Артикул

Название

Примечание

Количество

1

87724863

DECAL KIT

Sign Set, English. Includes: Ref. 2 - 31

1шт.

2

86624775

WARNING DECAL

Set Machine To Clear Obstructions, English

2шт.

2

86625172

WARNING DECAL

WARNING, Set Machine To Clear Obstructions, French

2шт.

2

86625173

WARNING DECAL

WARNING, Set Machine To Clear Obstructions, Spanish

2шт.

3

86622073

WARNING DECAL

English

2шт.

3

86622074

WARNING DECAL

WARNING, French

2шт.

3

86622075

WARNING DECAL

CAUTION, Spanish

2шт.

4

165109

DECAL

Lube Fitting

26шт.

5

86536919

DECAL

ATTENTION, Store Jack In Middle Of Tongue, English

1шт.

5

86536920

DECAL

ATTENTION, Store Jack In Middle Of Tongue, French

1шт.

5

86536921

DECAL

ATTENTION, Store Jack In Middle Of Tongue, Spanish

1шт.

6

86555717

DECAL

ATTENTION, English

1шт.

Used on 2 Pt Tongue only.

1шт.

6

86559763

DECAL

ATTENTION, French

1шт.

Used on 2 Pt Tongue only.

1шт.

6

86559764

DECAL

ATTENTION, Spanish

1шт.

Used on 2 Pt Tongue only.

1шт.

7

849472

DANGER DECAL

English

2шт.

7

849483

DANGER DECAL

French

2шт.

7

9801256

DANGER DECAL

Danger, Spanish

1шт.

8

849471

DANGER DECAL

English

2шт.

8

849482

DANGER DECAL

French

2шт.

8

9801260

DANGER DECAL

DANGER, Spanish

1шт.

9

86555718

DECAL

ATTENTION, Chain Adj., English

1шт.

Use On Swivel Tongue Models, Two Point Hitch

1шт.

9

86559765

DECAL

ATTENTION, Chain Adj., French

1шт.

9

86559766

DECAL

ATTENTION, Chain Adj., Spanish

1шт.

9

86604332

DECAL

ATTENTION, DRAWBAR HITCH

1шт.

Use On Swivel Tongue Models, Drawbar Hitch

1шт.

10

87630659

DECAL

DC132, LH

1шт.

11

86547782

REFLECTOR,YELLOW

Yellow Retro Reflective

7шт.

12

770033

WARNING DECAL

English

1шт.

12

782380

WARNING DECAL

French

1шт.

12

86539342

DECAL

Spanish

1шт.

13

86547783

REFLECTOR,Tape, Red Orange

Red-Orange, Fluorescent

3шт.

14

86547781

REFLECTOR,RED

Red Retroreflective

3шт.

15

86579362

DECAL

Decal, (Spring)

1шт.

16

86539556

DECAL

ATTENTION, English, Use on Standard Tongue Models

1шт.

16

86542008

DECAL

ATTENTION, French

1шт.

16

86542007

DECAL

ATTENTION, Spanish

1шт.

17

86536635

DECAL

Lubrication, English

2шт.

17

86536956

IDEOGRAM

Lubrication, French

2шт.

17

86536953

DECAL

Lubrication, Spanish

1шт.

18

86539555

DECAL

ATTENTION, English, Use on Standard Tongue Models

1шт.

19

87630660

DECAL

DC132, RH

1шт.

20

9824086

DECAL

WARNING, English

1шт.

20

9824087

DECAL

WARNING, French

1шт.

21

86628571

WARNING DECAL

STAND CLEAR, English

3шт.

21

86629518

WARNING DECAL

WARNING: STAND CLEAR, French

3шт.

21

86629519

WARNING DECAL

WARNING: STAND CLEAR, Spanish

3шт.

22

80772110

WARNING DECAL

KNIFE-TIP-PATH, English

2шт.

22

791403

WARNING DECAL

WARNING, KNIFE-TIP-PATH, French

2шт.

22

86528619

WARNING DECAL

WARNING, KNIFE-TIP-PATH, Spanish

2шт.

23

183155

DECAL

Torque, English

2шт.

23

602232

DECAL

Torque, French

2шт.

23

9804237

DECAL

Torque, Spanish

2шт.

24

86580849

DECAL

Conditioning, English

1шт.

24

86580850

DECAL

Conditioning, French

1шт.

24

86580851

DECAL

Conditioning, Spanish

1шт.

25

87622972

DECAL

CASE IH

2шт.

26

166127

DECAL

ATTENTION, English

1шт.

26

601662

DECAL

ATTENTION, French

1шт.

26

9804246

DECAL

ATTENTION, Spanish

1шт.

27

86624774

DANGER DECAL

English

2шт.

27

86625174

DANGER DECAL

DANGER, French

2шт.

27

86625175

DANGER DECAL

DANGER, Spanish

2шт.

28

86611825

WARNING DECAL

WARNING, English

3шт.

28

86614084

WARNING DECAL

French

3шт.

28

86624655

WARNING DECAL

WARNING, Spanish

3шт.

29

86629146

WARNING DECAL

English

2шт.

29

86629148

DECAL

WARNING, French

2шт.

29

86629147

DECAL

WARNING, Spanish

2шт.

30

86593134

DECAL

Lube, English

2шт.

30

86593136

DECAL

Lube, French

2шт.

30

86593135

DECAL

Lube, Spanish

2шт.

31

86600540

DECAL

ATTENTION, This Case Contains Your Operator's Manuals, English

1шт.

31

86604288

DECAL

ATTENTION, This Case Contains Your Operator's Manuals, French

1шт.

31

86604289

DECAL

ATTENTION, Spanish

1шт.

32

87041060

WARNING DECAL

Transport/Roading, English

1шт.

32

87042011

WARNING DECAL

WARNING, French

1шт.

32

87042012

WARNING DECAL

Spanish

1шт.

33

87049205

WARNING DECAL

PTO Shielding, English

1шт.

33

87053157

DECAL

French

1шт.

33

87053158

DECAL

Decal, Spanish

1шт.

34

86600540

DECAL

ATTENTION, This Case Contains Your Operator's Manuals, English

1шт.

34

86604288

DECAL

ATTENTION, This Case Contains Your Operator's Manuals, French

1шт.

34

86604289

DECAL

ATTENTION, Case Contains Manual, Spanish

1шт.

Выбрано товаров: 87
