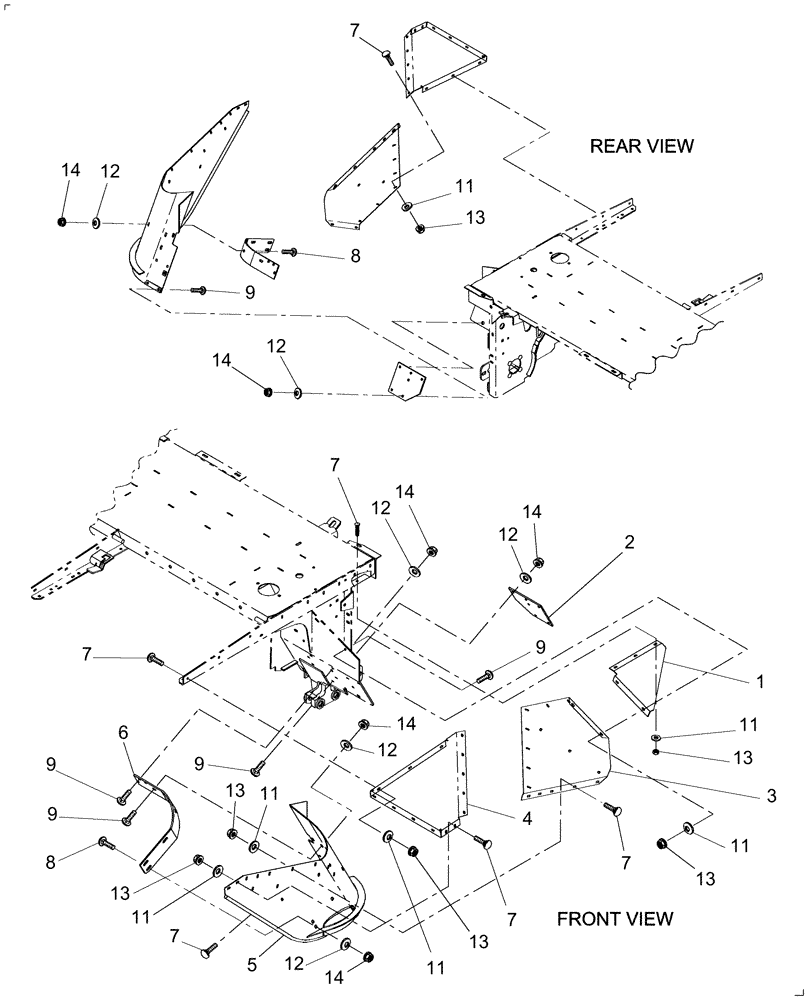

Запчасти Case IH DC132F (08.01) - SHIELDING, LEFT SIDE (08) - SHEET METAL

1

86627887

BRACE

1шт.

2

86631739

PLATE

1шт.

3

87047999

SHEET

1шт.

4

86632223

SUPPORT

1шт.

5

87047995

SHEET

1шт.

6

87399534

SUPPORT

1шт.

7

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

18шт.

8

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

5шт.

9

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

8шт.

10

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

2шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

20шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

13шт.

13

86521605

FLANGE NUT,5/16"-18, Cl 5

20шт.

14

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

13шт.
