Запчасти Case IH DC132F (07.05) - HYDRAULIC CYLINDER, TILT, MONARCH (07) - HYDRAULICS

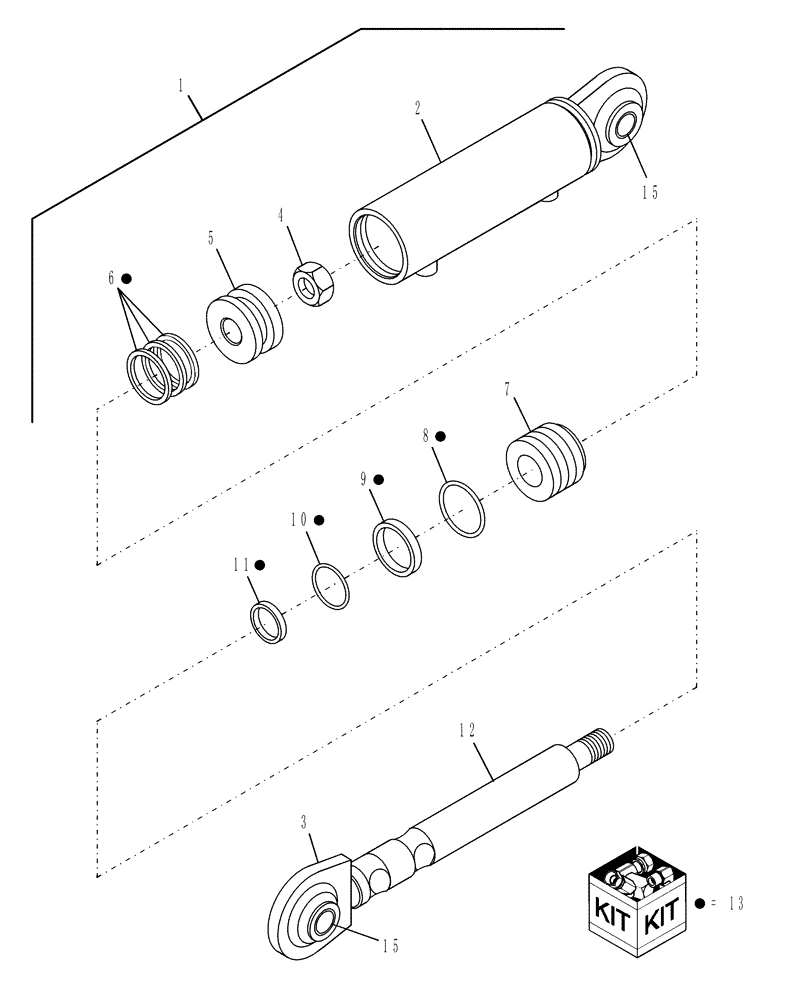

Схема запчастей Case IH DC132F - (07.05) - HYDRAULIC CYLINDER, TILT, MONARCH (07) - HYDRAULICS
9
12
6
1
15
5
10
11
7
3
15
8
2
4

Артикул

Название

Примечание

Количество

1

87394809

HYDRAULIC CYLINDER,31.75mm Rod, 103.63mm Stroke

Tilt

1шт.

87394809R

REMAN-HYD CYLINDER

DC132F (9/08-)

1шт.

87394809C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

87025738

PISTON ROD

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

87025737

PISTON

1шт.

6

86553483

SEAL

Three-piece

1шт.

7

87025720

HEAD

1шт.

8

235782

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

9

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Back-up, 1.772" ID x .043" Thk

1шт.

10

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

1шт.

11

529340

SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk

Wiper

1шт.

12

87026834

ROD

1шт.

13

87025441

SEAL KIT

Kit, Includes: Ref's 6, 8, 9, 10, and 11

1шт.

14

854071

BREATHER

Vent Plug

1шт.

Not Shown

1шт.

15

87580646

BUSHING,19.05mm ID x 34.92mm OD x 34.92mm L

2шт.

Выбрано товаров: 18
