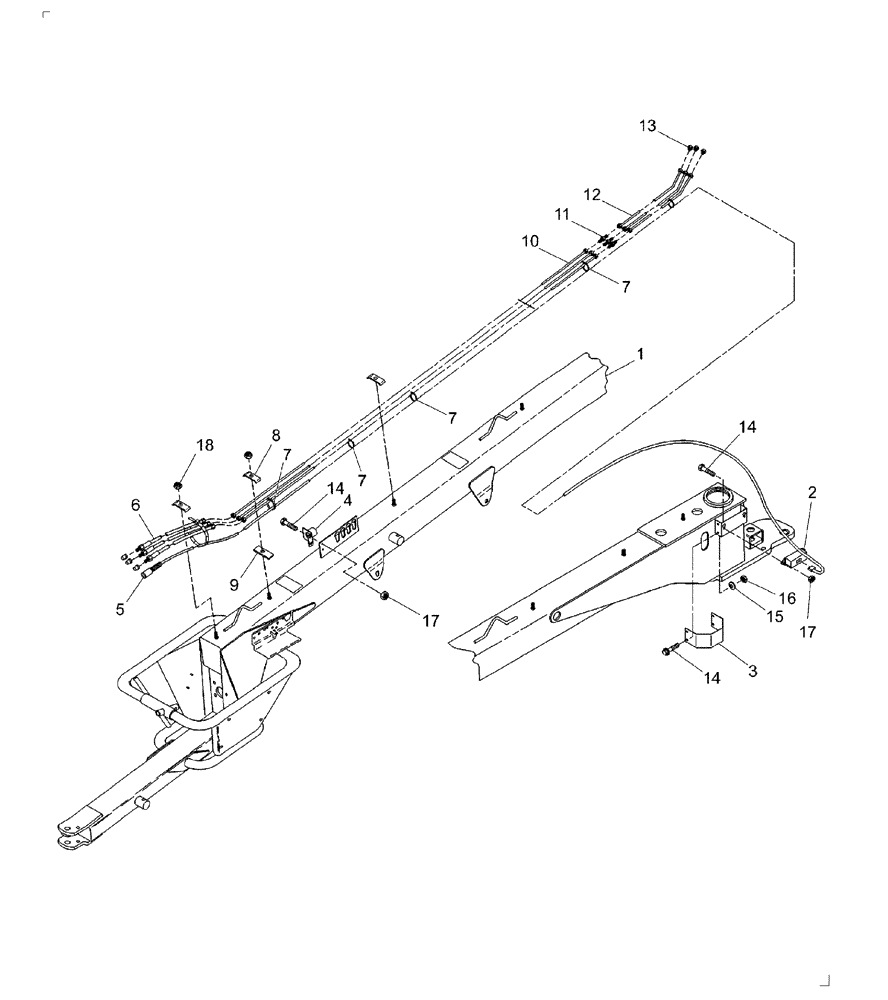

Запчасти Case IH DC132F (07.01) - STANDARD TONGUE, HYDRAULIC AND ELECTRIC (07) - HYDRAULICS

1

86572845

TONGUE

1шт.

2

86561136

MODULE

, Years: -01-SEP-11

1шт.

2

87537164

WIRE HARNESS

, Start Year: 01-SEP-11

1шт.

3

86567415

COVER

, Years: -01-SEP-11

1шт.

4

9611467

HOLDER

1шт.

5

86560194

WIRE HARNESS

1шт.

6

86539888

HOSE,9.53mm ID x 2489.2mm L

3шт.

7

14560287

CABLE TIE,207.00mm L

COLLAR

14шт.

8

86571694

CLAMP

9шт.

9

765394

PAD,19.8mm ID x 31.8mm W x 101.6mm L

8шт.

10

86538795

HYD TUBE,12.70 mm OD x 2805 mm L

3шт.

11

128822

UNION,3/4" - 16 JIC x 3/4" - 16 JIC

3шт.

12

86538796

HYD TUBE,12.70 mm OD x 1855, 46.1 mm L

3шт.

13

86511868

PLUG,3/4" - 16 JIC

3шт.

14

86521550

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

Not Needed For Ref. 2 & 3 After 09/2011

1шт.

15

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

, Years: -01-SEP-11

4шт.

16

7770

NUT,Hex, 1/4 - 20, Cl 5

, Years: -01-SEP-11

4шт.

17

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

18

86521609

FLANGE NUT,Flg, 3/8"-16

9шт.
