Запчасти Case IH DC132F (01.02) - PRIMARY PTO, REAR HALF, NOT FOR SWIVEL HITCH (01) - PTO DRIVE SHAFT

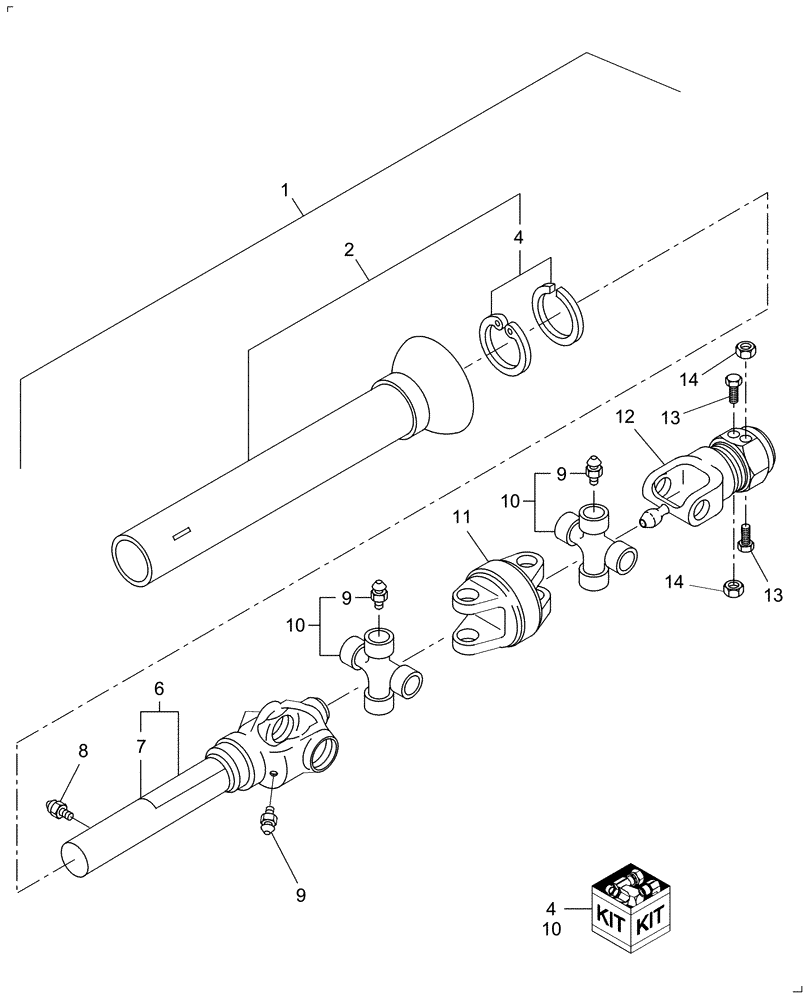

Схема запчастей Case IH DC132F - (01.02) - PRIMARY PTO, REAR HALF, NOT FOR SWIVEL HITCH (01) - PTO DRIVE SHAFT
9
14
8
10
11
6
13
1
4
12
2
4
14
9
13
10
10
9
7

Артикул

Название

Примечание

Количество

1

87056347

REAR PTO ASSY

Half, Includes: Ref. 2 - 12

1шт.

2

87056312

GUARD ASSY.

Set, Plastic, Includes: Inner & Outer Guards

1шт.

4

87050379

REPAIR KIT

Nylon Bearing, Includes: (1) Nylon Bearing & (1) Retaining Ring

1шт.

6

86592684

YOKE

Tube & Slip Sleeve, Includes: Ref. 7

1шт.

7

849472

DANGER DECAL

Shield Missing, English

1шт.

8

86542773

LUBE NIPPLE

1/4" - 28 Short

1шт.

9

88775

LUBE NIPPLE,1/4"-28

Straight

3шт.

10

86520873

BEARING ASSY

Kit, Includes: Ref. 9

2шт.

11

86520874

UNIVERSAL JOINT

Center, CAT 6, 50°

1шт.

12

86539234

YOKE

1шт.

13

280620

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

14

88871

NUT,1/2"-13, GC

2шт.

Выбрано товаров: 12
