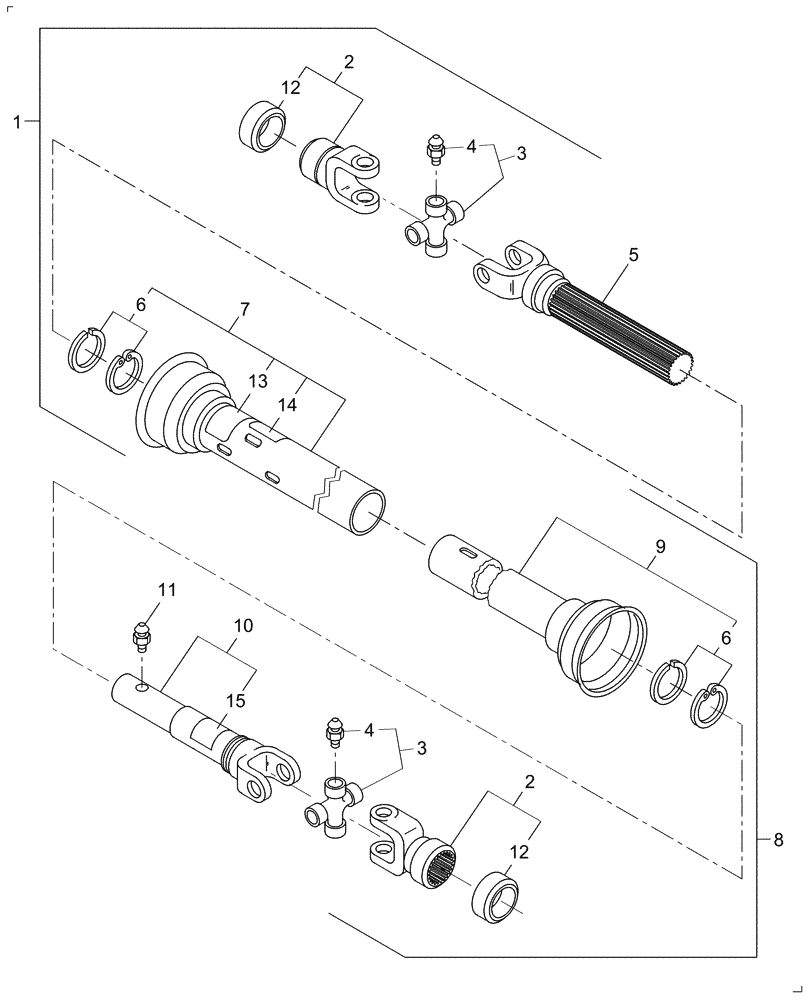

Запчасти Case IH DC132F (01.01[02]) - PRIMARY PTO, SWIVEL TONGUE, 2 POINT HITCH (01) - PTO DRIVE SHAFT

1

87345107

FRONT PTO ASSY

1-3/8", Includes: Ref. 2 - 7

1шт.

1

87345105

FRONT PTO ASSY

1-3/4", Includes: Ref. 2 - 7, Option

1шт.

2

86560318

YOKE

Front Lock, 1-3/8", Includes Ref. 12

2шт.

2

87737194

YOKE

Front Lock, 1-3/4", Includes Ref. 12, Option

1шт.

3

86520896

BEARING ASSY

Bearing, Includes: Ref. 4

2шт.

4

87414

LUBE NIPPLE,1/4" - 28

2шт.

5

86560319

YOKE

W/Shaft

1шт.

6

87050379

REPAIR KIT

Nylon Bearing

2шт.

7

87345115

GUARD

Set, Plastic, Includes: Inner & Outer Shields, Plus Ref. 13 & 14

1шт.

8

87345104

REAR PTO ASSY

Half, 1-3/8", Includes: Ref. 2, 3, 4, 6, 9, & 10

1шт.

9

87345115

GUARD

Set, Plastic, Includes: Inner & Outer Shields, Plus Ref. 13 & 14

1шт.

10

86560322

YOKE

Tube & Sleeve, Includes: Ref. 15

1шт.

11

86542773

LUBE NIPPLE

Press Fit

1шт.

12

86534533

REPAIR KIT

Auto-Lok, 1-3/8"

2шт.

Includes: (1) Coil Spring, (1) Collar, (2) Pawls, (1) Retaining Ring, (4) Balls & Instructions.

1шт.

12

86539714

REPAIR KIT

Auto-Lok, 1-3/4", Option

1шт.

Includes: (1) Coil Spring, (1) Collar, (2) Pawls, (1) Retaining Ring, (4) Balls & Instructions.

1шт.

13

849471

DANGER DECAL

Rotating Driveline, English

1шт.

13

849482

DANGER DECAL

Rotating Driveline, French

1шт.

13

9801260

DANGER DECAL

DANGER, Rotating Driveline, Spanish

1шт.

14

86593134

DECAL

Lube, English

1шт.

14

86593136

DECAL

Lube, French

1шт.

14

86593135

DECAL

Lube, Spanish

1шт.

15

849472

DANGER DECAL

Shield Missing, English

1шт.

15

849483

DANGER DECAL

Shield Missing, French

1шт.

15

9801256

DANGER DECAL

DANGER, Shield Missing, Spanish

1шт.
