Запчасти Case IH DC132F (01.01[01]) - PRIMARY PTO, SWIVEL TONGUE, DRAWBAR HITCH (01) - PTO DRIVE SHAFT

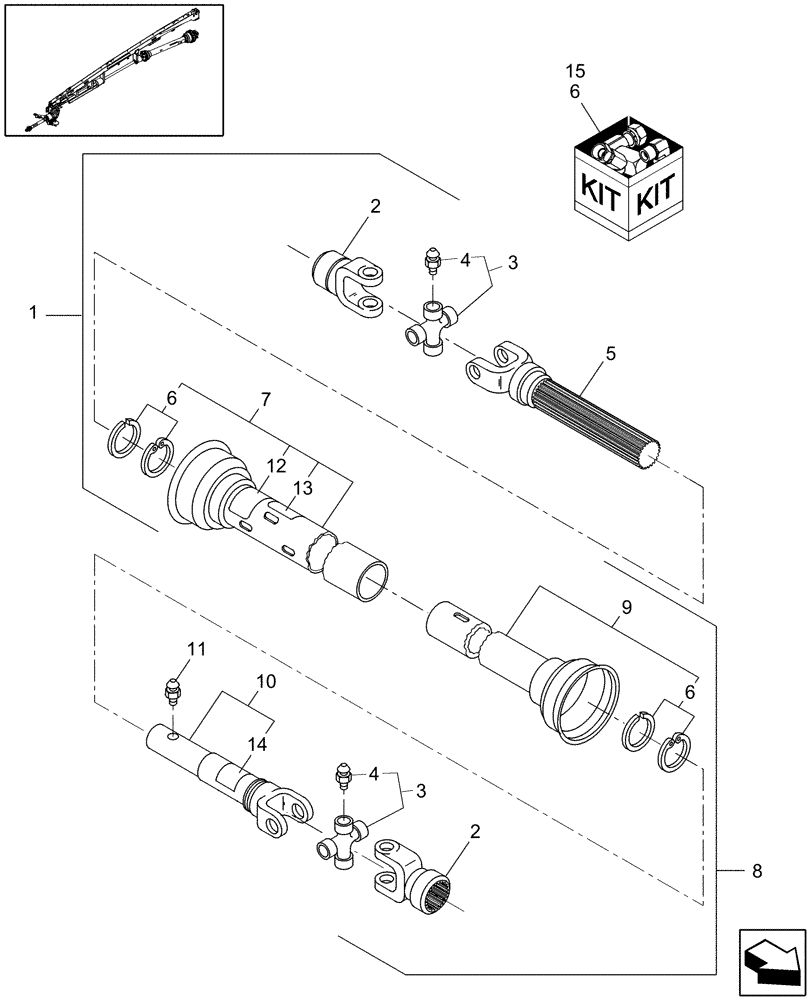

Схема запчастей Case IH DC132F - (01.01[01]) - PRIMARY PTO, SWIVEL TONGUE, DRAWBAR HITCH (01) - PTO DRIVE SHAFT
13
3
10
5
12
3
9
4
6
6
7
14
4
11
15
2
6
1
2
8

Артикул

Название

Примечание

Количество

1

87061005

FRONT PTO ASSY

Half, 1-3/8", Includes Ref 2,3,5,6,9,12 & 13

1шт.

1

87061004

FRONT PTO ASSY

Half, 1-3/4"

1шт.

2

86560318

YOKE

Front Lock Assy., 1-3/8"

2шт.

Includes: (1) Retaining Ring, (1) Spring, (1) Collar, (2) Pawls, (4) Balls & Instructions.

1шт.

2

87737194

YOKE

Front Lock Assy., 1-3/4"

1шт.

3

86520896

BEARING ASSY

2шт.

4

87414

LUBE NIPPLE,1/4" - 28

1шт.

5

86603737

YOKE

& Shaft

1шт.

6

87050379

REPAIR KIT

Inner, Rear

1шт.

6

87039062

REPAIR KIT

Outer, Front

1шт.

7

87060071

GUARD ASSY.

Set, Inner & Outer

1шт.

8

87061003

REAR PTO ASSY

Includes Ref. 2,3,6,9,10,13 & 15

1шт.

9

87060071

GUARD ASSY.

Set, Inner & Outer

1шт.

10

86603736

YOKE,2.50" OD x 11.31" L

& Tube

1шт.

11

86542773

LUBE NIPPLE

1шт.

12

849471

DANGER DECAL

Rotating Driveline, English

1шт.

12

849482

DANGER DECAL

Rotating Driveline, French

1шт.

12

9801260

DANGER DECAL

DANGER, Rotating Driveline, Spanish

1шт.

13

86593134

DECAL

Lube, English

1шт.

13

86593136

DECAL

Lube, French

1шт.

13

86593135

DECAL

Lube, Spanish

1шт.

14

849472

DANGER DECAL

Shield Missing, English

1шт.

14

849483

DANGER DECAL

Shield Missing, French

1шт.

14

9801256

DANGER DECAL

Shield Missing, Spanish

1шт.

15

86534533

REPAIR KIT

Services 1-3/8" Yoke

1шт.

15

86539714

REPAIR KIT

Services 1-3/4" Yoke

1шт.

Выбрано товаров: 26
