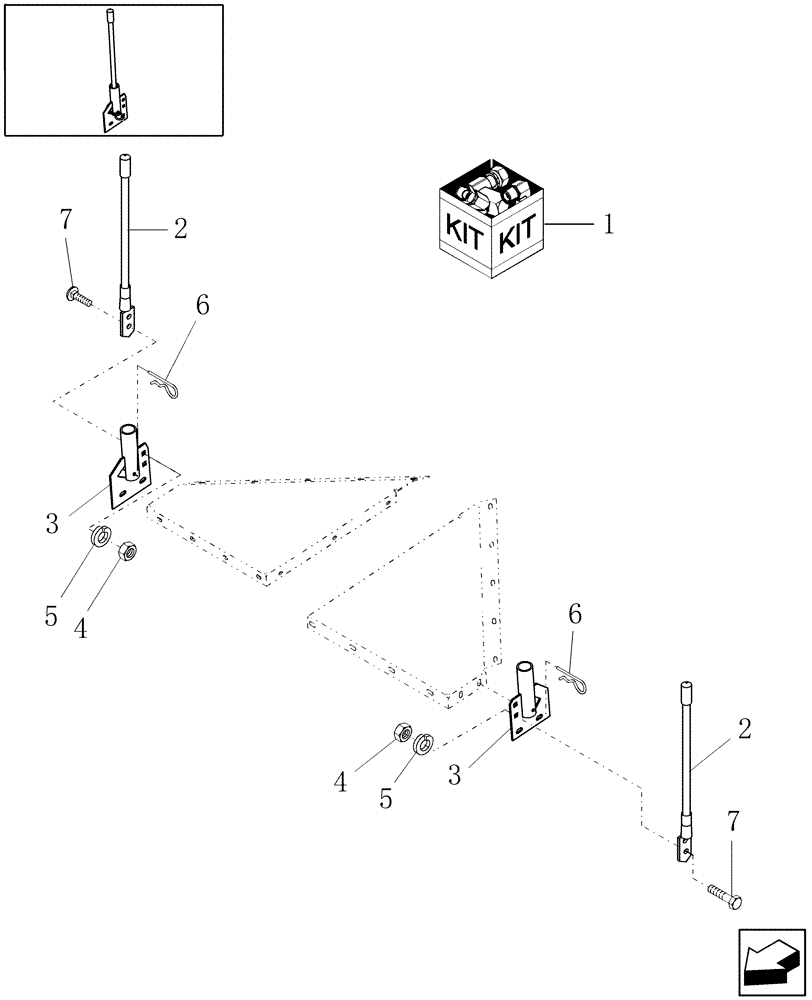

Запчасти Case IH DC132F (18.05) - CORNER MARKER KIT Attachments

1

716791026

DIA KIT, HARVESTER

Corner Marker; Includes: Ref. 2 Thru 7

1шт.

2

86600268

ROD

2шт.

3

86581970

PLATE

2шт.

4

86521605

FLANGE NUT,5/16"-18, Cl 5

8шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

6

755961

COTTER PIN

2шт.

7

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

8шт.
