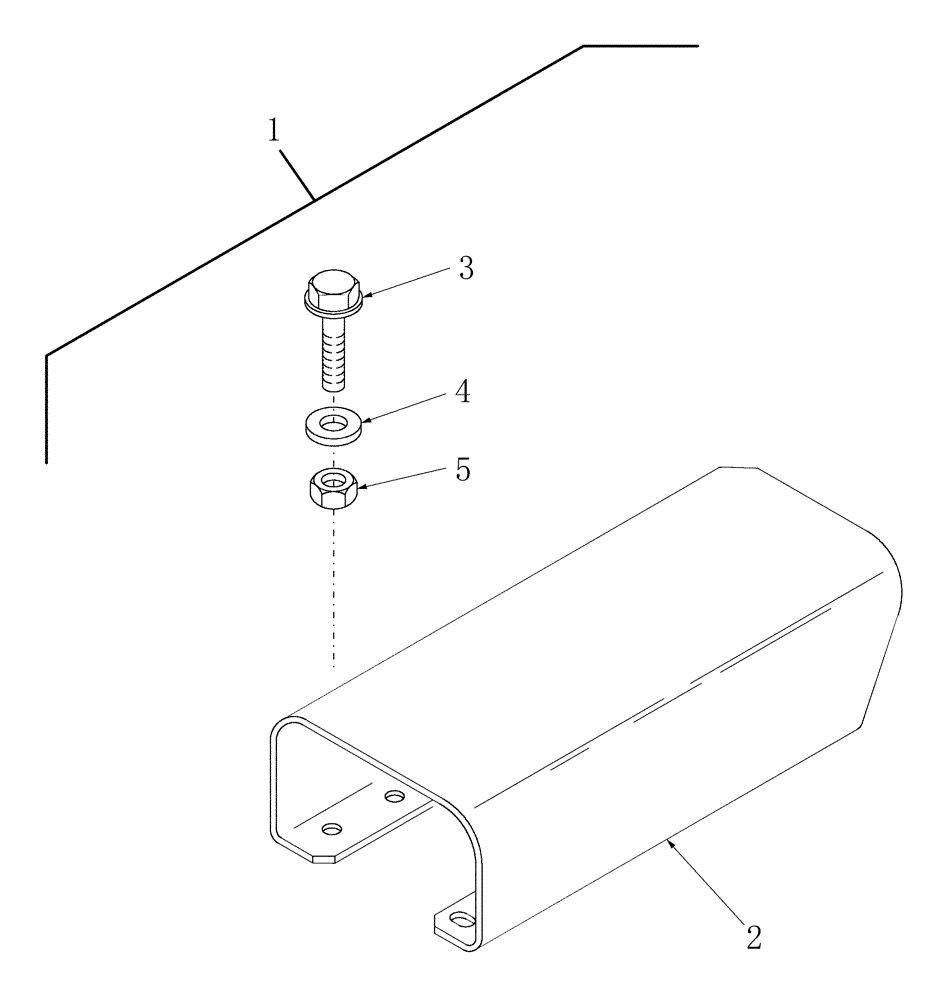

Запчасти Case IH DC132F (18.02) - TIRE BUMPER EXTENSION KIT Attachments

1

716422006

DIA KIT, ADD PROD

Tire Bumper Extension. Includes: Ref. 2 - 5 & Instructions

1шт.

2

86625873

BUMPER

Extension

2шт.

3

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

8шт.

4

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

5/8" I.D.

16шт.

5

86521608

FLANGE NUT,Flg, 5/8"-11, G5

8шт.
