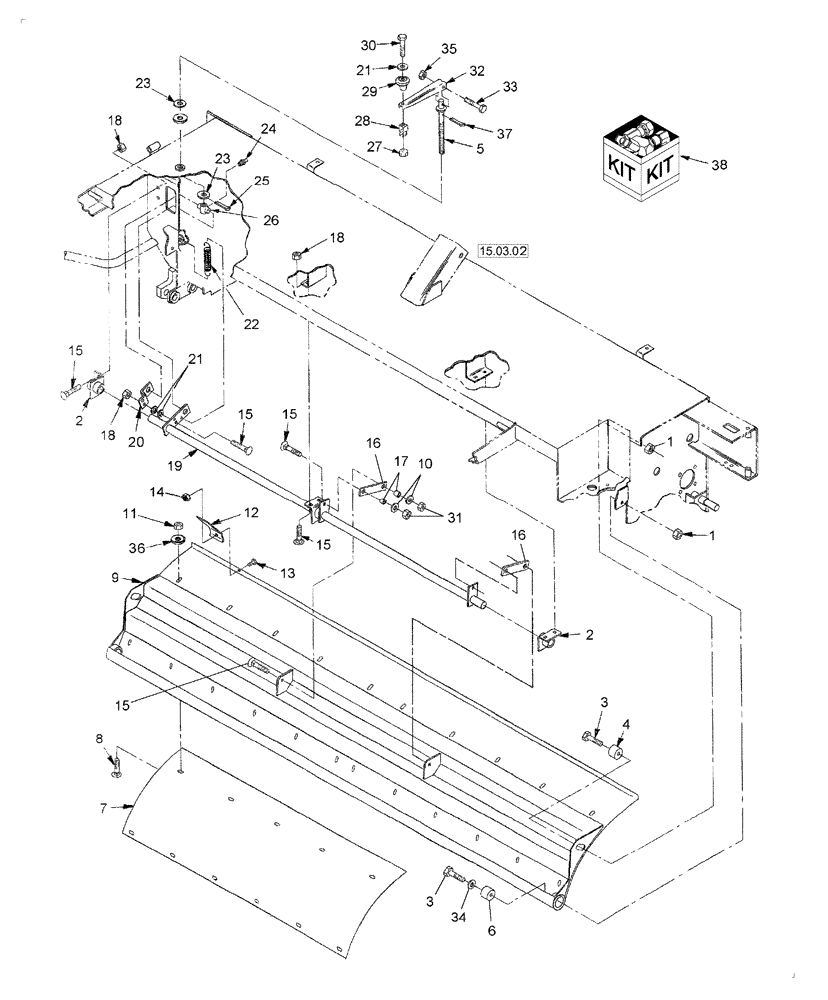

Запчасти Case IH DC102F (15.05) - ROTOR HOOD (15) - CROP CONDITIONING

1

88871

NUT,1/2"-13, GC

2шт.

2

86551760

SLEEVE

2шт.

3

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

4

9849365

SPACER,13.49mm ID x 19.05mm OD x 18.24mm L

2шт.

5

86543106

ROD

1шт.

6

86592518

SPACER

2шт.

7

86553783

METAL LINER

Smooth

2шт.

7

86548770

METAL LINER

Textured

2шт.

8

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

9

86543338

HOOD

1шт.

10

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

11

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

12

86626405

INDICATOR

1шт.

13

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

1шт.

14

280129

NUT,1/4"-20

1шт.

15

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

12шт.

16

86551759

CONNECTING LINK

2шт.

17

516579

BUSHING,9.75mm ID x 15.82mm OD x 7.14mm L

4шт.

18

247780

SERRATED NUT,Flg, USR, 3/8"-16

8шт.

19

86551756

PIPE

1шт.

20

86551761

ANGLE

1шт.

21

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

5шт.

22

143224

SPRING,Extension, 1" OD x 5-7/16" L

1шт.

23

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

3шт.

24

87414

LUBE NIPPLE,1/4" - 28

1шт.

25

164086

COTTER PIN

Hardened, 3/16" x 1-1/2"

1шт.

26

9622890

NUT

3/4"-10, Lift

1шт.

27

9823743

FLANGE NUT,Flg, 5/16"-18

1шт.

28

223162

CLIP

1шт.

29

33781

KNOB

1шт.

30

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

31

86521609

FLANGE NUT,Flg, 3/8"-16

4шт.

32

86630976

HANDLE

1шт.

33

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

34

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

2шт.

35

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

36

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

22шт.

37

164086

COTTER PIN

1шт.

38

716537036

DIA KIT, HARVESTER

Textured Liner, 7 Disc, Includes Ref. 7, 8, 11 & 36

1шт.
