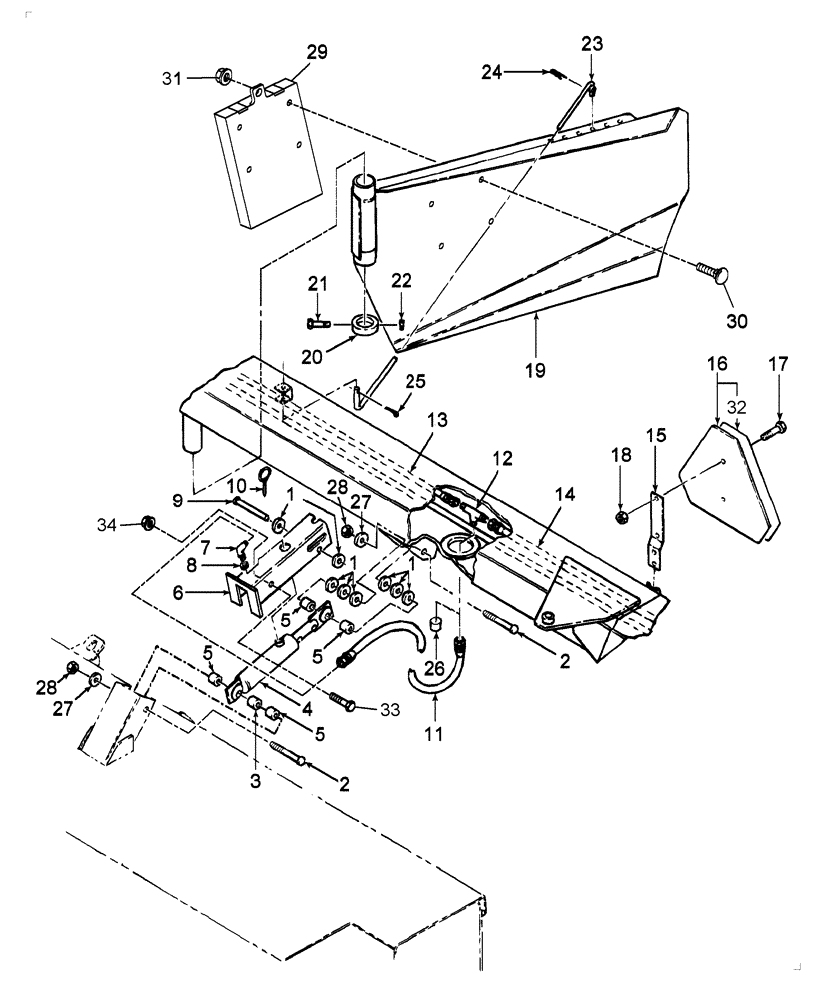

Запчасти Case IH DC102F (12.06) - TRAILFRAME, CENTER (12) - MAIN FRAME

1

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

2

86508734

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

2шт.

3

87033961

BUSHING

2шт.

4

87394809

HYDRAULIC CYLINDER,31.75mm Rod, 103.63mm Stroke

Tilt, Monarch

1шт.

87394809R

REMAN-HYD CYLINDER

DC102, DC102F, BOTH (8/08-)

1шт.

87394809C

CORE-HYD CYLINDER

Return Number

1шт.

Cylinder head will protrude beyond end of barrel

1шт.

5

86599380

SPACER

13/16" ID x 1-1/4" OD x 15/16" L

4шт.

6

86627885

CHAMBER

Tilt

1шт.

7

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 8

1шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

86510381

PIN

1шт.

10

270184

LINCH PIN,6.35mm OD

1шт.

11

176085

FLEXIBLE HOSE,9.53mm ID x 571.5mm L, SAE 100R1

1шт.

12

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

13

86515766

FLEXIBLE HOSE,0.38" ID x 91.00", SAE 100R1

1шт.

14

86557715

FLEXIBLE HOSE,7112.00 mm x 9.52, SAE 100R1

.375" ID x 260" L

1шт.

15

195035

SUPPORT

SMV Spade

1шт.

16

86547710

EMBLEM

KIT SMV

1шт.

17

84821

SCREW,Truss HD, #10 - 24 x 1/2"

2шт.

18

523310

SERRATED NUT,Flng, #10 - 24, Gr 5

Flg, USR, #10-24

2шт.

19

86627018

SHIELD

RH

1шт.

19

86627020

SHIELD

LH

1шт.

20

86545693

COLLAR

2шт.

21

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

2шт.

22

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.

22

88902

NUT,3/8"-16

2шт.

23

86506511

ADJUSTMENT ROD

2шт.

24

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hair

2шт.

25

394818

COTTER PIN,M5 x 25

2шт.

26

116070

CAP

1шт.

27

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

28

280375

NUT,3/4"-10, GC

2шт.

29

86613674

CASE

Manual

1шт.

30

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

4шт.

31

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

32

86547711

DECAL,SMV

SMV

1шт.

33

86507008

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

1шт.

34

9823743

FLANGE NUT,Flg, 5/16"-18

1шт.
