Запчасти Case IH DC101F (14.01) - CUTTERBAR (14) - CROP CUTTING

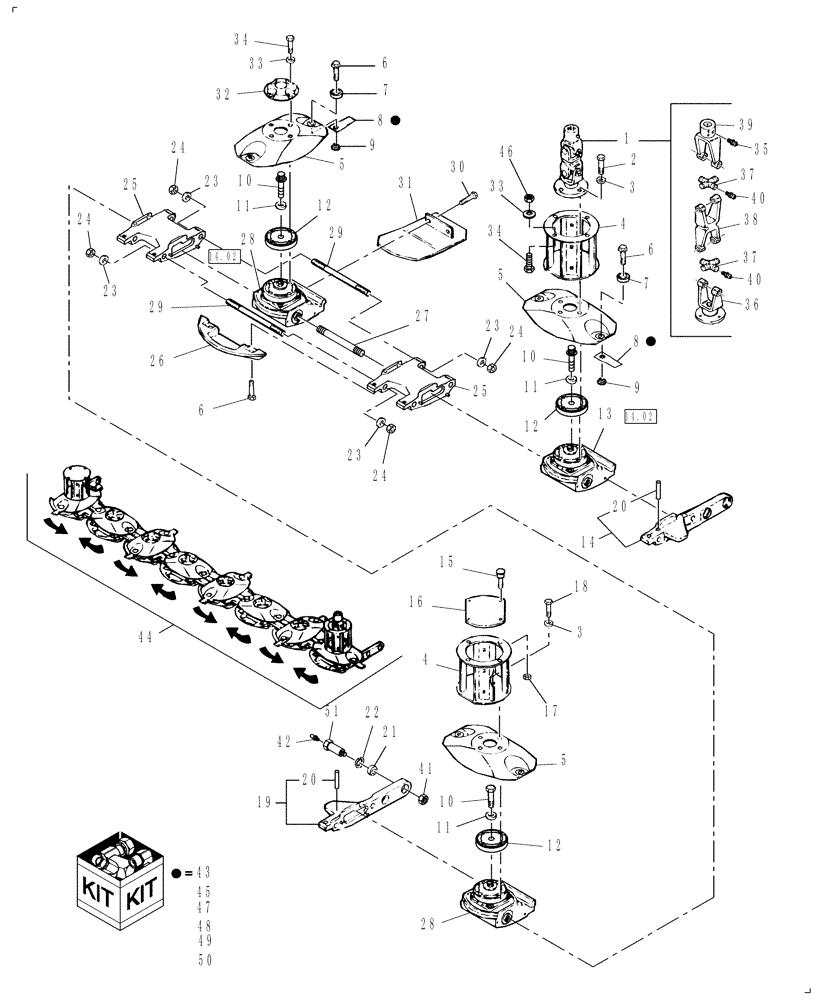

Схема запчастей Case IH DC101F - (14.01) - CUTTERBAR (14) - CROP CUTTING
38
3
47
24
8
12
29
36
1
11
51
28
34
46
14.02
26
18
30
23
6
31
40
27
14.02
10
2
10
28
48
6
5
44
3
8
29
19
9
7
5
11
17
16
35
42
23
25
34
22
13
33
43
25
20
23
24
32
37
37
49
50
41
45
40
14
10
5
24
21
6
20
24
23
12
33
9
39
7
4
12
4
15
11

Артикул

Название

Примечание

Количество

1

87032038

PTO SHAFT

1шт.

2

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

4шт.

3

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

(33/64" ID x 1" OD x .135" Thk)

8шт.

4

87040772

DRUM

2шт.

5

87646406

DISC

8шт.

6

86515925

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

32шт.

7

86510384

CAP

Bolt Protector

16шт.

8

9847683

BLADE,Knife CW

CW, 7° Twist

8шт.

8

86621872

BLADE

CW, 14° Twist

8шт.

8

87029587

BLADE

CW, 14° Twist, Over-serrated

8шт.

8

86532078

KNIFE

V

16шт.

8a

9847684

BLADE,Knife CCW

CCW, 7° Twist

8шт.

8a

86621873

BLADE

CCW, 14° Twist

8шт.

8a

87029588

BLADE

CCW, 14° Twist, Over-serrated

8шт.

9

87725066

NUT

16шт.

10

86600611

PREV TORQUE BOLT,12 Pt Flg, 5/8" - 11 x 1.50"

8шт.

11

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

Hardened, Special, M16

8шт.

12

87044113

HUB ASSY.

8шт.

13

0C

ORDER COMPONENTS

Module, Control, CW

4шт.

14

86640565

ARM

LH, Includes: Ref. 20

1шт.

15

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

16

86631895

COVER

1шт.

17

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

18

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

19

86631408

ARM

RH, Includes: Ref. 20

1шт.

20

86515496

GROOVED PIN,9.53mm OD x 19.05mm L

Heat Treated, 3/8" x 3/4"

32шт.

21

87659928

BUSHING,25.4mm ID x 36.5mm OD x 22.23mm L

4шт.

22

271429

SNAP RING,1.625", Int, #162

4шт.

23

86512328

WASHER,19.46mm ID x 35.05mm OD x 3.43mm Thk

32шт.

24

86518194

NUT,3/4"-10, G8

32шт.

25

87044107

SPACER

Includes Pins, Ref 20 (4 per Spacer)

7шт.

26

87047845

STONEGUARD

Guard

8шт.

27

86519042

SHAFT

248mm

7шт.

27

9861804DS

GREASE

1шт.

28

0C

ORDER COMPONENTS

Module, Control, CCW

4шт.

29

86501934

THREADED ROD

3/4" x 12-13/64"

16шт.

30

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

16шт.

31

87047426

SKID/SHOE

8шт.

31

84141953

SKID/SHOE

HD HT, For Abrasive Soil Conditions

8шт.

31

87622885

SHOE

High Stubble

8шт.

32

9828165

CAP

See Also: Fig 14.03

6шт.

33

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

26шт.

34

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

26шт.

35

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

3шт.

36

86585339

YOKE

& Plate

1шт.

37

86515563

BEARING ASSY,27.03mm Cap Dia, 63.75mm L

2шт.

38

86515564

YOKE

1шт.

39

86623800

YOKE

1шт.

40

88775

LUBE NIPPLE,1/4"-28

2шт.

41

86557260

SPECIAL NUT

Lock, 3/4"-10

4шт.

42

87414

LUBE NIPPLE,1/4" - 28

4шт.

43

86624751

KNIFE SET

Includes (10) 14° CW Blades, Ref 8 & (10) 14° CCW Blades, Ref 8

1шт.

43

86624752

KNIFE SET

Includes (16) 14° CW Blades, Ref 8 & (16) 14° CCW Blades, Ref 8

1шт.

43

87037027

SET OF BLADES

Includes (16) 14° CCW OS Blades & (16) 14° CW OS Blades

1шт.

44

87648071

CUTTERBAR

1шт.

45

87056499

SHIM KIT

Includes: (10) Shims, NSS, & Instructions

1шт.

46

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

47

87643358

DIA KIT, HARVESTER

High Stubble

1шт.

48

87528245

KIT

CW Lifter

1шт.

48

87528249

KIT

CCW Lifter

1шт.

50

87602273

REPAIR KIT

Shock Protect Retrofit

1шт.

51

86571960

BOLT

Cutterbar Mounting

4шт.

51

87721979

BOLT

Cutterbar Mounting, Start Year: 01-JUL-09, Start Serial: Y9N083777

4шт.

Выбрано товаров: 63
