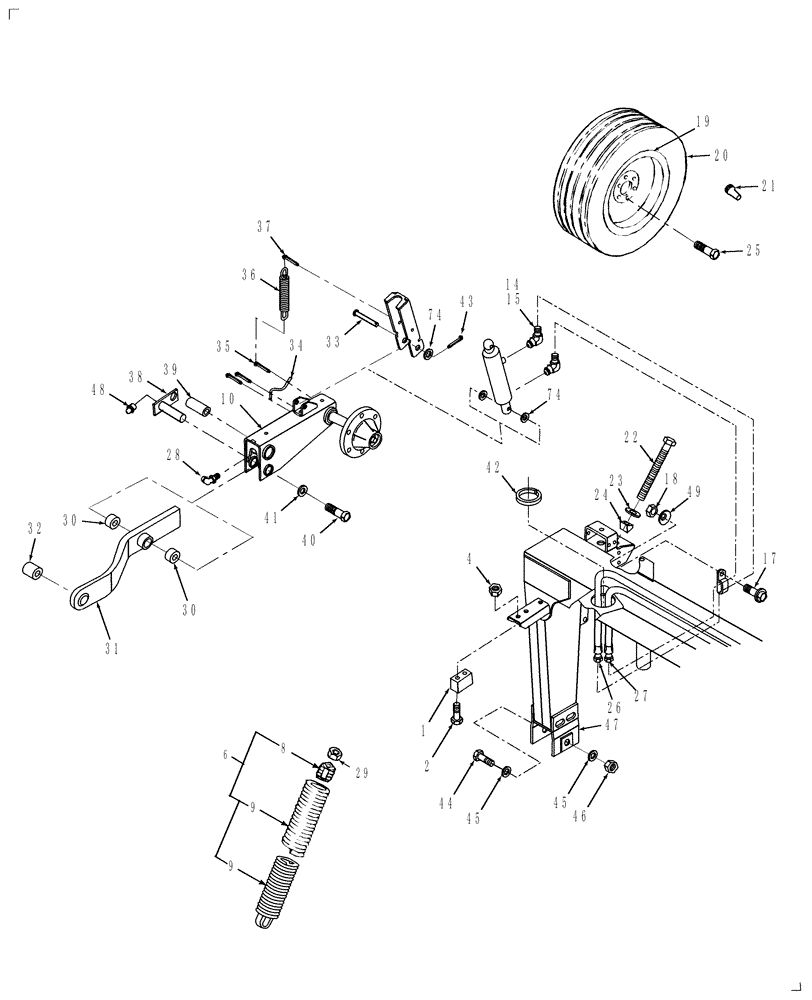

Запчасти Case IH DC101F (12.05) - TRAIL FRAME, RIGHT SIDE (12) - MAIN FRAME

1

86519305

BUMPER

1шт.

2

86521617

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

4

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.

3

87618699

STOP

1шт.

5

137142

HUB

1шт.

6

9840708

SPRING

RH, Includes: Ref. 7 - 9

1шт.

7

9840709

SPRING NUT

1шт.

8

247383

SPRING NUT

1шт.

9

226527

SPRING

Extension

1шт.

10

0C

ORDER COMPONENTS

Spindle, RH

1шт.

11

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

13

87018066

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 203.2mm Stroke

Hydraulic

1шт.

14

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 15

2шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

16

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

17

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

18

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

19

86621298

WHEEL

1шт.

20

PL

PROCURE LOCALLY

Tire, Rib Implement, 6 Ply, Tubeless, 11L x 15

1шт.

21

387897R91

VALVE STEM

1шт.

22

257460

BOLT,Hex, 5/8" - 11 x 17.12", Full Thd

1шт.

23

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8"

1шт.

24

694420

PIVOT

Spring

1шт.

25

32383

BOLT,Wheel, G5, 1/2"-20 x 13/16"

Wheel, G5, 1/2"-20 x 13/16"

6шт.

26

86515766

FLEXIBLE HOSE,0.38" ID x 91.00", SAE 100R1

1шт.

27

86515767

HYDRAULIC HOSE,0.38" ID x 166.00", SAE 100R1

1шт.

28

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.

29

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

30

9611935

BUSHING,31.83mm ID x 39.115mm OD x 26.92mm L

2шт.

31

86607958

LIFT ARM

Includes: Ref. 30

1шт.

32

86603645

SPACER

1шт.

33

87061043

PIN

1шт.

34

87618910

LATCH

1шт.

35

80756

COTTER PIN,1/8" x 3/4"

3шт.

36

86539129

SPRING

1шт.

37

87400

COTTER PIN,3/16" x 2"

1шт.

38

86632239

PIN,31.75mm OD x 125.5mm L

1шт.

39

86632243

SPACER

120.0 / 120.5 mm L

1шт.

40

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

1шт.

41

86516694

WASHER

1шт.

42

86604516

INSULATOR

Cut To Fit

2шт.

43

80753

COTTER PIN,1/4" x 1 1/2"

3шт.

44

86534764

BOLT,Hex, 1" - 8 x 8", Gr 8

1шт.

45

25769

WASHER,25.8mm ID x 49.21mm OD x 3.17mm Thk

2шт.

46

9849633

NUT,1"-8, G5

1шт.

47

86606609

FRAME

Trail

1шт.

48

87414

LUBE NIPPLE,1/4" - 28

1шт.

49

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.
