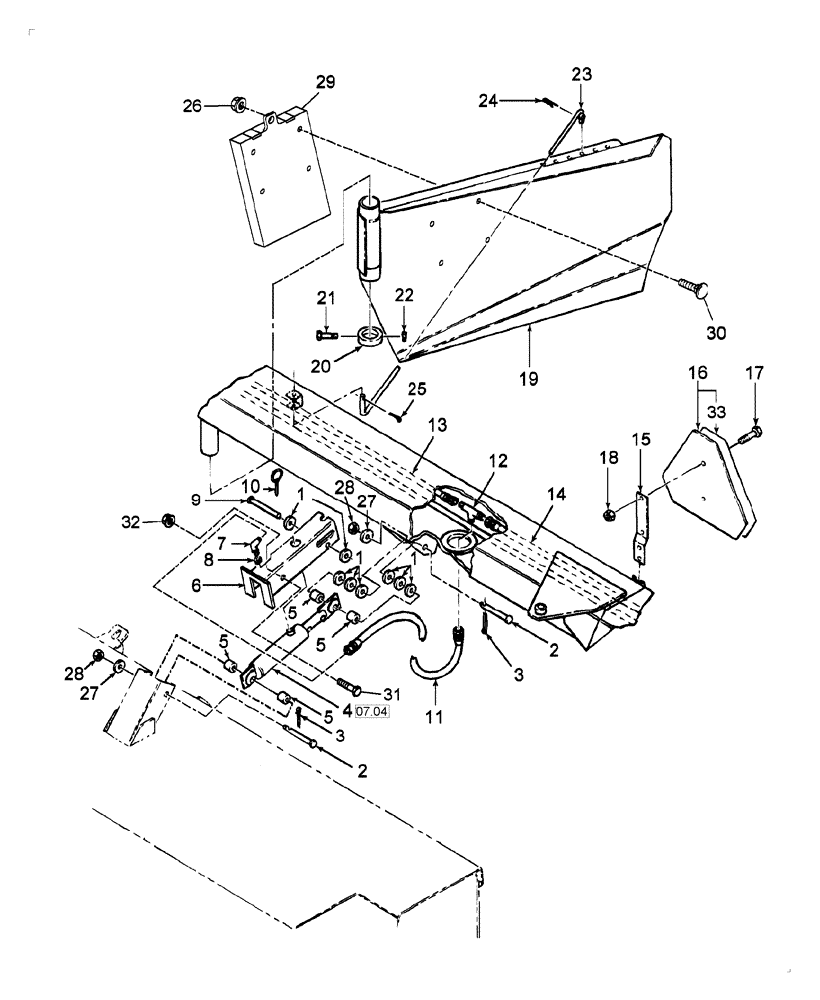

Запчасти Case IH DC101F (12.04) - TRAIL FRAME, CENTER (12) - MAIN FRAME

1

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

2

86508734

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

2шт.

3

432-1220

COTTER PIN,3/16" x 1 1/4"

2шт.

4

87394809

HYDRAULIC CYLINDER,31.75mm Rod, 103.63mm Stroke

1шт.

87394809R

REMAN-HYD CYLINDER

DC101F (8/08-)

1шт.

87394809C

CORE-HYD CYLINDER

Return Number

1шт.

5

86599380

SPACER

4шт.

6

86627885

CHAMBER

Cylinder

1шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 8

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

86510381

PIN

1шт.

10

270184

LINCH PIN,6.35mm OD

1шт.

11

176085

FLEXIBLE HOSE,9.53mm ID x 571.5mm L, SAE 100R1

1шт.

12

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

13

86515766

FLEXIBLE HOSE,0.38" ID x 91.00", SAE 100R1

1шт.

14

86557715

FLEXIBLE HOSE,7112.00 mm x 9.52, SAE 100R1

1шт.

15

195035

SUPPORT

SMV Spade

1шт.

16

86547710

EMBLEM

KIT SMV

1шт.

17

84821

SCREW,Truss HD, #10 - 24 x 1/2"

2шт.

18

523310

SERRATED NUT,Flng, #10 - 24, Gr 5

2шт.

19

86627018

SHIELD

RH

1шт.

19

86627020

SHIELD

LH

1шт.

20

86545693

COLLAR

2шт.

21

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

2шт.

22

88902

NUT,3/8"-16

2шт.

23

86506511

ADJUSTMENT ROD

2шт.

24

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hairpin, 5/32" x 2-3/4"

2шт.

25

87397

COTTER PIN,3/16" OD x 1" L

2шт.

26

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

27

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

28

280375

NUT,3/4"-10, GC

2шт.

29

86613674

CASE

1шт.

30

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

4шт.

31

86507008

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

1шт.

32

9823743

FLANGE NUT,Flg, 5/16"-18

1шт.

33

86547711

DECAL,SMV

SMV

1шт.
