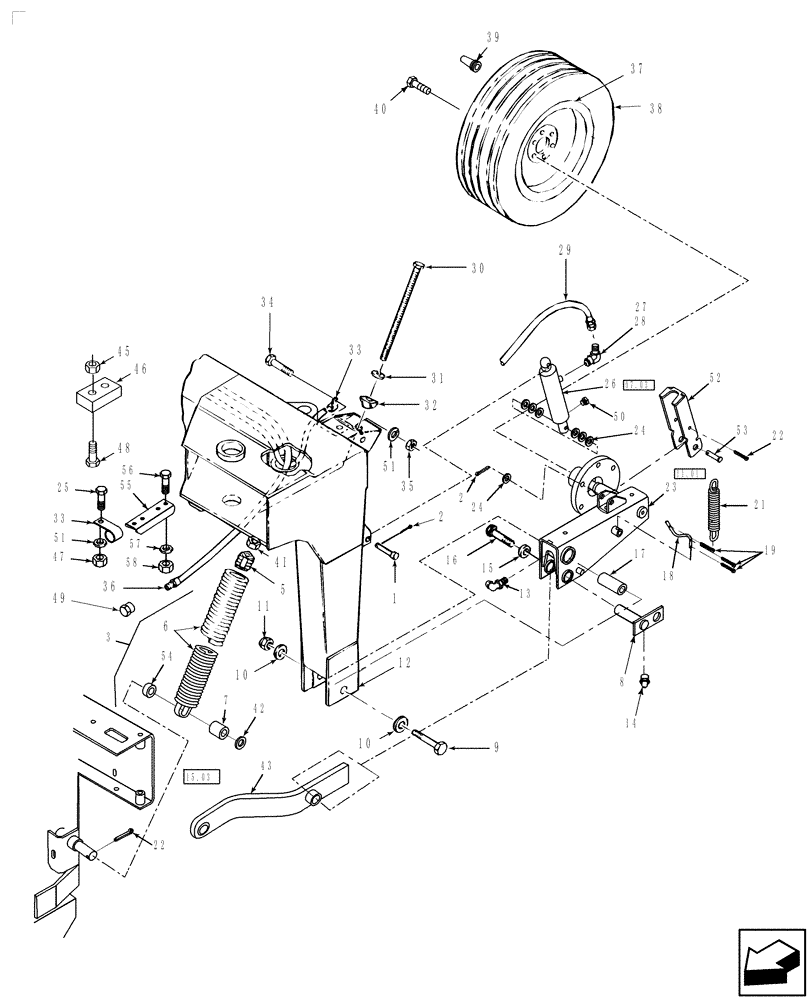

Запчасти Case IH DC101F (12.03) - TRAIL FRAME, LEFT SIDE (12) - MAIN FRAME

1

86529064

PIN

2шт.

2

80753

COTTER PIN,1/4" x 1 1/2"

3шт.

3

9840708

SPRING

LH, Includes: Ref.'s 4 - 6

1шт.

4

9840707

SPRING NUT

1шт.

5

87033682

SPRING NUT

1шт.

6

768968

SPRING

Extension

1шт.

7

254403

SPACER

1шт.

8

86632239

PIN,31.75mm OD x 125.5mm L

Rifle Drilled, Use With Ref. 14

1шт.

9

86534764

BOLT,Hex, 1" - 8 x 8", Gr 8

1шт.

10

25769

WASHER,25.8mm ID x 49.21mm OD x 3.17mm Thk

2шт.

11

9849633

NUT,1"-8, G5

1шт.

12

86608620

Trail

1шт.

13

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1шт.

14

87414

LUBE NIPPLE,1/4" - 28

1шт.

15

86516694

WASHER

1шт.

16

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

1шт.

17

86632243

SPACER

120.0 / 120.5 mm L

1шт.

18

87618910

LATCH

1шт.

19

80756

COTTER PIN,1/8" x 3/4"

3шт.

21

86539129

SPRING

1шт.

22

87400

COTTER PIN,3/16" x 2"

1шт.

23

0C

ORDER COMPONENTS

Spindle, LH

1шт.

24

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

8шт.

25

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

26

87018039

HYDRAULIC CYLINDER,28.7mm Rod, 201.17mm Stroke

1шт.

26

87018039R

REMAN-HYD CYLINDER

DC101F 8 DISC FLAIL MOWER CONDITIONER, LEFT SIDE (8/08-)

1шт.

26

87018039C

CORE-HYD CYLINDER

Return Number

1шт.

27

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 28

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

86515767

HYDRAULIC HOSE,0.38" ID x 166.00", SAE 100R1

1шт.

30

257460

BOLT,Hex, 5/8" - 11 x 17.12", Full Thd

1шт.

31

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8"

1шт.

32

694420

PIVOT

Spring

1шт.

33

578070

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

34

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

35

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

36

86557715

FLEXIBLE HOSE,7112.00 mm x 9.52, SAE 100R1

1шт.

37

87047837

WHEEL

1шт.

38

PL

PROCURE LOCALLY

Tire, Rib Implement, 6 Ply, Tubeless, 11L x 15

1шт.

39

182692

VALVE STEM

1шт.

40

32383

BOLT,Wheel, G5, 1/2"-20 x 13/16"

Wheel, G5, 1/2"-20 x 13/16"

6шт.

41

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

42

27373

WASHER,29.37mm ID x 50.8mm OD x 3.17mm Thk

2шт.

43

86607957

LIFT ARM

LH, Includes: Ref. 44

1шт.

44

9611935

BUSHING,31.83mm ID x 39.115mm OD x 26.92mm L

2шт.

45

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.

46

86519305

BUMPER

1шт.

47

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

48

86521617

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

49

116070

CAP

Oil Drain

1шт.

50

854071

BREATHER

1шт.

51

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

52

87618699

STOP

1шт.

53

87061043

PIN

1шт.

54

137142

HUB

1шт.

55

86549090

CHANNEL

1шт.

56

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

57

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

2шт.

58

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.
