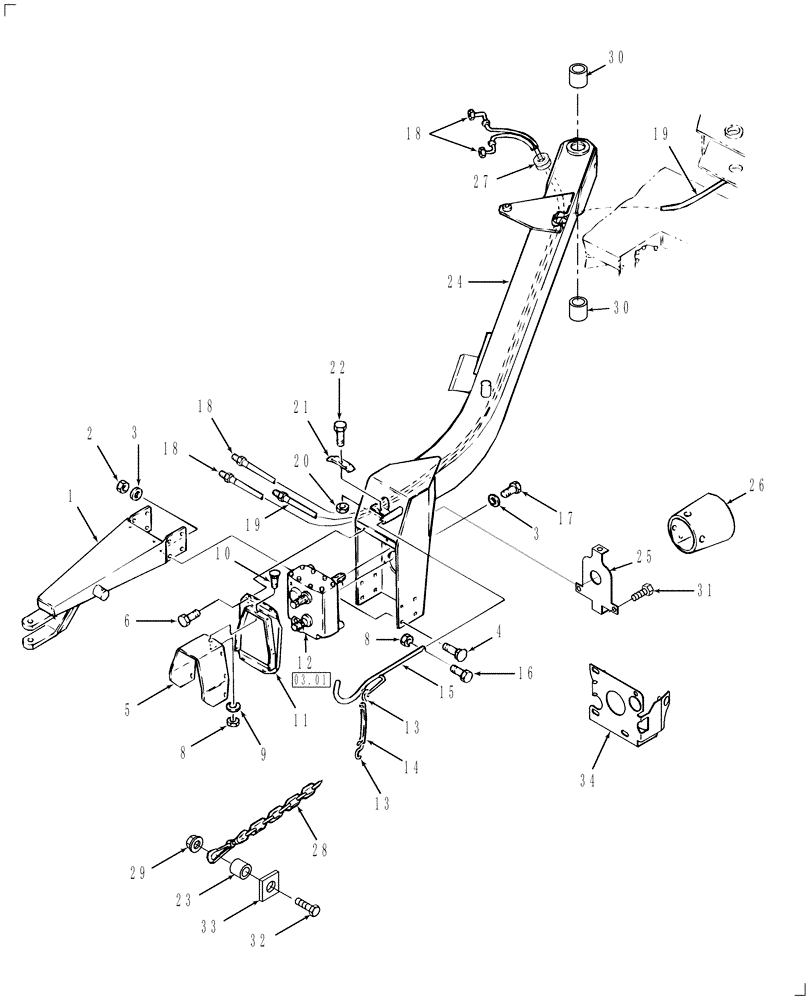

Запчасти Case IH DC101F (12.01) - TONGUE, FRONT (12) - MAIN FRAME

1

86630528

TONGUE

Front

1шт.

2

280374

NUT,Hex, 5/8" - 11, Gr 5

8шт.

3

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8"

12шт.

4

280742

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

8шт.

5

86550384

SHIELD

Rubber

1шт.

6

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

8

9823743

FLANGE NUT,Flg, 5/16"-18

8шт.

9

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

SAE, 5/16"

7шт.

10

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

7шт.

11

87042989

PLATE

1шт.

12

87567914

GEARBOX

1шт.

12

87567914R

REMAN-GEARBOX

Remanufactured GEARBOX

1шт.

12

87567914C

CORE-GEARBOX

Return No, GEARBOX

1шт.

13

115680

HOOK

2шт.

14

273672

FASTENER

1шт.

15

86627267

SUPPORT

1шт.

16

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

1шт.

17

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

4шт.

18

86557716

FLEXIBLE HOSE

225" L

2шт.

19

86557715

FLEXIBLE HOSE,7112.00 mm x 9.52, SAE 100R1

1шт.

20

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

21

86571694

CLAMP

1шт.

22

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

23

86607695

SPACER,17.48mm ID x 28.6mm OD x 20.6mm L

1шт.

24

86630531

TONGUE

Rear, Includes Ref. 30

1шт.

25

86630526

BRACKET

1шт.

Prior To 10/06

1шт.

26

86532561

SHIELD

1шт.

27

86604516

INSULATOR

1шт.

28

850116

CHAIN

Safety Tow

1шт.

29

85700693

NUT,5/8" - 11, Gr C

1шт.

30

86511199

BUSHING,69.88mm ID x 76.35mm OD x 37.3mm L

2шт.

31

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

32

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

33

87587325

PLATE

Plate

1шт.

34

87518743

SUPPORT

1шт.
