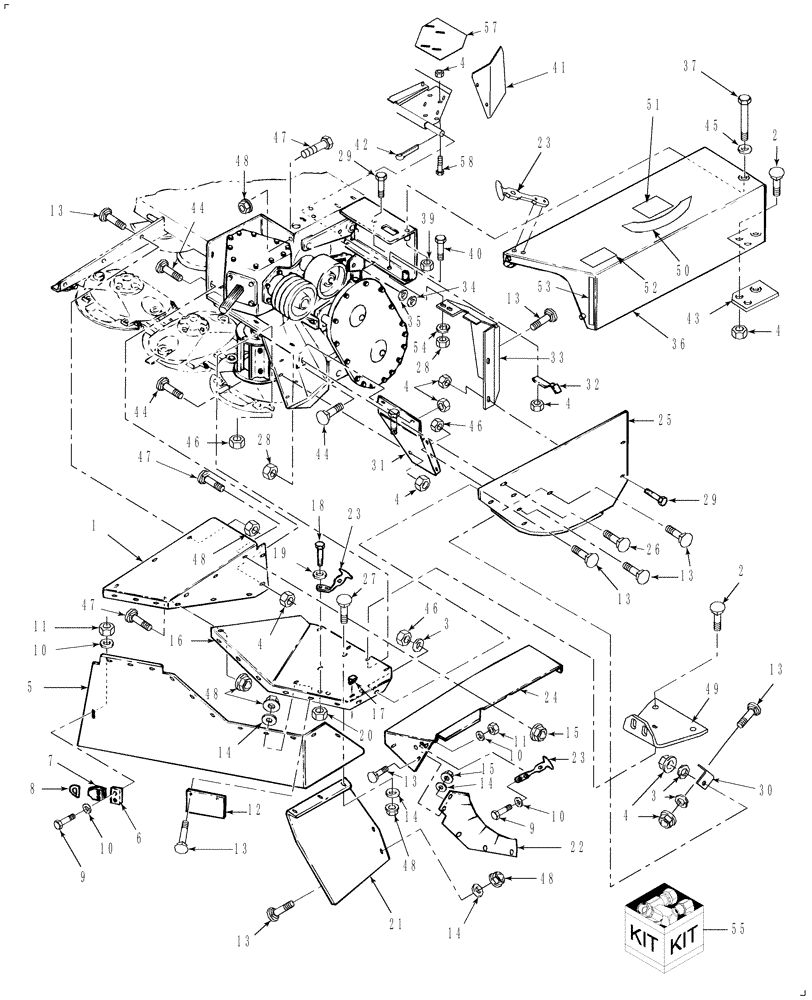

Запчасти Case IH DC101F (08.02) - SHIELDING, LH (08) - SHEET METAL

1

86639656

COVER

1шт.

2

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

4

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

5

86503933

SKIRT

Rubber, LH, Includes: Ref. 6 - 11

1шт.

6

9604628

STRAP

Back-Up

1шт.

7

9604627

STRAP

1шт.

8

9604626

RING

1шт.

9

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

5шт.

10

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

6шт.

11

280129

NUT,1/4"-20

7шт.

12

86627188

PLATE

Includes: Decal 86604890

1шт.

13

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

24шт.

14

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

SAE, 5/16"

20шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

31шт.

16

86639658

SHIELD

LH

1шт.

17

216328

BUMPER

1шт.

18

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

19

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

4шт.

20

9626558

FLANGE NUT,Flg, 1/4"-20

4шт.

21

86504855

CURTAIN

Rubber

1шт.

22

87369972

FLAP

Rubber, See Also: Ref. 55

1шт.

23

86000448

LATCH

2шт.

24

87545512

SPLASH SHIELD

Shield, See Also: Ref. 55

1шт.

25

86627067

SHEET ASSY.

LH

1шт.

26

280486

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

27

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

3шт.

28

86521607

FLANGE NUT,Flg, 1/2"-13, G5

3шт.

29

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

30

86639635

ANGLE

1шт.

31

86639637

SHIELD

1шт.

32

86639634

SPRING

1шт.

33

86543258

SUPPORT

1шт.

34

214539

WASHER,34.9mm ID x 50.8mm OD x 0.51mm Thk

1шт.

35

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

1шт.

36

87545529

SPLASH SHIELD

Cover, W/Decals

1шт.

37

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

38

425-285

FLANGE NUT,Flg, 5/16"-18, G5

4шт.

39

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.

40

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

1шт.

41

86543475

DEFLECTOR

LH

2шт.

42

432-1228

COTTER PIN,3/16" x 1 3/4"

1шт.

43

86627071

BRACKET

Flat

1шт.

44

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

45

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

46

86521605

FLANGE NUT,5/16"-18, Cl 5

12шт.

47

271288

BOLT,Hex Serr, 5/16" - 18 x 5/8", 5SPL, Full Thd

6шт.

48

145458

SERRATED NUT,5/16"-18 GR 5 ZND

8шт.

49

86543070

ANGLE

Belt

1шт.

50

80772110

WARNING DECAL

WARNING, Knife Tip

1шт.

51

86628571

WARNING DECAL

WARNING

1шт.

52

86611825

WARNING DECAL

WARNING

1шт.

53

86547782

REFLECTOR,YELLOW

Tape, Yellow Retro Reflective

1шт.

54

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

Belleville, 1/2"

2шт.

55

87373224

KIT

Shield, Includes: Ref. 22, 24, & Instructions

1шт.

Protects Secondary Plastic PTO Shielding

1шт.

56

510362

SPRING

Extension, 8"

2шт.

57

86543684

DEFLECTOR

1шт.

58

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

12шт.
