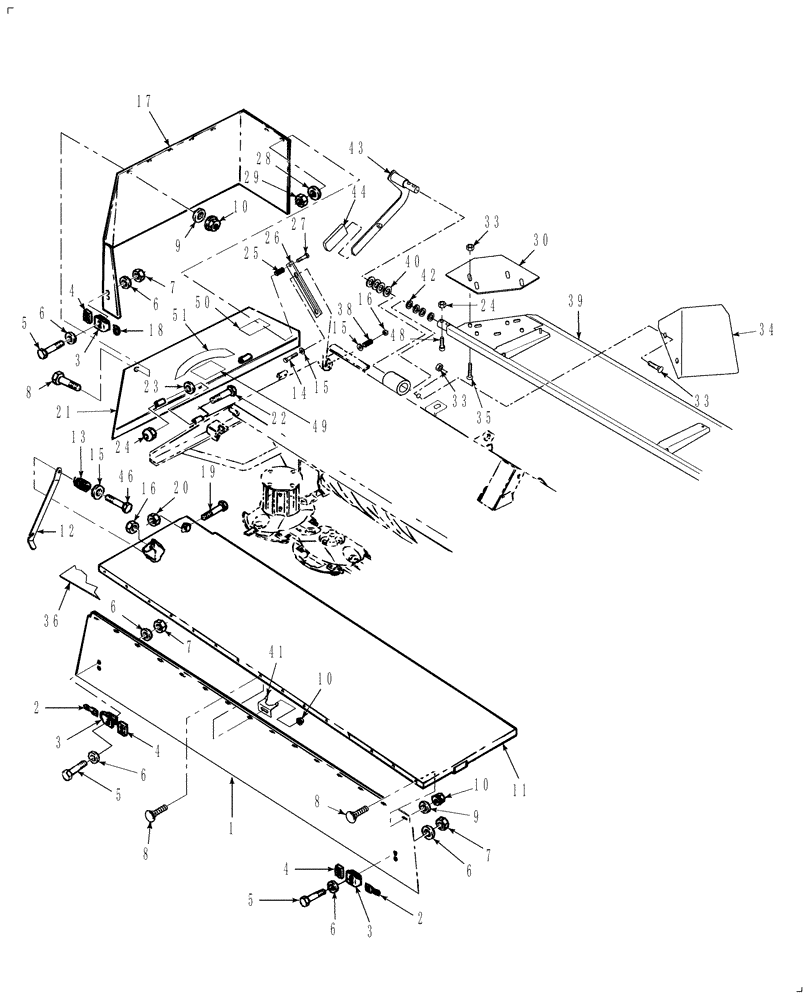

Запчасти Case IH DC101F (08.01) - SHIELDING, RH (08) - SHEET METAL

1

86503932

SKIRT

Center, Rubber Includes: Ref. 2 - 7

1шт.

2

9604631

SPRING CLIP

2шт.

3

9604627

STRAP

3шт.

4

9604628

STRAP

Back-Up

3шт.

5

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

6

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

12шт.

7

280129

NUT,1/4"-20

6шт.

8

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

26шт.

9

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

SAE, 5/16"

31шт.

10

145458

SERRATED NUT,5/16"-18 GR 5 ZND

31шт.

11

86627177

HOOD

1шт.

12

86526613

LATCH

1шт.

13

86628837

SPRING,Compression, 23mm OD x 57.15mm L

2шт.

14

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

15

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3шт.

16

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.

17

86503931

SKIRT

RH, Rubber Includes: Ref. 3 - 7 & 18

1шт.

18

9604626

RING

1шт.

19

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

20

9626558

FLANGE NUT,Flg, 1/4"-20

2шт.

21

86639644

SHIELD

Includes: ef. 49, 50, & 51

1шт.

22

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

2шт.

23

685896

WASHER

Nylon, 1/2"

2шт.

24

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.

25

29840

SPRING,Compression, 11.91mm OD x 25.4mm L

1шт.

26

86627069

STRAP

1шт.

27

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

1шт.

28

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.

29

9823743

FLANGE NUT,Flg, 5/16"-18

1шт.

30

86543684

DEFLECTOR

2шт.

31

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

12шт.

32

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

33

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

6шт.

34

86543457

DEFLECTOR

RH

1шт.

35

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

36

86583511

SHEET,Reprocessed HDPE

Stone Guard

1шт.

37

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.

38

276222

SPRING

1шт.

39

87048977

TAILGATE

1шт.

40

84075368

WASHER,35.7mm ID x 51mm OD x 3.5mm Thk

4/ARшт.

41

86582727

CLIP

7шт.

42

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

4/ARшт.

43

86543000

HANDLE

1шт.

44

698486

HANDLE GRIP

1шт.

45

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1шт.

46

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

1шт.

47

285505

SPACER

1шт.

48

86570628

HEX SOC SCREW,1/2" - 13 x 2"

1шт.

49

86628571

WARNING DECAL

1шт.

50

86611825

WARNING DECAL

Warning

1шт.

51

80772110

WARNING DECAL

1шт.
