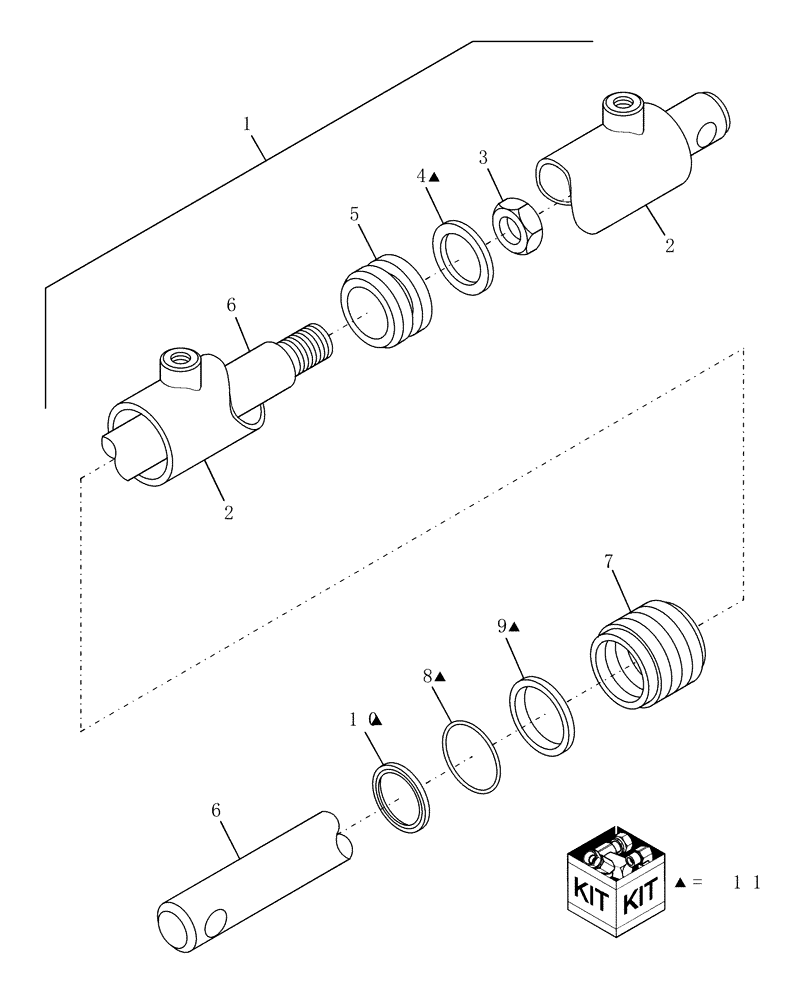

Запчасти Case IH DC101F (07.03) - HYDRAULIC CYLINDER, LIFT, SLAVE (07) - HYDRAULICS

1

87018039

HYDRAULIC CYLINDER,28.7mm Rod, 201.17mm Stroke

Monarch, Lift, Slave

1шт.

1

87018039R

REMAN-HYD CYLINDER

DC101F 8 DISC FLAIL MOWER CONDITIONER, Monarch, Lift, Slave (8/08-)

1шт.

1

87018039C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

280724

LOCK NUT,3/4" - 16

1шт.

4

86553483

SEAL

3-Piece, Piston

1шт.

5

87026074

PISTON

1шт.

6

87026075

PISTON ROD

1шт.

7

87026073

HEAD

1шт.

8

238-6224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

9

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Backup, 1.772" ID x .043" Thk

1шт.

10

128406

SEAL,28.57mm ID x 41.45mm OD x 6.35mm Thk

Rod Wiper

1шт.

11

87025444

SEAL KIT

Kit

1шт.
