(01.05) - SECONDARY PTO W/FRICTION OVERRIDING CLUTCH

Запчасти Case IH DC101F (01.05) - SECONDARY PTO W/FRICTION OVERRIDING CLUTCH (03) - MAIN GEARBOX

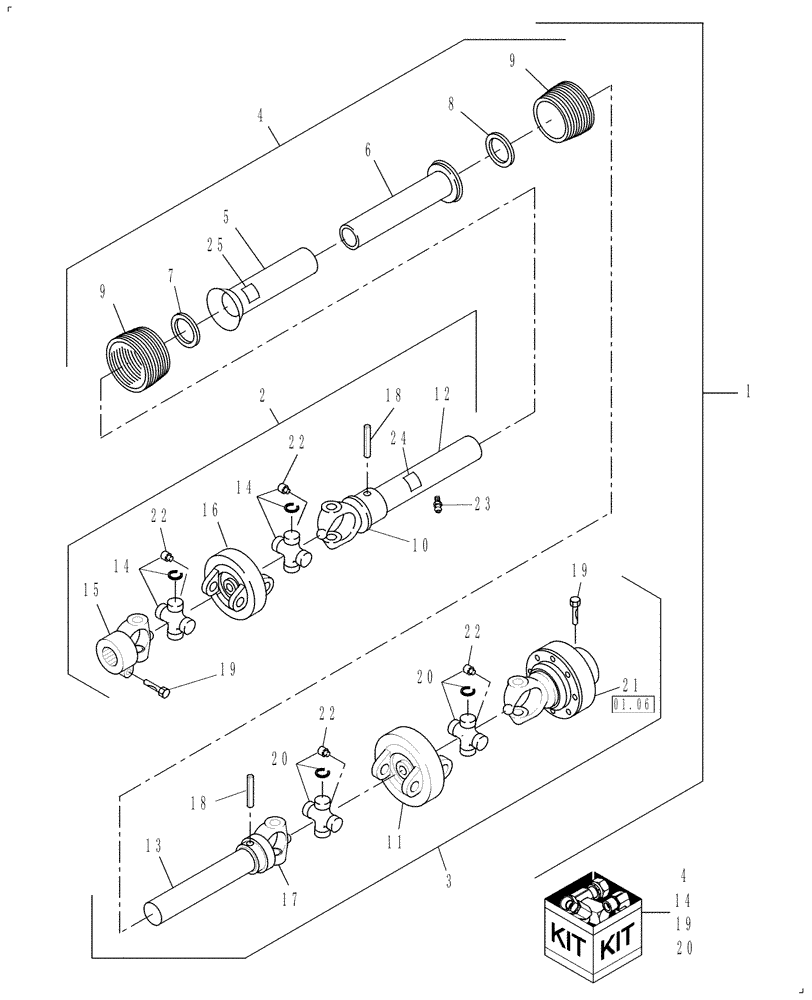

Схема запчастей Case IH DC101F - (01.05) - SECONDARY PTO W/FRICTION OVERRIDING CLUTCH (03) - MAIN GEARBOX
14
19
24
25
11
12
22
01.06
15
1
7
13
14
16
20
20
20
10
4
17
19
22
8
22
2
19
5
4
21
22
9
6
14
3
18
23
9
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

0C

ORDER COMPONENTS

PTO, Secondary W/ Overriding Clutch

1шт.

2

87558238

FRONT PTO ASSY

Includes: Ref. 10, 12, 14 Thru 16, 18, 19, & Plastic Shielding

1шт.

3

87558236

REAR PTO ASSY

Includes: Ref. 11, 13, 17 Thru 21, & Plastic Shielding

1шт.

4

87558244

SHIELD

Set, Includes: Ref. 5 Thru 9

1шт.

5

NSS

NOT SOLD SEPARAT

Shield, Outer

1шт.

6

NSS

NOT SOLD SEPARAT

Shield, Inner

6шт.

7

87517831

BEARING COVER,89.4 mm ID x 132 mm OD x 12 mm

Bearing

1шт.

8

86979196

BEARING,86mm ID x 132mm OD x 12mm H

Bearing

1шт.

9

NSS

NOT SOLD SEPARAT

Bell

2шт.

10

87558315

YOKE,66 mm ID x 117 mm L

Tube Yoke, Outer

1шт.

11

87558243

HOUSING

Center

1шт.

12

87558245

TUBE,1548 mm L

Outer

1шт.

13

87564842

TUBE,47.5 mm OD x 1560 mm L

Inner

1шт.

14

87565739

U-JOINT SPIDER

Kit, Cross, Includes: Snap Ring & Lube Fitting

2шт.

15

87558239

YOKE

Includes: Ref. 19

1шт.

16

87558241

HOUSING

Center

1шт.

17

87558242

YOKE,58.5 mm ID x 105 mm L

Tube, Inner

1шт.

18

87517826

ROLL PIN,10.5mm OD x 95mm L

2шт.

19

86625865

KIT

Kit

2шт.

20

87558240

U-JOINT SPIDER,30.2mm Cap Dia, 106mm L, Grease-able

Kit, Cross, Includes: Snap Ring & Lube Fitting

2шт.

21

87565192

PTO CLUTCH

1шт.

22

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

23

87012758

LUBE NIPPLE

LUBRICATOR

2шт.

24

849472

DANGER DECAL

1шт.

25

849471

DANGER DECAL

1шт.
