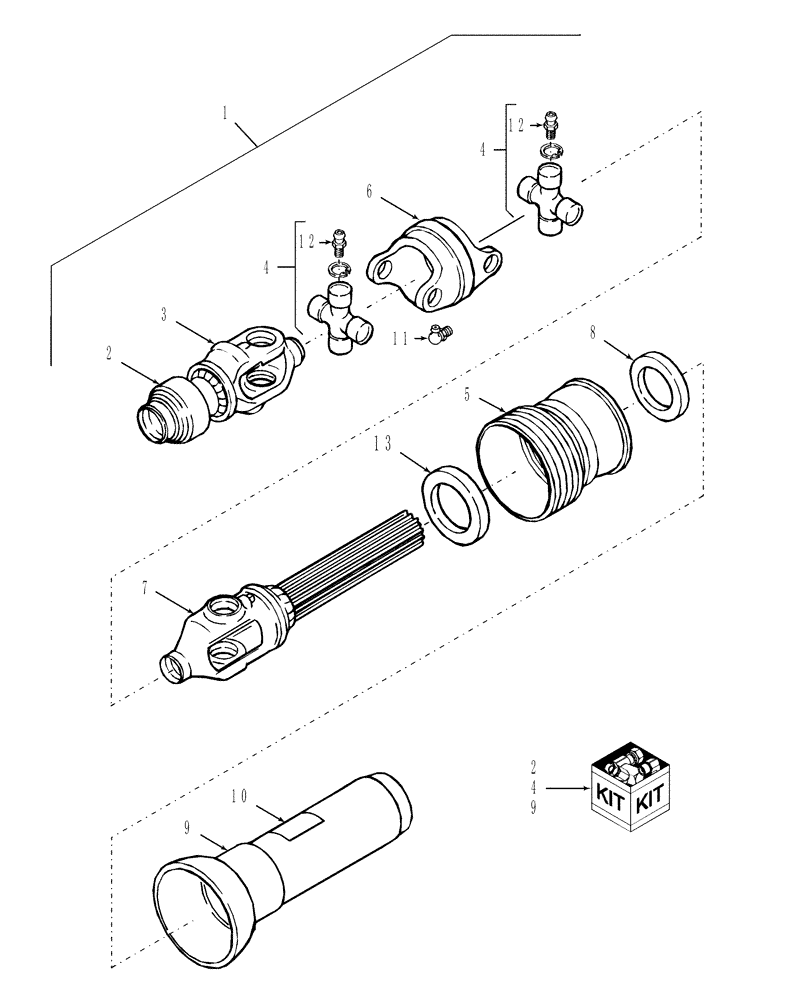

Запчасти Case IH DC101F (01.01) - PRIMARY PTO, FRONT HALF, 540 RPM (03) - MAIN GEARBOX

1

87558205

FRONT PTO ASSY

PTO Assy, Front

1шт.

2

87558192

REPAIR KIT

Includes: (1) Coil Spring, (1) Collar (3) Balls, (1) Snap Ring

1шт.

3

87558204

YOKE

Yoke, Auto Lock

1шт.

4

87517823

BEARING ASSY

2шт.

5

NSS

NOT SOLD SEPARAT

Shield Extension

1шт.

6

87558197

HOUSING

Housing, CV, Center

1шт.

7

87558203

YOKE

Yoke & Shaft

1шт.

8

87517831

BEARING COVER,89.4 mm ID x 132 mm OD x 12 mm

Bearing

1шт.

9

87558194

SHIELD

Shield Set; Includes: Ref.s 5, 8, 10, 13, & Inner Guard On Fig. 01.02[02]

1шт.

10

849471

DANGER DECAL

Rotating Driveline

1шт.

11

87549247

FITTING

Fitting, Lube; M8 x 1.25, 90°

1шт.

12

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

13

87517832

BEARING COVER,128.4 mm ID x 187 mm OD x 11 mm

Bearing

1шт.
