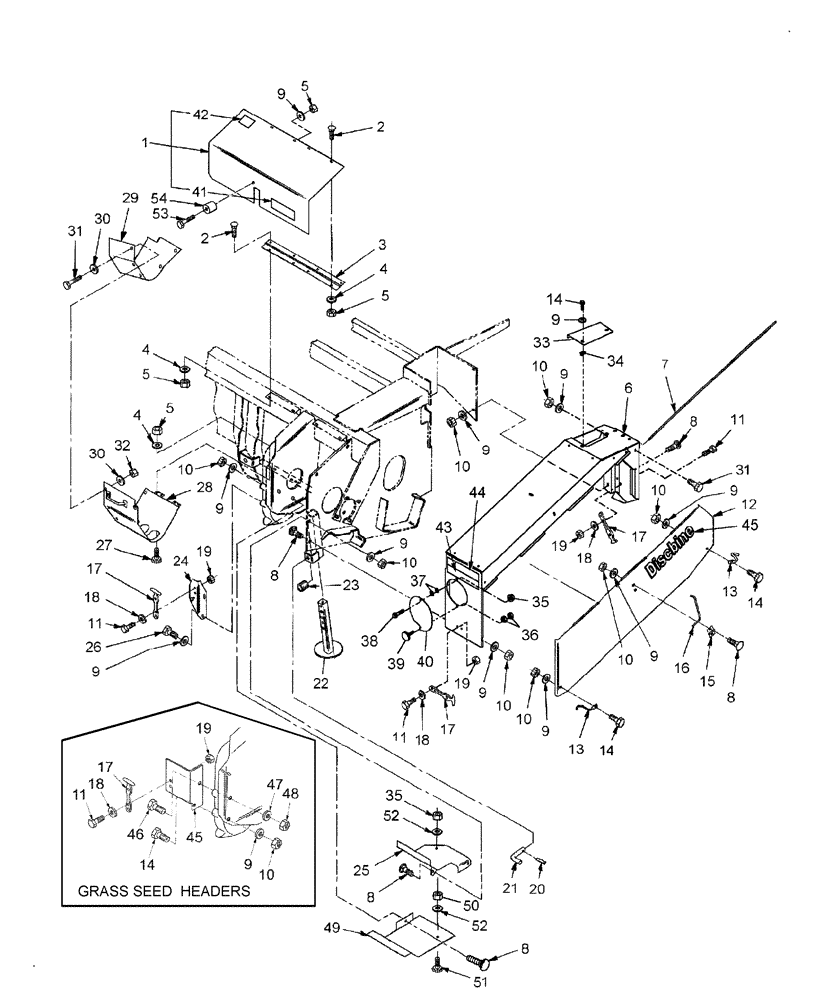

Запчасти Case IH RD182 (90.119.05) - SHIELDING REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86633333

COVER

Includes: Ref. 41 & 42, RD162

1шт.

1

87689523

PROTECTION PLATE

Includes: Ref. 41 & 42, RD182

1шт.

2

280638

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G5, Full Thd

8шт.

3

86526598

HINGE

RD162

1шт.

3

263983

HINGE

RD182

1шт.

4

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

12шт.

5

86624020

FLANGE NUT,Flg, 1/4"-20.G5

12шт.

6

86633341

SHIELD

RH

1шт.

7

9617448

PIN,6.35mm OD x 1493.52mm L

42", Cut To Length

1шт.

8

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

9шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

18шт.

10

86521605

FLANGE NUT,5/16"-18, Cl 5

14шт.

11

86544366

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

12

87524597

DOOR

1шт.

13

9801962

HOOK

2шт.

14

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

15

173195

BRACKET

1шт.

16

173194

HOOK

1шт.

17

86000448

LATCH

Rubber

3шт.

18

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

6шт.

19

280129

NUT,1/4"-20

6шт.

20

87913

LOCK PIN,3.17mm OD x 31.75mm L, Slotted

1шт.

21

86611330

PIN,16.56mm OD

Jack, 9/16" x 2-7/8"

1шт.

22

86613561

TUBE

Jack

1шт.

23

86611329

SPRING

1шт.

24

87645059

BRACKET

Not Used Grass Seed Units, See Ref 45

1шт.

25

86633332

SHIELD

RD162

1шт.

25

87489015

PROTECTION PLATE

RD182

1шт.

26

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

27

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

28

86633340

COVER ASSY

Not Used Grass Seed Units

1шт.

29

86581734

SHIELD

Not Used Grass Seed Units

1шт.

30

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

SAE, 5/16" ID x .065" Thk

12шт.

31

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

7шт.

32

9823743

FLANGE NUT,Flg, 5/16"-18

6шт.

33

86633330

COVER

1шт.

34

9626645

NUT

Speed, 5/16"-18

2шт.

35

86521609

FLANGE NUT,Flg, 3/8"-16

3шт.

36

9628503

NUT,3/8"-16, G5

2шт.

37

215588

WASHER

Nylon, 3/8"

2шт.

38

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

39

235167

KNOB

1шт.

40

86629815

DOOR

1шт.

41

9826789

DANGER DECAL,180mm x 90mm H

DANGER, Rotating Driveline

1шт.

42

86611825

WARNING DECAL

WARNING, NO STEP, English

1шт.

43

86547783

REFLECTOR,Tape, Red Orange

Fluorescent Red/Orange

1шт.

44

86547781

REFLECTOR,RED

Retroreflective Red

1шт.

45

87482072

ANGLE

1шт.

Grass Seed units.

1шт.

46

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

Grass Seed units.

1шт.

47

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

1шт.

Grass Seed units.

1шт.

48

86521607

FLANGE NUT,Flg, 1/2"-13, G5

1шт.

Grass Seed units.

1шт.

49

87489016

PROTECTION PLATE

RD182

1шт.

50

247006

RUBBER MOUNTING

RD182

2шт.

51

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

RD182

2шт.

52

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

RD182

4шт.

53

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

54

87014515

SPACER

1шт.
