Запчасти Case IH RD182 (90.119.04) - SHIELDING, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

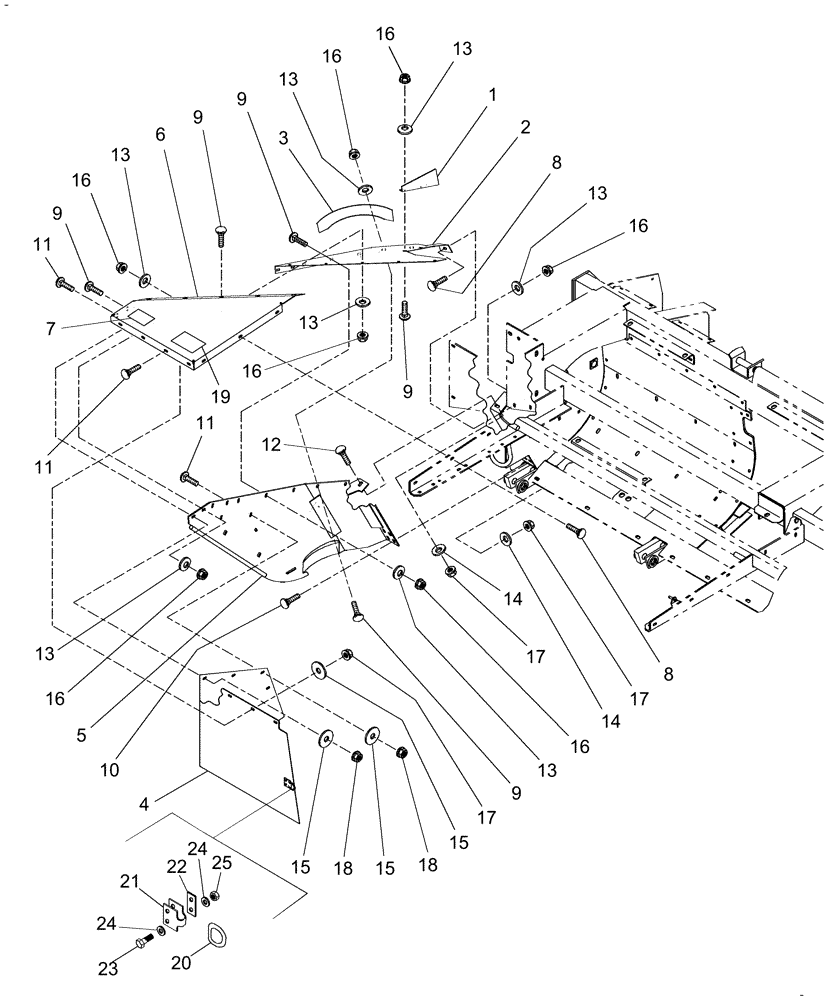

Схема запчастей Case IH RD182 - (90.119.04) - SHIELDING, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
3
16
13
18
13
20
17
7
14
2
8
11
16
16
15
10
15
5
16
6
16
15
11
16
13
14
18
16
13
8
21
24
13
9
23
11
17
12
25
9
1
22
9
9
13
4
24
19
17
13

Артикул

Название

Примечание

Количество

1

87640051

SHIELD

1шт.

2

87358423

SHEET

Includes Ref. 3

1шт.

3

80772110

WARNING DECAL

WARNING

1шт.

4

86522266

RUBBER

1шт.

5

87358430

SHEET

1шт.

6

86632224

SUPPORT

Includes Ref. 7 & 19

1шт.

7

86611825

WARNING DECAL

WARNING

1шт.

8

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

4шт.

9

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

15шт.

10

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

4шт.

11

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

8шт.

12

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

19шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

15

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

8шт.

16

86521605

FLANGE NUT,5/16"-18, Cl 5

19шт.

17

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

5шт.

18

145458

SERRATED NUT,5/16"-18 GR 5 ZND

8шт.

19

86624775

WARNING DECAL

Set Machine To Clear Obstructions, English

1шт.

20

9604626

RING

D

1шт.

21

9604627

STRAP

1шт.

22

9604628

STRAP

Backup

1шт.

23

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

24

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

25

280129

NUT,1/4"-20

2шт.

Выбрано товаров: 25
