Запчасти Case IH RD182 (90.119.01) - SHIELDING, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

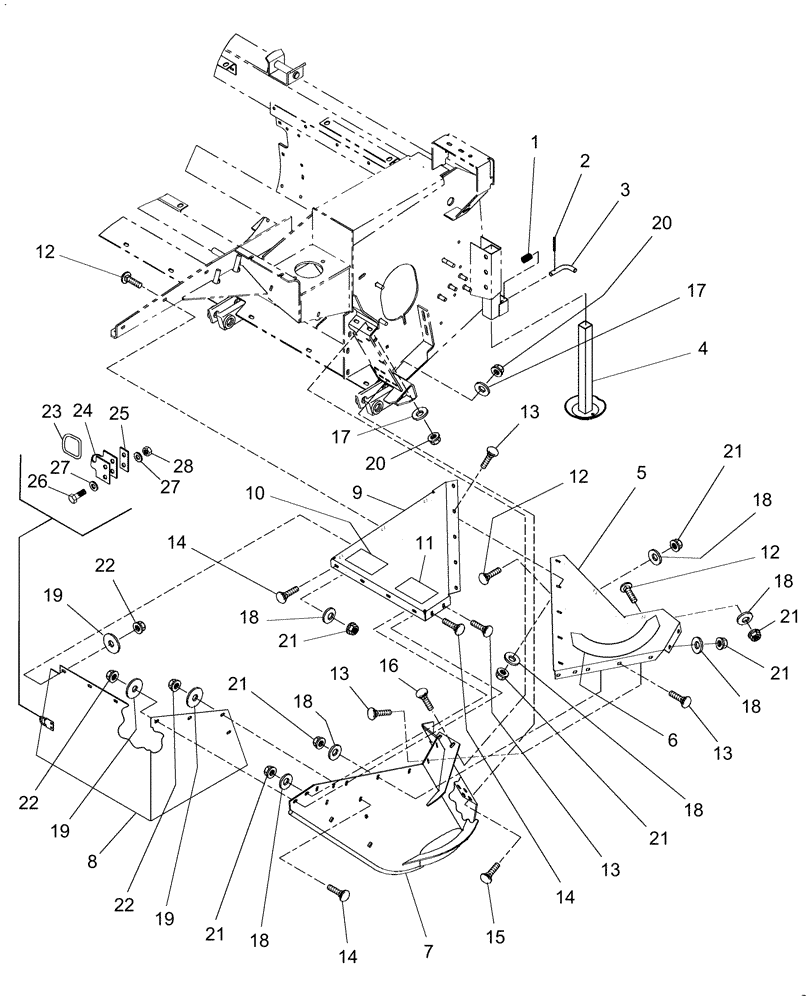

Схема запчастей Case IH RD182 - (90.119.01) - SHIELDING, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS
13
18
21
21
5
12
18
21
14
2
12
20
1
21
13
18
8
21
24
19
15
3
17
18
23
4
13
26
18
22
17
22
12
28
18
16
10
7
27
13
21
19
14
9
14
21
11
27
25
20
18
19
22
6

Артикул

Название

Примечание

Количество

1

86611329

SPRING

1шт.

2

87913

LOCK PIN,3.17mm OD x 31.75mm L, Slotted

1шт.

3

86611330

PIN,16.56mm OD

1шт.

4

86613561

TUBE

1шт.

5

87358422

SHUTTER

Includes Ref. 6

1шт.

6

80772110

WARNING DECAL

Knife Tip Path

1шт.

7

87358426

SHEET

1шт.

8

86522267

SKIRT

1шт.

9

86632223

SUPPORT

Includes Ref. 10 & 11

1шт.

10

86624775

WARNING DECAL

Machine Can Throw Stones

1шт.

11

86611825

WARNING DECAL

No Step

1шт.

12

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

5шт.

13

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

13шт.

14

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

8шт.

15

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

4шт.

16

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

18шт.

19

80577826

WASHER,8.7mm ID x 34.93mm OD x 1.94mm Thk

8шт.

20

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

6шт.

21

86521605

FLANGE NUT,5/16"-18, Cl 5

18шт.

22

145458

SERRATED NUT,5/16"-18 GR 5 ZND

8шт.

23

9604626

RING

D

1шт.

24

9604627

STRAP

1шт.

25

9604628

STRAP

Backup

1шт.

26

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

27

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

28

280129

NUT,1/4"-20

2шт.

Выбрано товаров: 28
