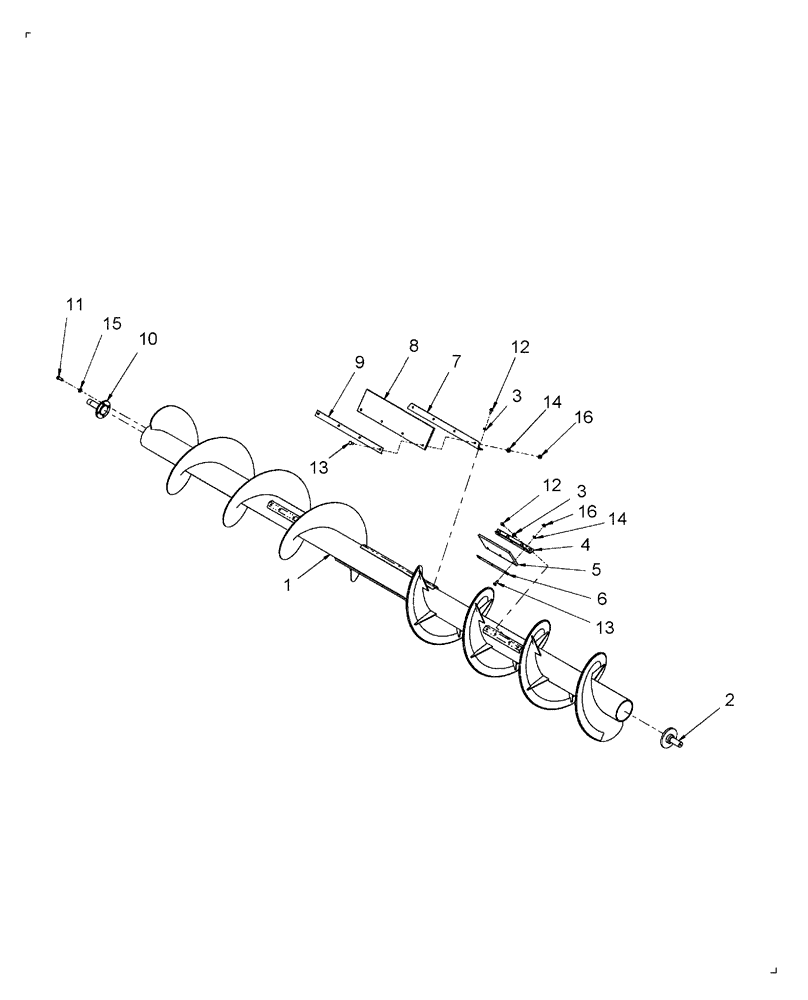

Запчасти Case IH RD182 (58.120.01[07]) - AUGER (58) - ATTACHMENTS/HEADERS

1

84124204

AUGER

Includes Ref. 2, 10, 11 & 15

1шт.

1

84215568

AUGER

Includes Ref. 2, 10, 11 & 15, Start Serial: YAG621201

1шт.

2

87582139

SHAFT

1шт.

3

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

26шт.

4

87582162

BRACKET

4шт.

5

87582158

PADDLE

4шт.

6

86632467

STRIP

4шт.

7

87582160

BRACKET

2шт.

8

614323

PADDLE

Flexible

2шт.

9

86632466

STRIP

2шт.

10

87582146

SHAFT

Shaft

1шт.

11

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

1шт.

12

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

26шт.

13

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

20шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

20шт.

15

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

1/2"

1шт.

16

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

20шт.
