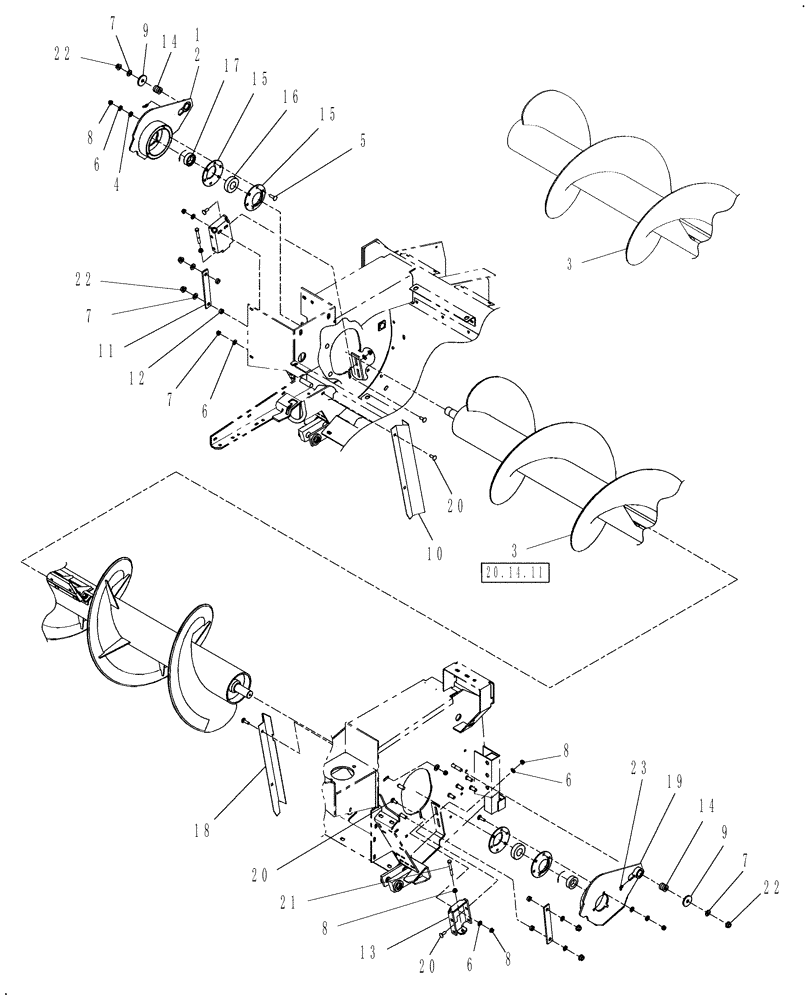

Запчасти Case IH RD182 (58.120.01[06]) - AUGER ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

87582156

ARM

RH, Includes Ref. 2

1шт.

1

84346262

ARM

RH, Includes Ref. 2

1шт.

2

54130

BUSHING,28.7mm ID x 31.84mm OD x 25.4mm L

2шт.

3

84124204

AUGER

1шт.

4

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

6шт.

5

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

6шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

7

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

6шт.

8

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

18шт.

9

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

10

87594432

DEFLECTOR

RH

1шт.

11

86625581

GUIDE

2шт.

12

25936

SPACER,13.83mm ID x 20.64mm OD x 7.94mm L

4шт.

13

86631571

BRACKET

2шт.

14

86637375

BUSHING,13.5mm ID x 28.57mm OD x 27.8mm L

2шт.

15

86635012

FLANGE

4шт.

16

47066

BALL BEARING,35mm ID x 72mm OD x 19mm W

2шт.

17

47067

RETAINER COLLAR,34.92mm ID x 56.33mm OD x 17.46mm Thk

2шт.

18

87594431

DEFLECTOR

LH

1шт.

19

87582155

ARM

LH, Includes Ref. 2

1шт.

19

84346241

ARM

LH, Includes Ref. 2

1шт.

20

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

10шт.

21

280626

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

2шт.

22

86521607

FLANGE NUT,Flg, 1/2"-13, G5

6шт.

23

80721

LUBE NIPPLE,1/4"-28 x 45 Degree

2шт.
